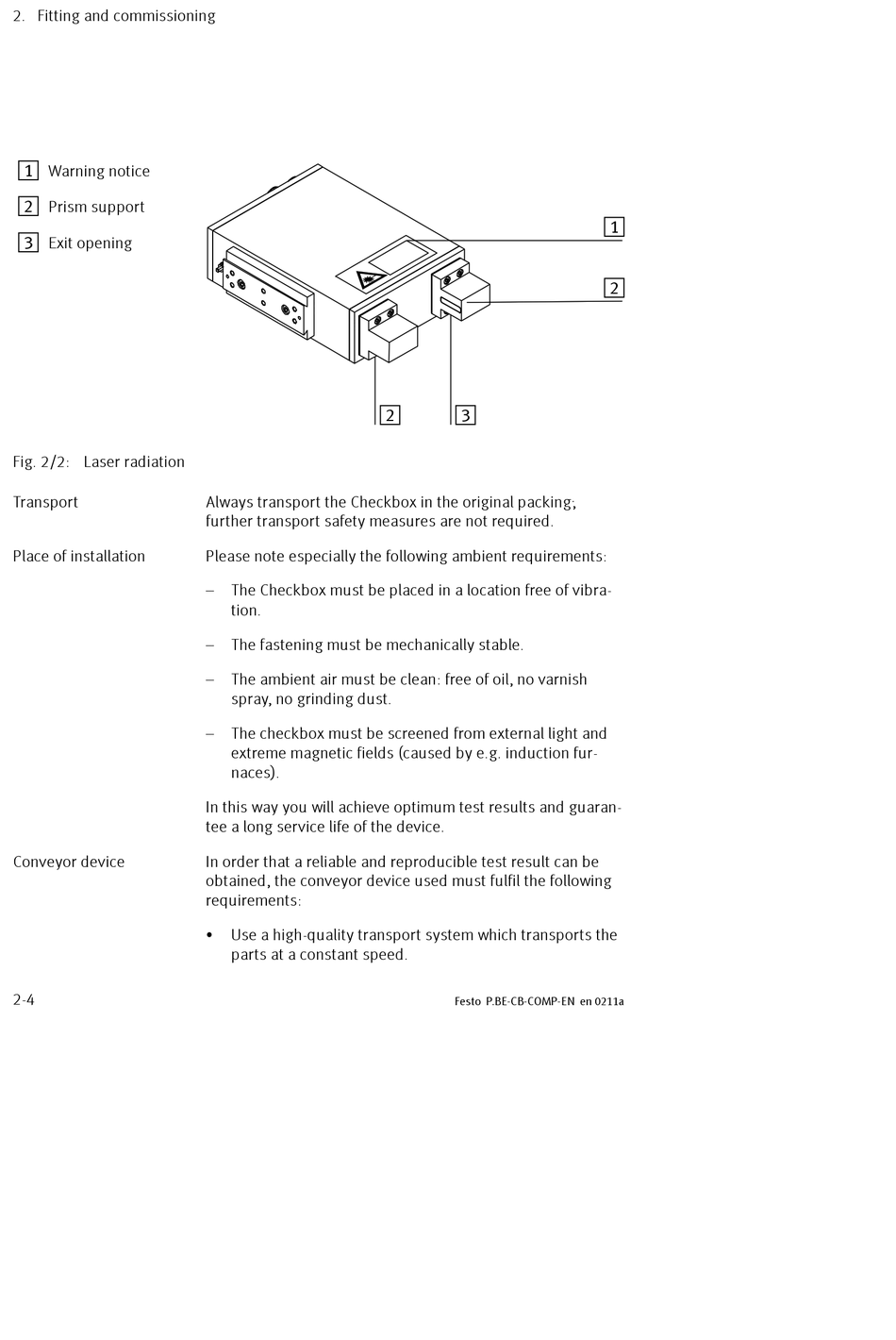

Festo Checkbox Compact CHB-C-C Manual page 32

2. Fitting and commissioning
1 Warning notice
2 Prism support
3
Exit opening
Fig. 2/2: Laser radiation
Transport
Place of installation
Conveyor device
2-4
Always transport the Checkbox in the original packing;
further transport safety measures are not required.
Please note especially the following ambient requirements:
– The Checkbox must be placed in a location free of vibra-
tion.
– The fastening must be mechanically stable.
– The ambient air must be clean: free of oil, no varnish
spray, no grinding dust.
– The checkbox must be screened from external light and
extreme magnetic fields (caused by e.g. induction fur-
naces).
In this way you will achieve optimum test results and guaran-
tee a long service life of the device.
In order that a reliable and reproducible test result can be
obtained, the conveyor device used must fulfil the following
requirements:
Use a high-quality transport system which transports the
S
parts at a constant speed.
2 3
