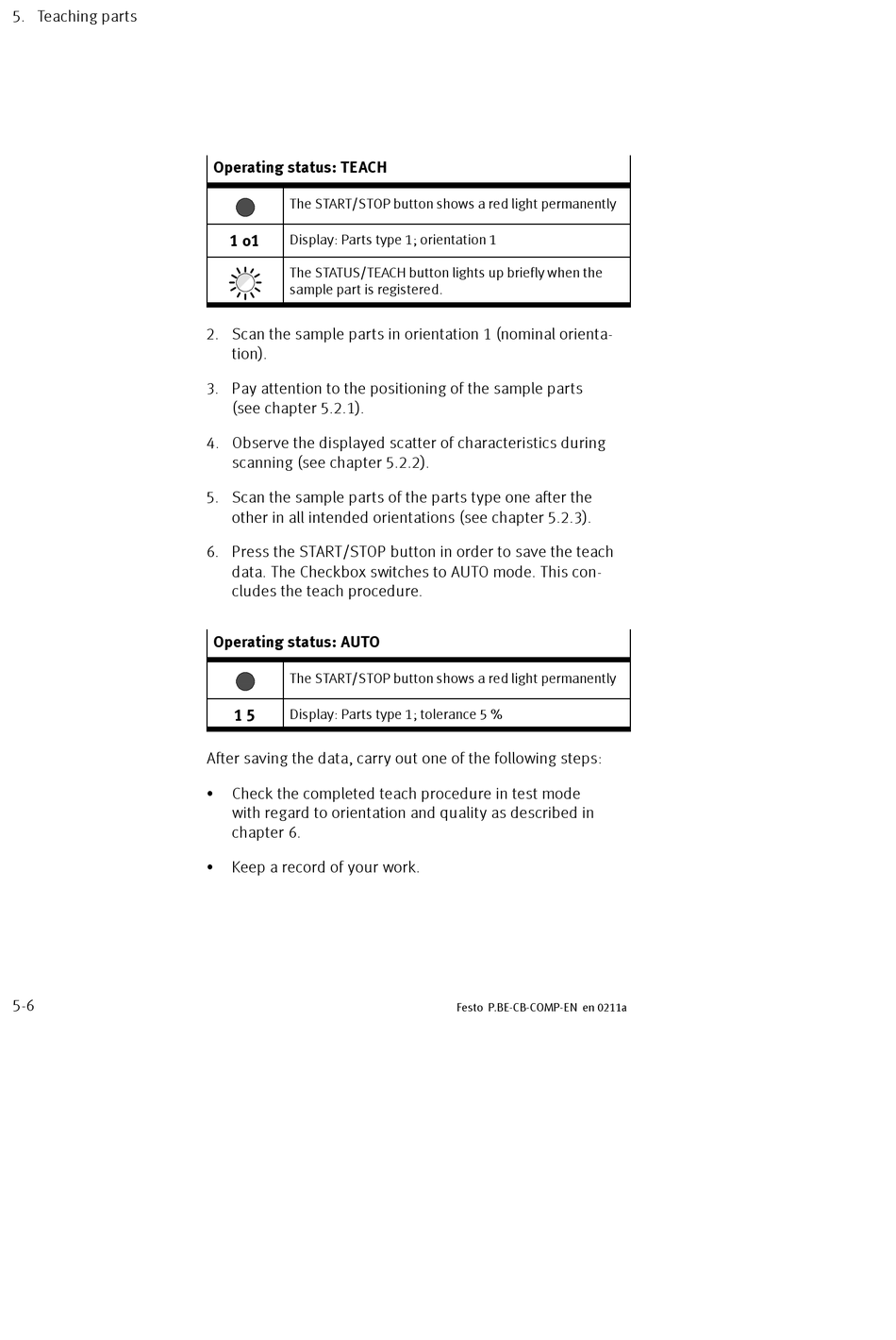

5. Teaching parts
5-6
Operating status: TEACH
The START/STOP button shows a red light permanently
1 o1 Display: Parts type 1; orientation 1
The STATUS/TEACH button lights up briefly when the
sample part is registered.
2. Scan the sample parts in orientation 1 (nominal orienta-
tion).
3. Pay attention to the positioning of the sample parts
(see chapter 5.2.1).
4. Observe the displayed scatter of characteristics during
scanning (see chapter 5.2.2).
5. Scan the sample parts of the parts type one after the
other in all intended orientations (see chapter 5.2.3).
6. Press the START/STOP button in order to save the teach
data. The Checkbox switches to AUTO mode. This con-
cludes the teach procedure.
Operating status: AUTO
The START/STOP button shows a red light permanently
1 5
Display: Parts type 1; tolerance 5 %
After saving the data, carry out one of the following steps:
Check the completed teach procedure in test mode
S
with regard to orientation and quality as described in
chapter 6.
Keep a record of your work.
S
