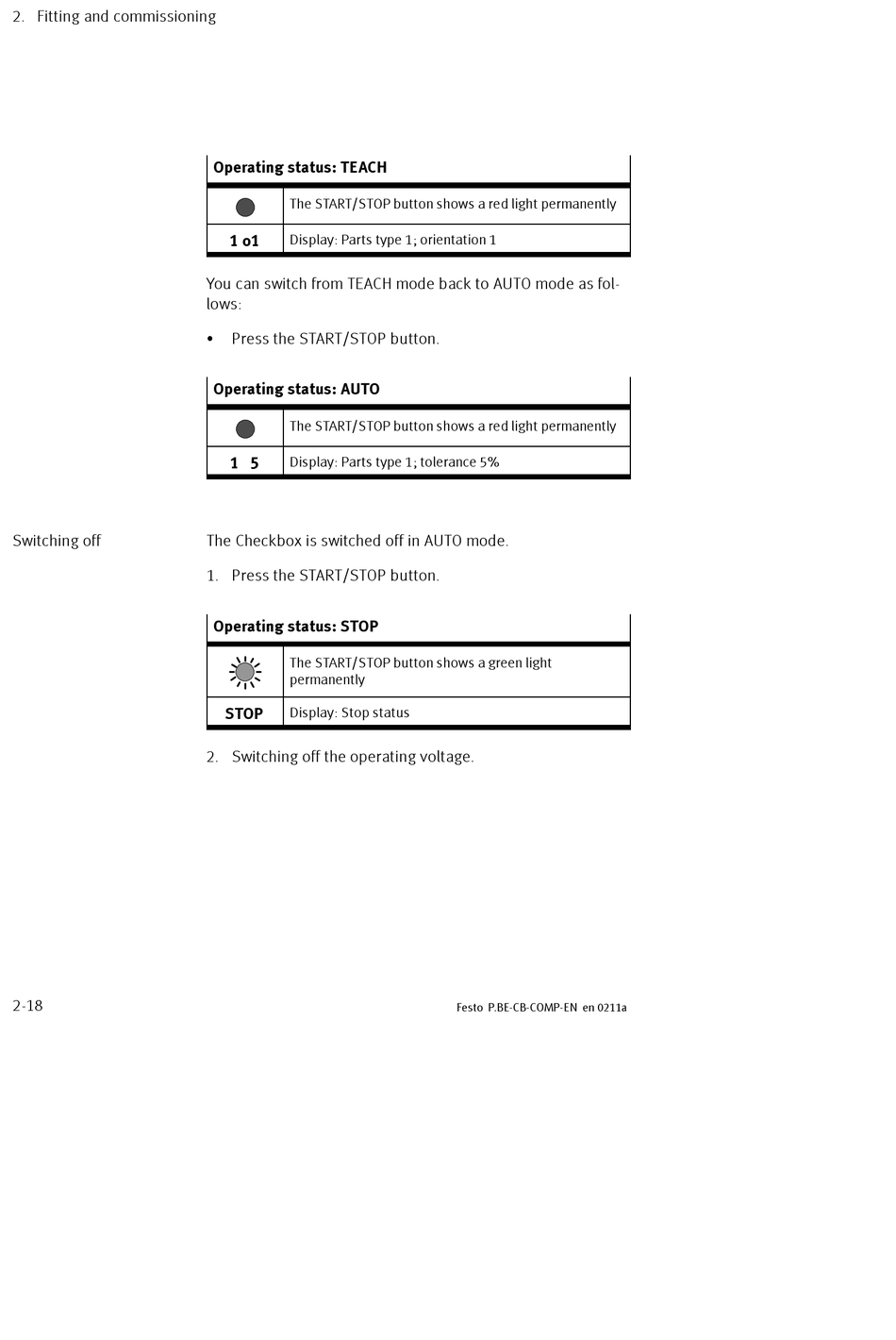

2. Fitting and commissioning
Switching off
2-18
Operating status: TEACH
The START/STOP button shows a red light permanently
1 o1
Display: Parts type 1; orientation 1
You can switch from TEACH mode back to AUTO mode as fol-
lows:
Press the START/STOP button.
S
Operating status: AUTO
The START/STOP button shows a red light permanently
1 5
Display: Parts type 1; tolerance 5%
The Checkbox is switched off in AUTO mode.
1. Press the START/STOP button.
Operating status: STOP
The START/STOP button shows a green light
permanently
STOP
Display: Stop status
2. Switching off the operating voltage.
Festo P.BE-CB-COMP-EN en 0211a
