2. Fitting and commissioning
Space required
Fastening
Festo P.BE-CB-COMP-EN en 0211a
Ensure that the parts lie in a stable position, e.g. by
S
means of mechanical devices.
Ensure also that the parts are transferred from the con-
S
veyor device to the buffer zone of the subsequent ma-
chine (e.g. drop pipe, slide, shaker) by means of mechan-
ical devices.
Please observe the space required for mounting the Check-
box. The dimensions of the Checkbox and weight specifica-
tions can be found in chapter A5.
There is a fitting profile with a dovetail guide (Fig. 2/4) on the
side of the Checkbox. An appropriate connecting kit (type
HMSV-12, order no. 177 658) is available from Festo as an
accessory.
1
2
1 Fitting profile
2 Dovetail elements

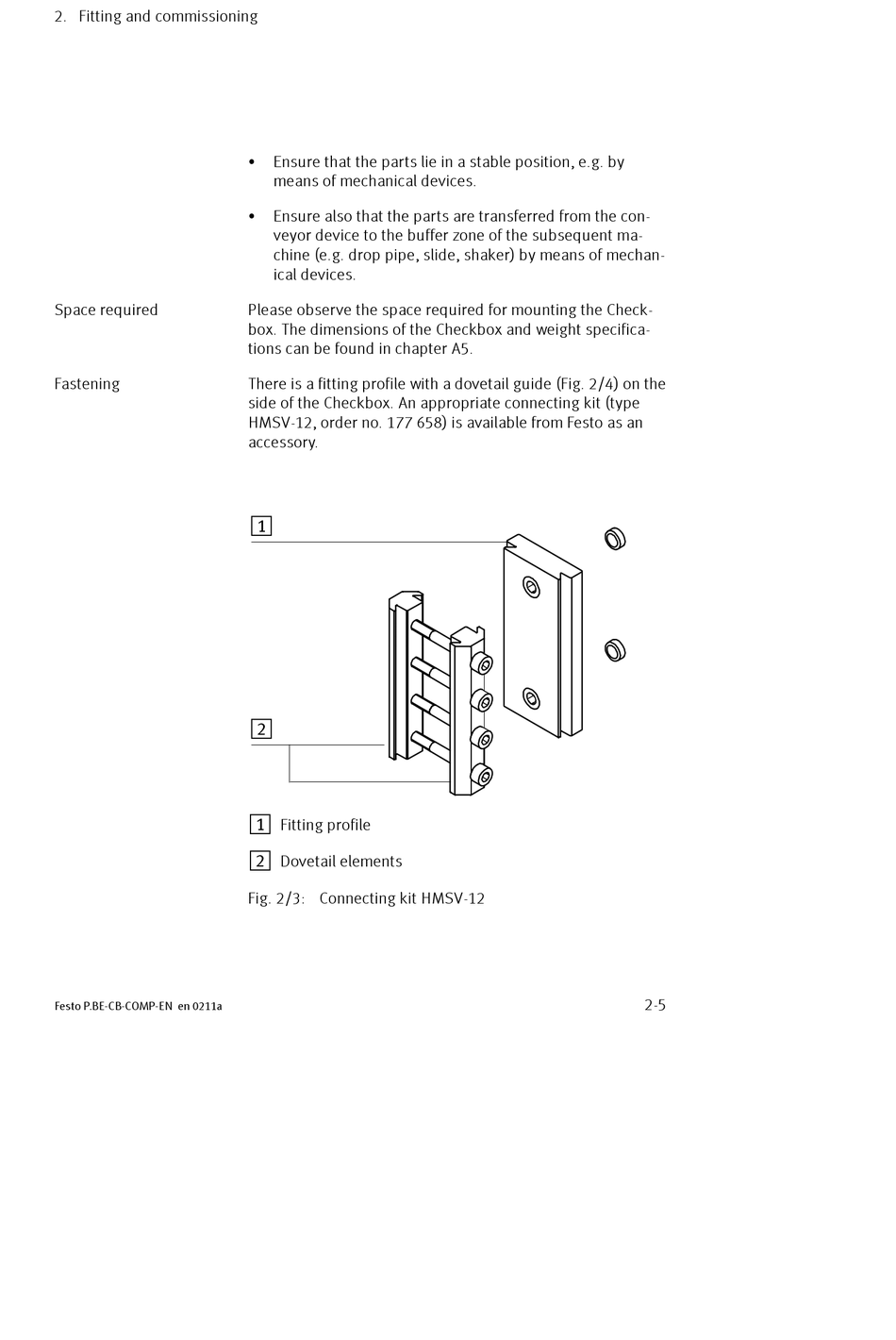

Fig. 2/3: Connecting kit HMSV-12
2-5
