Using the Mix Log
representation of the moisture variation throughout the mix cycle. It provides a quick way of
identifying the degree of homogeneity at any point during the mix and allows optimisation of the
cycle time by seeing areas of homogeneity, for example at the end of the dry and wet mixes, where
the mix times can be reduced without compromising the final mix.
The mix details at the bottom of the screen contain a list of points recorded during the batch and
the amount of water added by the controller at that point in the batch.
It is possible to view any significant actions in the mix by pressing the left and right scroll buttons.
66 Hydro-Control VI Operators Guide HD0456 Rev 1.7.1

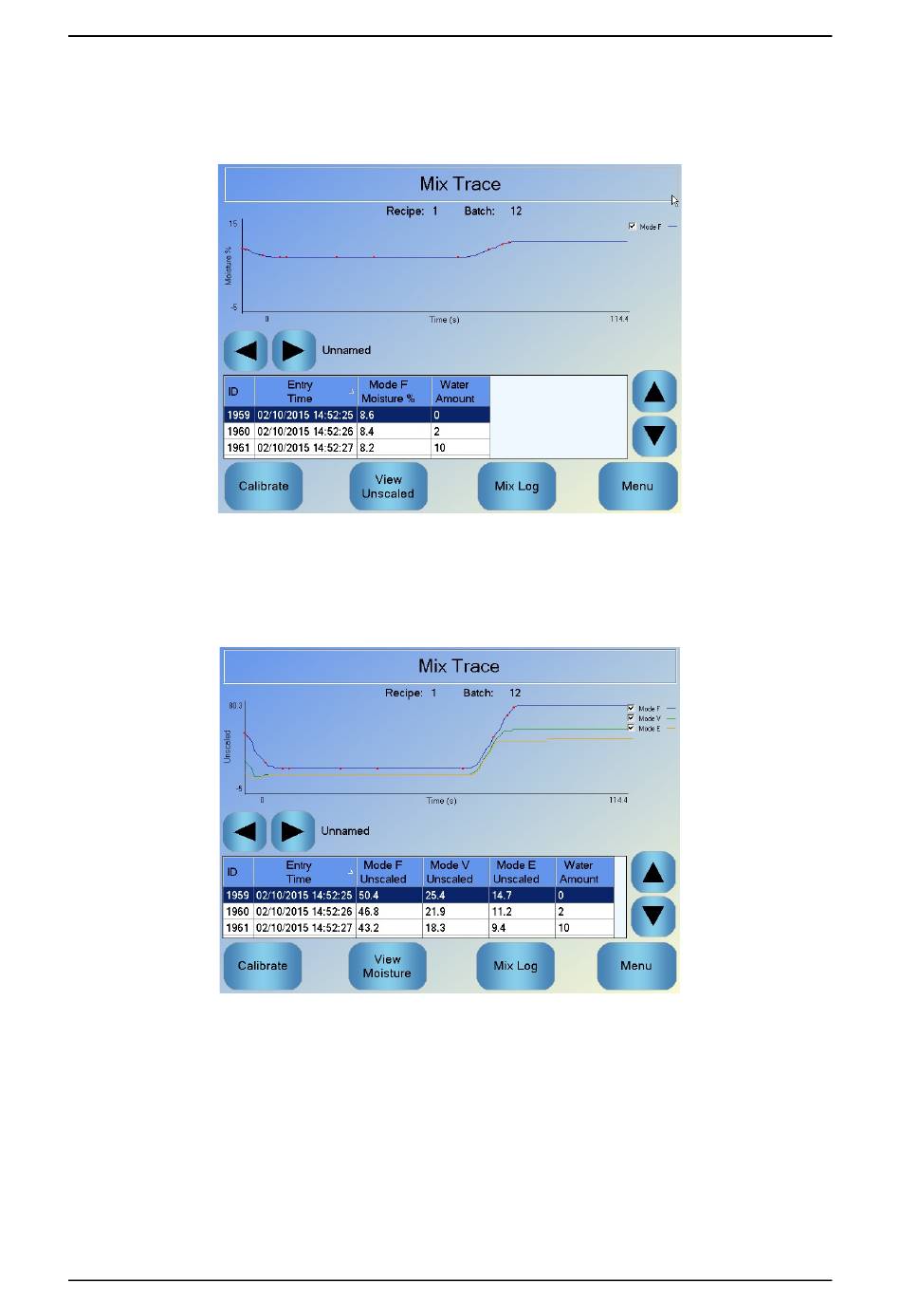

Figure 33: The Mix Trace Screen (Moisture%)

Figure 34: The Mix Trace Screen (Unscaled)

Chapter 10
