Chapter 10

1 Introduction

The mix log records information on mix cycles that have been run with the Hydro-Control VI. The
following information about each batch is stored:
A log of the sensor reading taken once per second during the mix cycle.
Details of the quantity of water calculated and the parameters used to calculate it.
A log of the actual water dosed into the batch.
This enables the following functionality within the mix log pages:
Calibration of recipes from a previous batch.
Analysis of previous batches for diagnostic and quality assurance.
View of the mix log trace to analyse homogeneity during the mix times.

2 Accessing the Mix Log

The mix log is accessed on the Hydro-Control itself from the Overview Screen by pressing the
Menu
button
Display
Group
Selection
The Mix Log screen contains the batch details of all the mixes that have been run. Additional data
can be accessed by scrolling the screen using the left and right arrow keys. Filter options may also
be used to filter the number of mixes shown and the Display Group control may be used to filter
the data shown for each mix by date, recipe or alarm type.
The filter options can be used to refine the logs displayed by date, recipe or Alarm type.
The Display Unscaled button can be used to toggle between moisture % values and unscaled
values. The moisture % values have been derived from moisture % target set at the time of
making the batch.
and then the Mix Log button

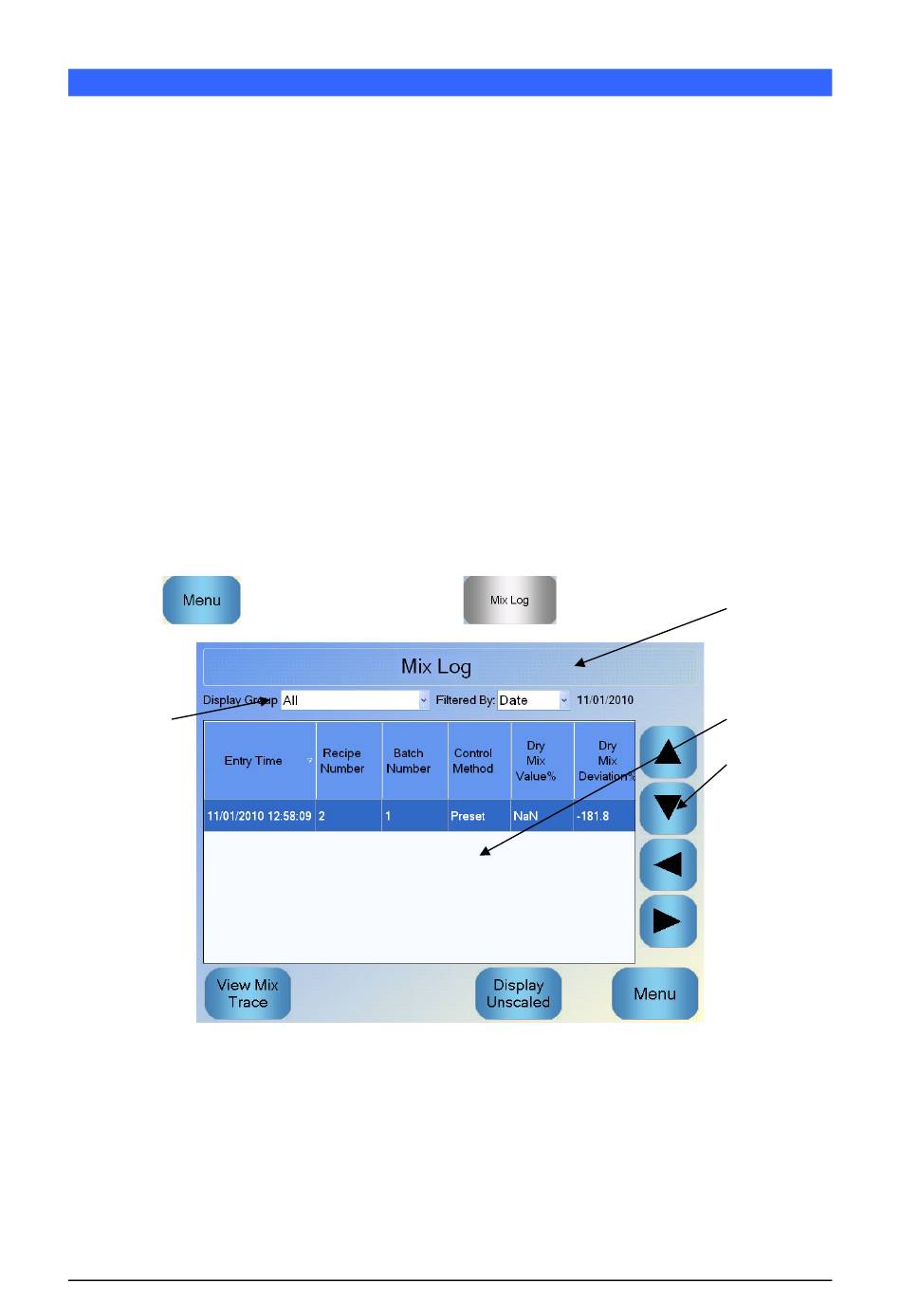

Figure 32: The Mix Log

Using the Mix Log
.
Hydro-Control VI Operators Guide HD0456 Rev 1.7.1
Filter
options
Mix Log Data
Navigation
scroll
buttons
61
