6. Indicator bar showing the Recipe moisture target and current moisture value. When in air
'EMPTY' is indicated.
7. Menu, selects the Main Menu screen allowing navigation to all other functions.
8. Main control buttons for controlling the mix cycle. Start, Pause, Abort and Accept Alarm.
9. Progress bars show which phase the current batch is in and the progress bars will update
with recipe parameters that are currently being used. The Mix Time indicator shows the
time that the current batch has been running.
10. This area has the current recipe name and phase at the top and a graph which shows the
last 100 seconds of moisture value.

3 User Login / Logout

There are three levels of access in the Hydro-Control VI:
Plant Operator –Access to the Overview Screen only. Chapter 3 describes Plant Operator
•
controls.
Supervisor – Access barred to setting up user accounts, sensor configuration and system
•
parameters
• Administrator – Full access rights

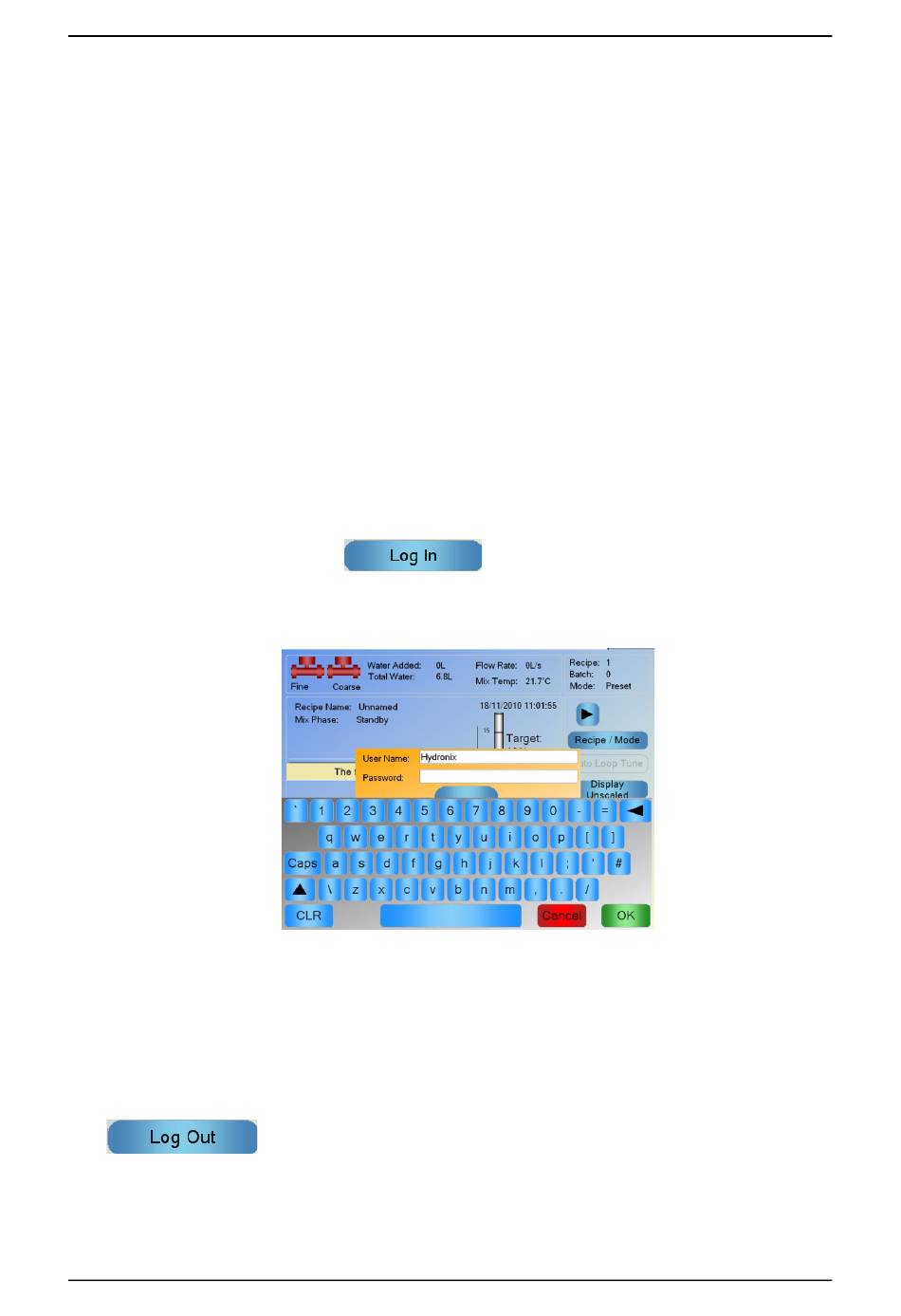

To Login from the Overview screen:
1. Press the Log In Button
2. Enter the user name and password by pressing each textbox and typing using the onscreen
keyboard
3. Press OK. If the login attempt is successful the Menu button in the bottom right hand corner
of the screen will become enabled.
Once a user has logged in, the Log In button on the Overview Screen will change to a Log Out
button.
When a user has finished using the Hydro-Control VI, they should press the Log Out button
in the bottom right hand corner will be greyed out, indicating that it is disabled.
14 Hydro-Control VI Operators Guide HD0456 Rev 1.7.1
. The Log Out button will revert back to the Log In button and the menu button
