System Parameters
This button enables configuration of the system parameters, including water meter and valve
setup, AUTO Mode and Auto-track parameters, system time and date and alarm configuration.
It also displays the system diagnostic page which shows system temperatures and voltages.
Remote Communications
The remote communications screen displays diagnostic information regarding the RS232
communications port. Configuration instructions are detailed in the installation guide.

5 The Recipe Overview

Recipes are created, edited and deleted in the recipe editor which is accessed by pressing the
Menu button and then pressing the Recipe Overview button. A list of available recipes is then
displayed and can be selected by pressing on them. To scroll around the list, you can use the up
and down arrows (1) on the right hand side of the screen. You can also use the Find Recipe button
(2) to go directly to a known recipe number.
To create a recipe, press the Create Recipe button (3) and this will display a wizard which will take
you through the steps needed to create a basic recipe. This process is covered in further detail in
Chapter 7.
To edit a recipe select it by highlighting it in the list, either by using the arrows or by pressing on
the recipe, and then press the Edit Recipe button (4).
To delete a recipe, select it in the list and then press the Delete Recipe button (5)
To select the next recipe to be run, change the next recipe parameter (6).
16
Hydro-Control VI Operators Guide HD0456 Rev 1.7.1

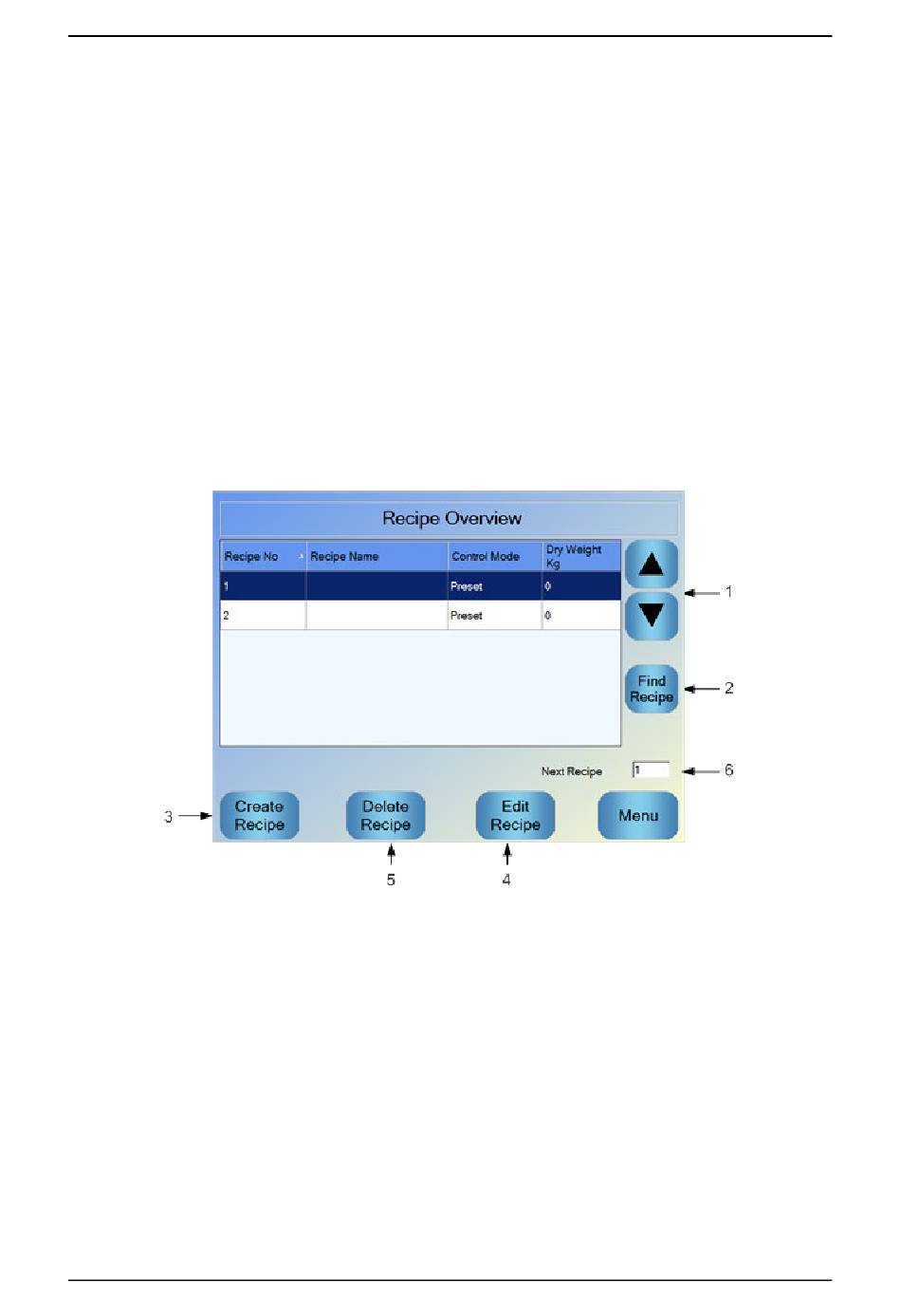

Figure 4: The Recipe Overview Screen
