Chapter 8

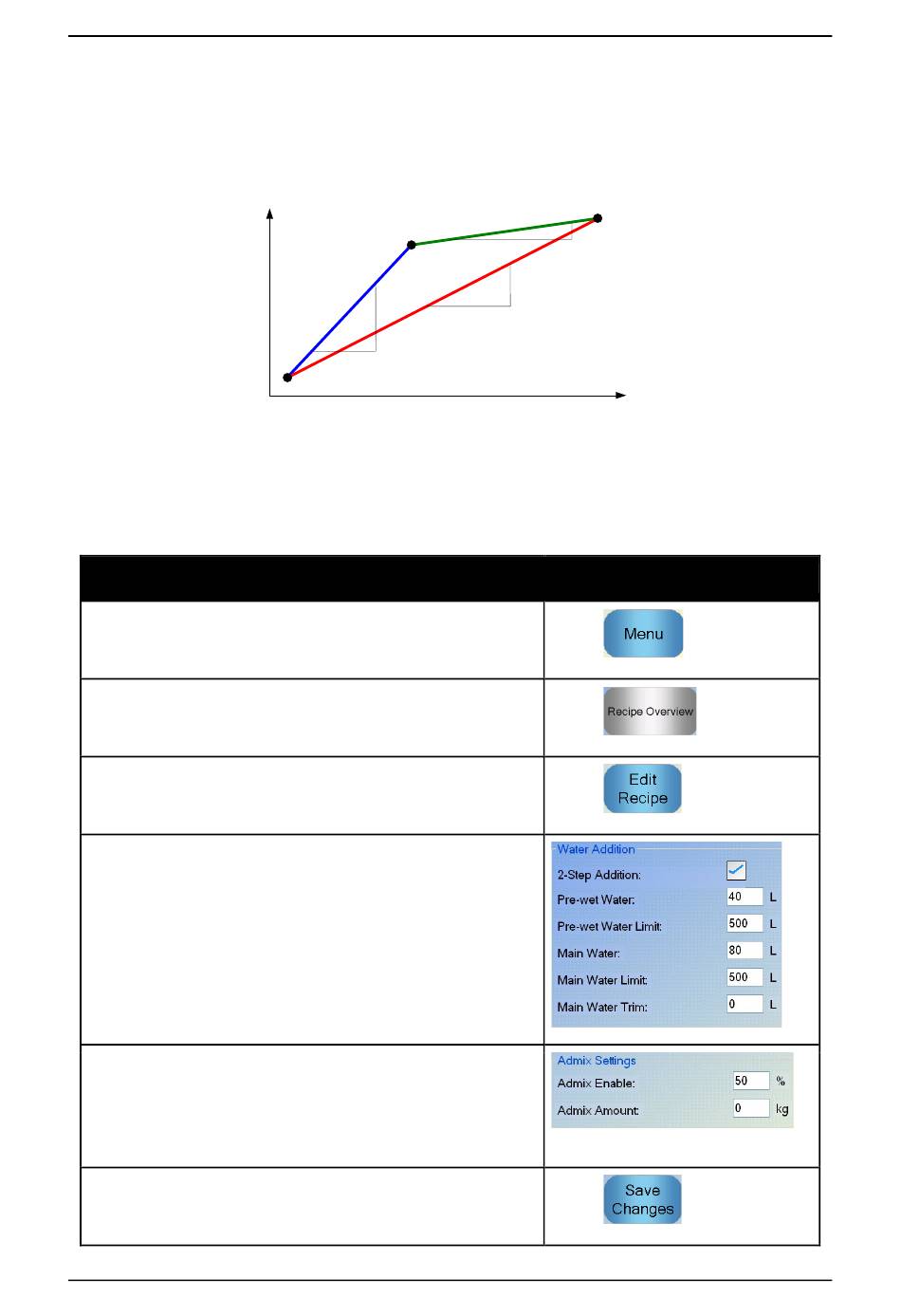

Figure 28 shows the 2-Step Water Addition calibration points that are taken from the cycle
shown in Figure 27. The line from point A to point C is used for the water calculation when in
CALC Mode. The moisture value shown before admixture addition is based on the A to B line
and after the admixture addition the B to C line is used.
Moisture

Figure 28: The calibration lines from the 2-step preset mode cycle

Setting up the 2-Step Water Addition
4.2
This procedure requires that you have already set up the basic recipe as per Chapter 7.
Task
Press the Menu button.
Press the Recipe Overview button.
Select the recipe to set up and then press the Edit Recipe
button.
On Page 1, in the Water Addition section, select the box '2
Step Addition.'
On Page 2 go to the Admix Settings and set the Admix
Enable to the point in the main water addition that you require
the admixtures to be introduced. If required the amount of
Admixture can be entered here and will be reported in the Mix
Log.
Save the recipe changes, then press menu and then
overview to return to the Overview Screen
B
A
Using Moisture Control
C
Unscaled
Action
Press
Press
Press
Press
Hydro-Control VI Operators Guide HD0456 Rev 1.7.1
53
