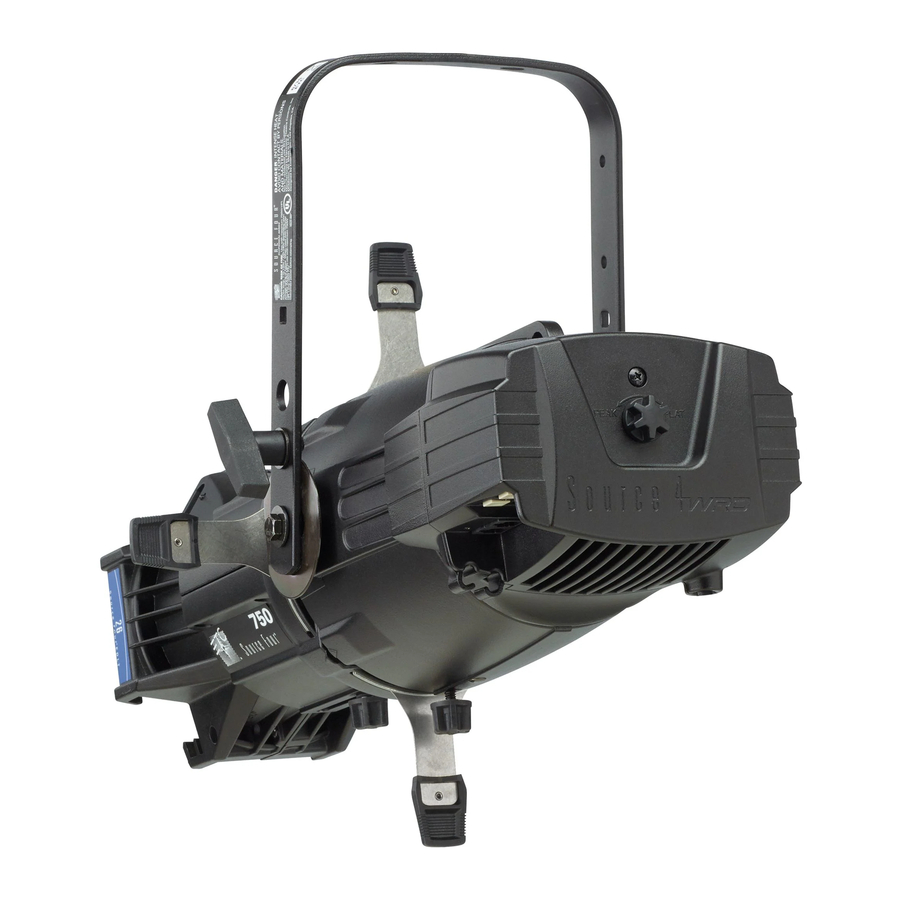

ETC Source 4WRD Installation And User Manual
Hpl to led retrofit
Hide thumbs
Also See for Source 4WRD:
- Installation and user manual (32 pages) ,
- Quick manual (9 pages) ,
- Installation and user manual (28 pages)
Related Manuals for ETC Source 4WRD
Summary of Contents for ETC Source 4WRD
- Page 1 ™ Source 4 HPL to LED Retrofit Installation and User Manual Version 1.1.0 Part Number: 7067M1200-1.1.0 Rev: C Released: 2017-07...
- Page 2 This product is protecte d by one or more of the following U.S. Patents : US 9, 261,241 and 9,273,831. ETC intends this document, whether printe d or electronic, to be provided in its entirety. This product is intended for professional use only.
-
Page 3: Table Of Contents
Color rendering and quality ....6 Contacting ETC ..... 7 Retrofit kit installation . - Page 4 Cleaning and maintenance... 15 Clean the fixture..... . . 15 Store the retrofit .
-
Page 5: Introduction
Introduction Congratulations on your purchase of the ETC Source 4 LED retrofit kit. Replacing your existing incandescent burner assembly with the Source 4 LED brings a new tool to your lighting inventory. The Source 4 ® expands the options for existing Source Four fixtures and adds a new white LED fixture to the ETC family. -
Page 6: Safety
• In addition to primary suspension, attach a safety cable (ETC Model 400SC or other approved safety cable or device) to the fixture housing. An appropriate attachment point (hole) is provided in the protruding tab on the fixture housing. - Page 7 Note: • Maximum recommended ambient operating temperature: Ta=50°C (122°F) • Maximum anticipated external surface temperature: Tmax=63°C (145°F) at Ta=50°C (122°F) • External Temperature (steady state achieved) at 25°C (77°F) ambient: 38°C (100°F) User Manual...
-
Page 8: Specifications
LEDs • 30,000 hour estimated L70 rating (life-test in progress, results pending) Optical • Compatible with all ETC Source Four lens tubes • DMX512-A compliant Control • DMX in and thru via two RJ45 connectors • AC power for line-dimmed operation •... -
Page 9: Sensor Dimmer Settings
AC level setting, set the parameters as shown below to ensure that the dimmer is out of regulated mode. ® The following tables apply to ETC Sensor control modules including CEM, CEM+, and CEM3. Note: You may need to adjust dimmer settings for optimal fixture control. -
Page 10: Color Rendering And Quality
You may need to increase the SCR Off Time from the default setting. Contact ETC for assistance in changing the SCR Off Time, or any other CEM classic, CEM+, or CEM3 settings. For the most current information on additional dimmer performance testing for both ETC and non-ETC dimmers, please visit the ETC website: etcconnect.com/Support/Articles/Dimmer-Settings-for-Use-with-Source-4wrd.aspx... -
Page 11: Contacting Etc
Contacting ETC If you are having difficulties, your most convenient resources are the references given in this user manual. To search more widely, try the ETC website at etcconnect.com. If none of these resources is sufficient, contact ETC Technical Services directly at one of the offices identified below. -
Page 12: Retrofit Kit Installation
The lamp housing is now loose and can be removed. Note: The burner assembly is no longer needed. If you would like ETC to recycle the burner assembly, contact ETC Technical Services for more information. See Contacting page... -
Page 13: Install Source 4
Install Source 4 retrofit WARNING: RISK OF FIRE OR ELECTRIC SHOCK: Install this kit only onto luminaires that have the construction features and dimensions shown in the images in this document and where the input rating of the retrofit kit does not exceed the input rating of the luminaire. -
Page 14: Fixture Installation
Attach C-clamp and safety cable The C-clamp attaches the fixture to the mounting pipe and allows you to adjust the position of the mounted fixture. ETC recommends using 1.5” schedule 40 pipe. Tightly fasten the C-clamp to the yoke with the provided yoke bolt and lock washer. -
Page 15: Connect Cables
If using DMX control: Connect one RJ45 data cable for data-in and one for data-thru, as needed. • To order RJ45 to female XLR adapter, use ETC part number W6538. • To order RJ45 to male XLR adapter, use ETC part number W6539. -
Page 16: Dmx Pinout
. The display will read (Level = Full). Use the down arrow to decrease the level to a percentage of full ( = 99%, = 98%, etc.). You can set levels from 0%–100% (full). RJ45 data Up and down... -
Page 17: Error Codes
Error codes The following error codes may be seen on the Source 4 user interface. • indicates the fixture has gone into over-temperature protection. Reset the fixture to clear the code. - For DMX mode: Return the DMX control to 0. - For AC mode: Remove the fixture from power for five seconds and then restore power. -
Page 18: Adjust The Yoke Position
Adjust the yoke position Change the height position Remove the yoke locking knobs, washers, and hex bolts from either Low clearance position side of the fixture. Raise or lower the fixture to the desired position within the yoke. Reinstall the yoke’s hex bolts, washers, and locking knobs. -
Page 19: Use A Pattern
2.75" Diameter diameter patterns diameter patterns 3.70" 3.70" Note: Because the Source 4 aperture is 3 inches wide, ETC recommends using A-size patterns for maximum pattern effectiveness. Cleaning and maintenance Clean the fixture • Use oil-free canned air to clean the LED domes prior to installation and prior to storage. -
Page 20: Store The Retrofit
Store the retrofit Store with LED dome up • Store the Source 4 LED at temperatures of 5°C (41°F) or higher. • If you must store the Source 4 LED below 5°C (41°F), make sure it is in an upright position as shown to the right. -
Page 21: Clean The Reflector
Clean the reflector WARNING: Unplug the fixture before attempting to clean the reflector. To quickly clean the reflector, remove the lens tube and clean the dust from the reflector with a blast of oil-free air. You may also wipe the reflector with a clean lint-free cloth. -
Page 22: Clean 5° And 10° Polymer Lenses
Clean 5° and 10° polymer lenses To quickly clean the lenses, remove dust with a blast of oil-free air. If this is not sufficient, follow these steps. CAUTION: Handle polymer lenses by their edges only. Never rub anything dry on a polymer lens. Remove the beam focus knob at the bottom of the barrel. - Page 23 User Manual...
- Page 24 Web: etcconnect.com Copyright © 2017 Electronic Theatre Controls, Inc. All Rights Reserved. Product information and specifications subject to change. ETC intends this document to be provided in its entirety. 7067M1200-1.1.0 Rev C Released 2017-07 ...
