- Page 1 Source 4WRD HPL to LED Retrofit Installation and User Manual Version 1.1.2 Part Number: 7067M1200-1.1.2 Rev C Released: 2019-06...
- Page 2 To view a list of ETC trademarks and patents, go to etcconnect.com/ip. All other trademarks, both marked and not marked, are the property of their respective owners. ETC intends this document, whether printed or electronic, to be provided in its entirety.
-
Page 3: Table Of Contents
Remove incandescent lamp housing Install the Source 4WRD retrofit Install the fixture Attach C-clamp and safety cable Connect cables Configure the fixture RDM values Focus the fixture Set the Z-adjustment Adjust the yoke position Shape the beam Source 4WRD Installation and User Manual... - Page 4 Troubleshoot the Source 4WRD Clean and maintain the fixture Clean the fixture Store the retrofit Clean the lenses Clean the reflector Clean 5° and 10° polymer lenses Source 4WRD Installation and User Manual...
-
Page 5: Introduction

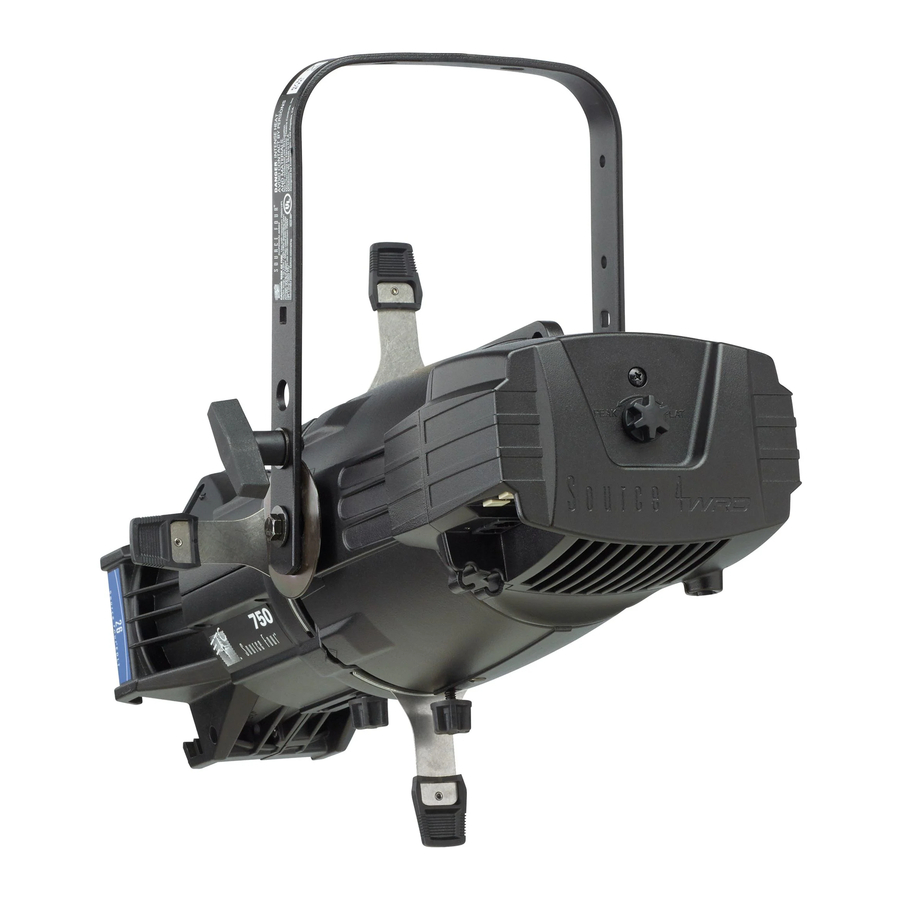

LED retrofit kit, shown installed on a Source Four fixture body The following Source 4WRD options are available in 80 CRI, 90 CRI (Gallery), and 90 CRI Daylight (Gallery) variants: Source 4WRD LED retrofit kit: Used to modify an existing Source •... -
Page 6: Help From Etc Technical Services
ETC support website at support.etcconnect.com or the main ETC website at etcconnect.com. If none of these resources are sufficient, contact ETC Technical Services directly at one of the offices identified below. Emergency service is available from all ETC offices outside of normal business hours. -
Page 7: Safety
Safety The Source 4WRD fixture is intended for professional use only. Read the entire manual before using this equipment. WARNING: Note the following safety warnings before use: Do not mount the fixture on or near a flammable surface. • Do not use this fixture with a damaged power lead. If the •... - Page 8 WARNING: Note the following safety warnings before use: The Source 4WRD LED is not user serviceable. Field • modification of the Source 4WRD LED will void your ETC warranty. Do not use the Source 4WRD fixture below 5°C (41°F). •...
- Page 9 Specifications For full product specifications, see the Source 4WRD LED datasheet at etcconnect.com. Electrical 114–125 VAC 60 Hz power input • 155 W draw at full (182 W theoretical max. draw) • Recommended two (2) fixtures per dimmed circuit (D20 module) •...
-
Page 10: Retrofit The Fixture
LED Retrofit Kit User interface and navigation buttons Wire the power connector (if needed) If you ordered a Source 4WRD retrofit without a power connector, wire the connector in accordance with all national and local electrical codes: Brown = Line •... -
Page 11: Remove Incandescent Lamp Housing
Remove the lamp housing from the fixture body. Note: The burner assembly is no longer needed. If you would like ETC to recycle the burner assembly, contact ETC Technical Services Help from ETC Technical Services on for more information. See page 2... - Page 12 Gently slide the Source 4WRD LED onto the fixture body and threaded post while guiding the LED tower into the lamp housing hole, as shown below. Take care to prevent contact between the LEDs and the reflector.
-
Page 13: Install The Fixture
Attach C-clamp and safety cable The C-clamp attaches the fixture to the mounting pipe and allows you to adjust the position of the mounted fixture. ETC recommends using 1.5 in schedule 40 pipe. Tightly fasten the C-clamp to the yoke with the provided yoke bolt and lock washer. -
Page 14: Connect Cables
Configure the fixture on page 13 WARNING: Do not use or store the Source 4WRD fixture below 5°C (41°F). When the fixture has been stored or transported in cold temperatures, allow it to warm to room temperature for a minimum of 1 hour before applying power. - Page 15 In addition to the recommended settings in the following tables, you may need to increase the SCR Off Time from the default setting. Contact ETC for assistance in changing the SCR Off Time, or any other CEM classic, CEM+, or CEM3 settings. See Help from ETC Technical Services on page 2...
- Page 16 Note: When line-dimming the fixture, performance may vary based on the control settings of the dimmer. For this reason, ETC recommends using line-dimming for level-setting or for architectural dimming. ETC recommends testing the Source 4WRD fixture on all existing dimmers that you want to use.
-
Page 17: Configure The Fixture
AC. The display will read L.FL (Level = Full). Use the down arrow to decrease the level to a percentage of full (L.99 = 99%, L.98 = 98%, etc.). You can set levels from 0%– 100% (full). Up and down... -
Page 18: Focus The Fixture
Note: The Source 4WRD PAR and PARNel optics are optimized for PEAK focus. When using the Source 4WRD LED in a Source 4WRD PAR or PARNel Fixture Body, turn the Z-adjustment knob toward PEAK until the knob becomes loose, and then tighten the Z-adjustment knob an additional quarter turn. -
Page 19: Shape The Beam
The pattern holder slot is on the top side of the barrel and in front of the shutters. It accommodates A-size, B-size, and glass pattern holders. Because the Source 4WRD fixture aperture is 3 inches wide, ETC recommends A-size patterns for maximum effectiveness. -
Page 20: Troubleshoot The Source 4Wrd
Troubleshoot the Source 4WRD The following error codes may be seen on the Source 4WRD user Help from ETC interface. For more troubleshooting assistance, see Technical Services on page 2 OtP (OTP) indicates that the fixture has gone into over- •... -
Page 21: Clean And Maintain The Fixture
Note: After shipping or storing the Source 4WRD LED below 5°C (41°F), visually inspect the unit to ensure the low temperatures have not caused cracking of the LED array. Source 4WRD Installation and User Manual... -
Page 22: Clean The Lenses
50%-50% mixture of each to clean the glass surface. Slide the lens tube back into the barrel with the color frame retaining clip on top. Reinstall the beam focus knob and retainer bolt. Source 4WRD Installation and User Manual... -
Page 23: Clean The Reflector
45°. The barrel should be firmly attached and the triangles should be aligned. Reinstall the barrel rotation knob and tighten the retainer bolt. Reinstall the LED lamp housing and tighten the attachment Install the Source 4WRD retrofit on page 7 screw. See Source 4WRD Installation and User Manual... -
Page 24: Clean 5° And 10° Polymer Lenses
Set the lens back in the lens tube with the ridged side facing the front of the tube. Reinstall the lens brackets. Slide the lens tube back into the barrel with the retaining clip for the color frame on top. Reinstall the beam focus knob. Source 4WRD Installation and User Manual... - Page 25 Source 4WRD Installation and User Manual...
- Page 26 Source 4WRD Installation and User Manual...
- Page 27 Source 4WRD Installation and User Manual...
- Page 28 Conta c t etcconnect.com/contactETC © 2019 Electronic Theatre Controls, Inc. Product information and specifications subject to change. ETC intends this document to be provided in its entirety. Trademark and patent info: etcconnect.com/ip 7 0 6 7 M 1 2 0 0 -1 .1 .2 Rev C Released 2019-06...
