ETC Source 4WRD Color Quick Manual

ETC Quick Guide
Source 4WRD Color (CE) Version 1.0.0
Introduction
The Source 4WRD Color is a replacement for a standard Source Four burner
assembly. It converts the HPL source to an RGBA (red, green, blue, and amber)
LED and provides a significant reduction in power consumption. The Source
4WRD Color uses DMX dimming and requires power from a non-dimmable
source. When not using DMX, you can use any of the 12 presets or
5 sequences on the Source 4WRD Color.
For complete information, download the Installation and User
Manual at etcconnect.com, or view online help on your
smartphone or tablet by scanning this code.

What's in the Box

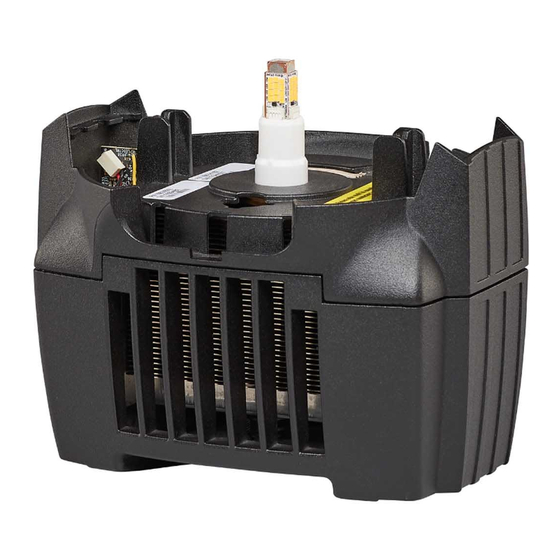

Source 4WRD Color retrofit
•
Threaded post (see
•
Diffusion (required—see
•

Safety

The Source 4WRD Color fixture is intended for professional use only. Read
the entire manual before using this equipment.
WARNING:
•
•
•
•
•
•
Install the Source 4WRD Color Retrofit on page 3
Note the following safety warnings before use:
Do not mount the fixture on or near a flammable surface.
Do not use this fixture with a damaged power lead. If the
power lead (cord set) is damaged, it must be replaced.
Mount and support the fixture only by the primary
suspension holes in the yoke.
Suspend the fixture from a suitable structure using only
hardware rated for the weight of the fixture.
In addition to primary suspension, attach a safety cable to
the fixture housing. An appropriate attachment point
(hole) is provided in the protruding tab on the fixture
housing.
Disconnect the unit from power and DMX and allow the
fixture to cool before removing or installing accessories,
and before all cleaning and maintenance.
