Script and configuration

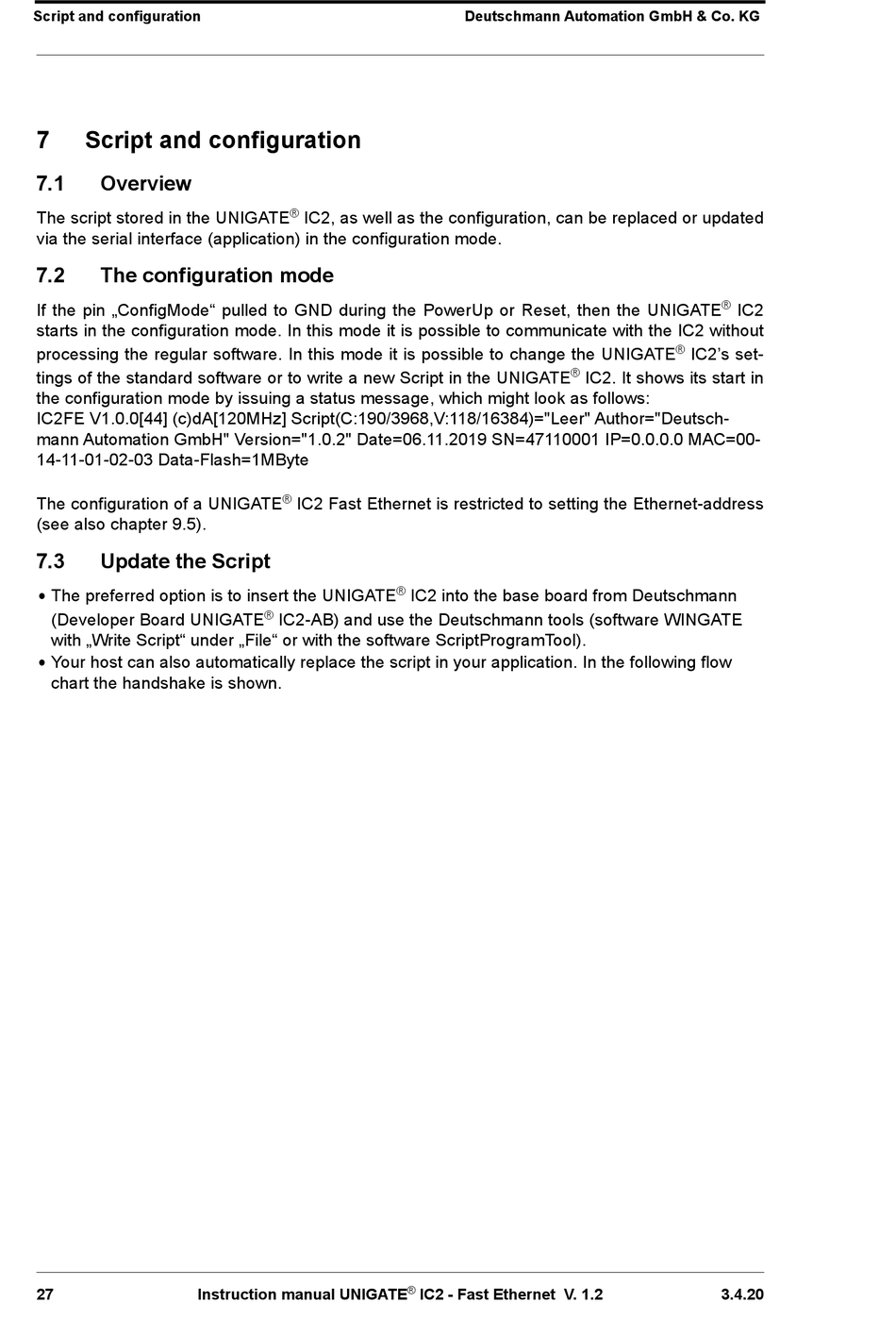

7 Script and configuration
7.1

Overview

The script stored in the UNIGATE
via the serial interface (application) in the configuration mode.
7.2

The configuration mode

If the pin „ConfigMode" pulled to GND during the PowerUp or Reset, then the UNIGATE
starts in the configuration mode. In this mode it is possible to communicate with the IC2 without
processing the regular software. In this mode it is possible to change the UNIGATE
tings of the standard software or to write a new Script in the UNIGATE
the configuration mode by issuing a status message, which might look as follows:
IC2FE V1.0.0[44] (c)dA[120MHz] Script(C:190/3968,V:118/16384)="Leer" Author="Deutsch-
mann Automation GmbH" Version="1.0.2" Date=06.11.2019 SN=47110001 IP=0.0.0.0 MAC=00-
14-11-01-02-03 Data-Flash=1MByte
The configuration of a UNIGATE
(see also chapter 9.5).
7.3

Update the Script

• The preferred option is to insert the UNIGATE
(Developer Board UNIGATE
with „Write Script" under „File" or with the software ScriptProgramTool).
• Your host can also automatically replace the script in your application. In the following flow
chart the handshake is shown.
27 Instruction manual UNIGATE
®
IC2, as well as the configuration, can be replaced or updated
®
IC2 Fast Ethernet is restricted to setting the Ethernet-address
®
IC2 into the base board from Deutschmann
®
IC2-AB) and use the Deutschmann tools (software WINGATE
®
IC2 - Fast Ethernet V. 1.2
Deutschmann Automation GmbH & Co. KG
®
IC2. It shows its start in
®
IC2
®
IC2's set-
3.4.20
