The UNIGATE® IC

2.7

UNIGATE

IC2 hardware survey

The hardware of the UNIGATE

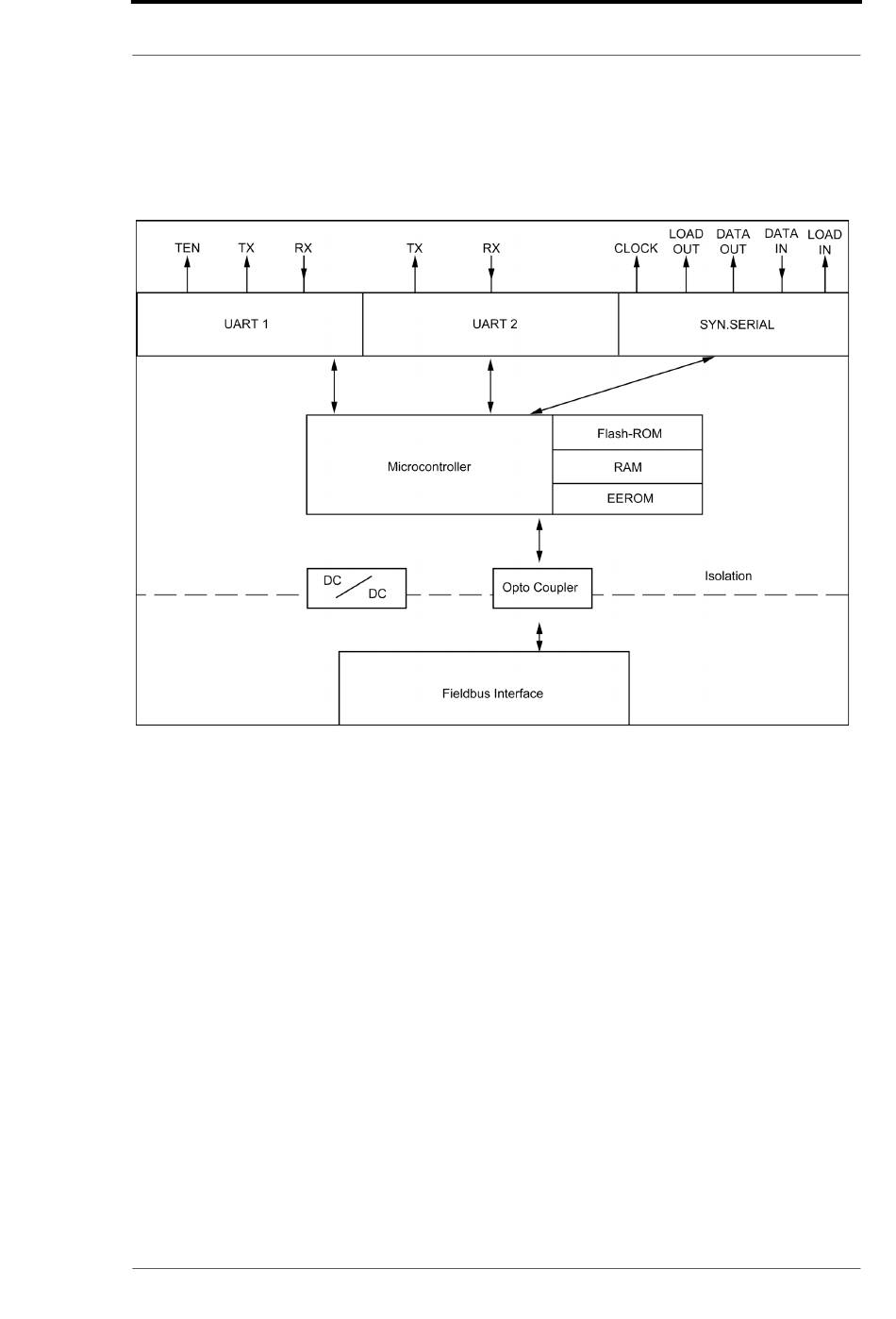

IC2 consists of some few standard components. The picture

below shows the functional structure of the IC2.

3.4.20

Instruction manual UNIGATE

IC2 - Fast Ethernet V. 1.2
