Basic line of proceeding

In theory it is enough to replace the RS232-driver that is included in your application by the
®
UNIGATE IC2.

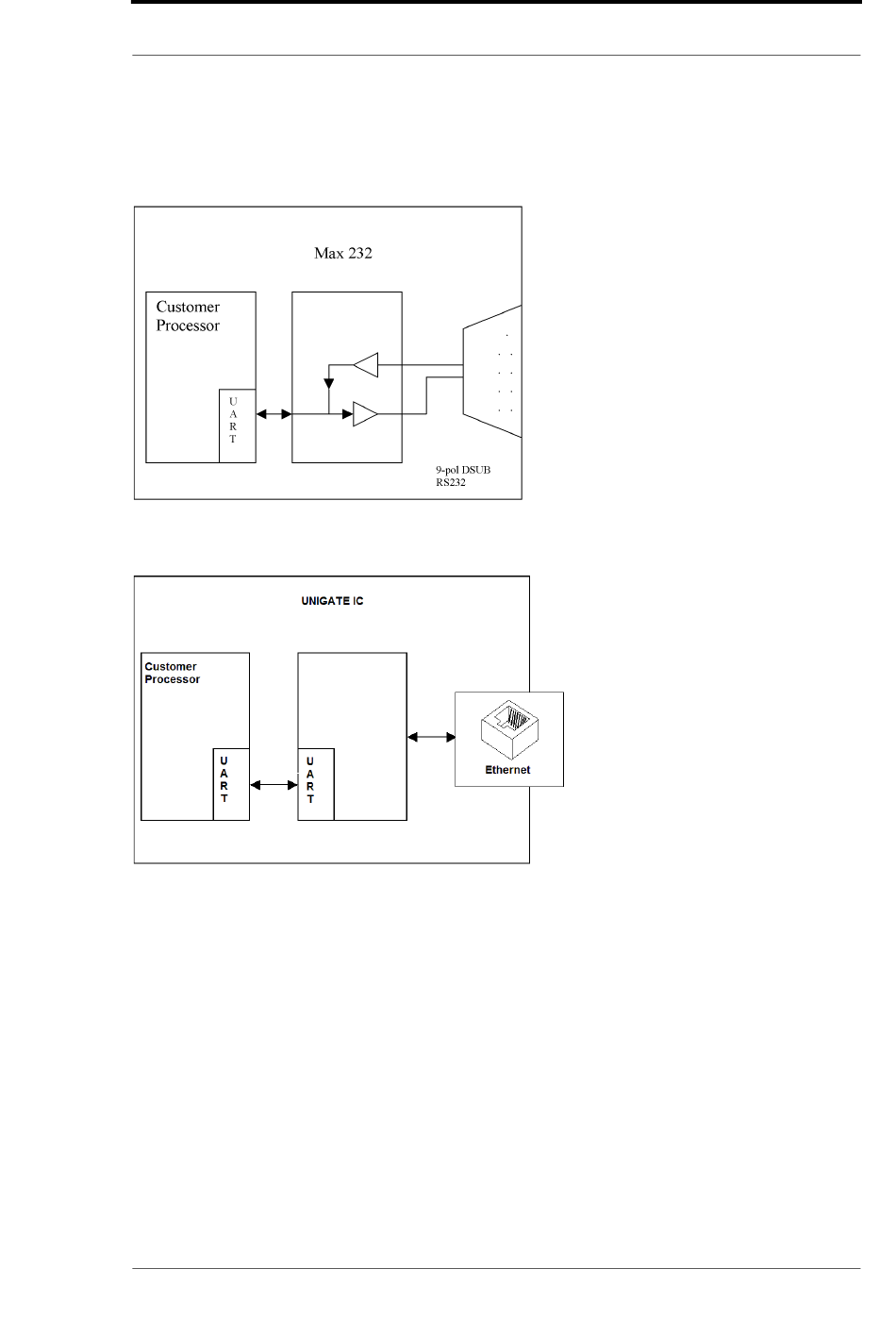

Your device, which on the whole is supposed to be assembled as shown above, will now be mod-
ified in a way that the Ethernet is available at the 9-pol. socket. However, a hardware redesign is
necessary in order to keep the assignment in standard form.
®
After the RS232-driver has been replaced by the UNIGATE IC2, Ethernet is available at an
RJ45-socket.
Deutschmann Automation is also offering an appropriate adapter board. With it existing devices
can be adapted without re-design; see chapter 13.
®
