Deutschmann Automation GmbH & Co. KG

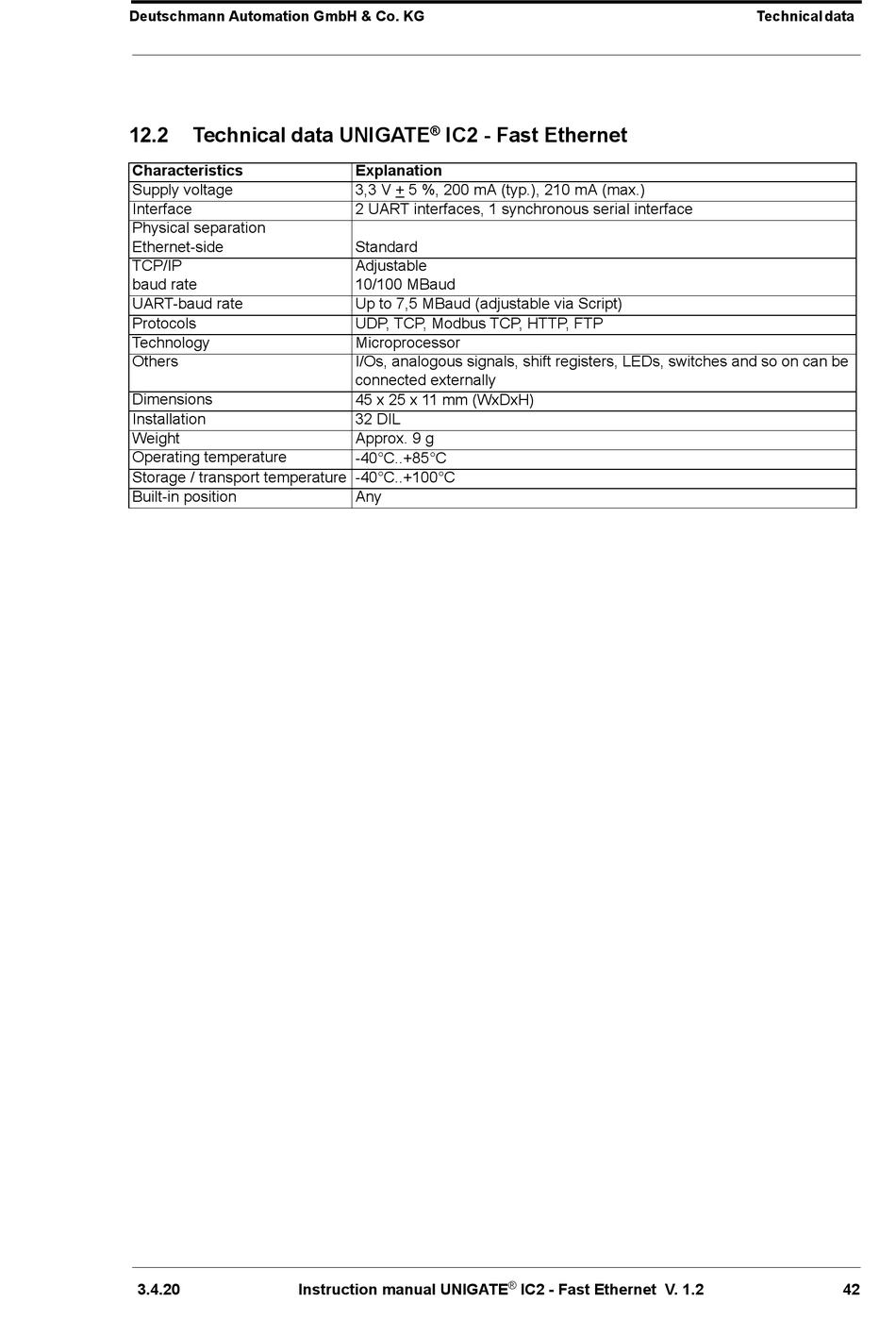

12.2 Technical data UNIGATE
Characteristics
Supply voltage
Interface
Physical separation
Ethernet-side
TCP/IP
baud rate
UART-baud rate
Protocols
Technology
Others
Dimensions
Installation
Weight
Operating temperature
Storage / transport temperature -40°C..+100°C
Built-in position
3.4.20
®
IC2 - Fast Ethernet
Explanation
3,3 V + 5 %, 200 mA (typ.), 210 mA (max.)
2 UART interfaces, 1 synchronous serial interface
Standard
Adjustable
10/100 MBaud
Up to 7,5 MBaud (adjustable via Script)
UDP, TCP, Modbus TCP, HTTP, FTP
Microprocessor
I/Os, analogous signals, shift registers, LEDs, switches and so on can be
connected externally
45 x 25 x 11 mm (WxDxH)
32 DIL
Approx. 9 g
-40°C..+85°C
Any
Instruction manual UNIGATE
®
IC2 - Fast Ethernet V. 1.2
Technical data
42
