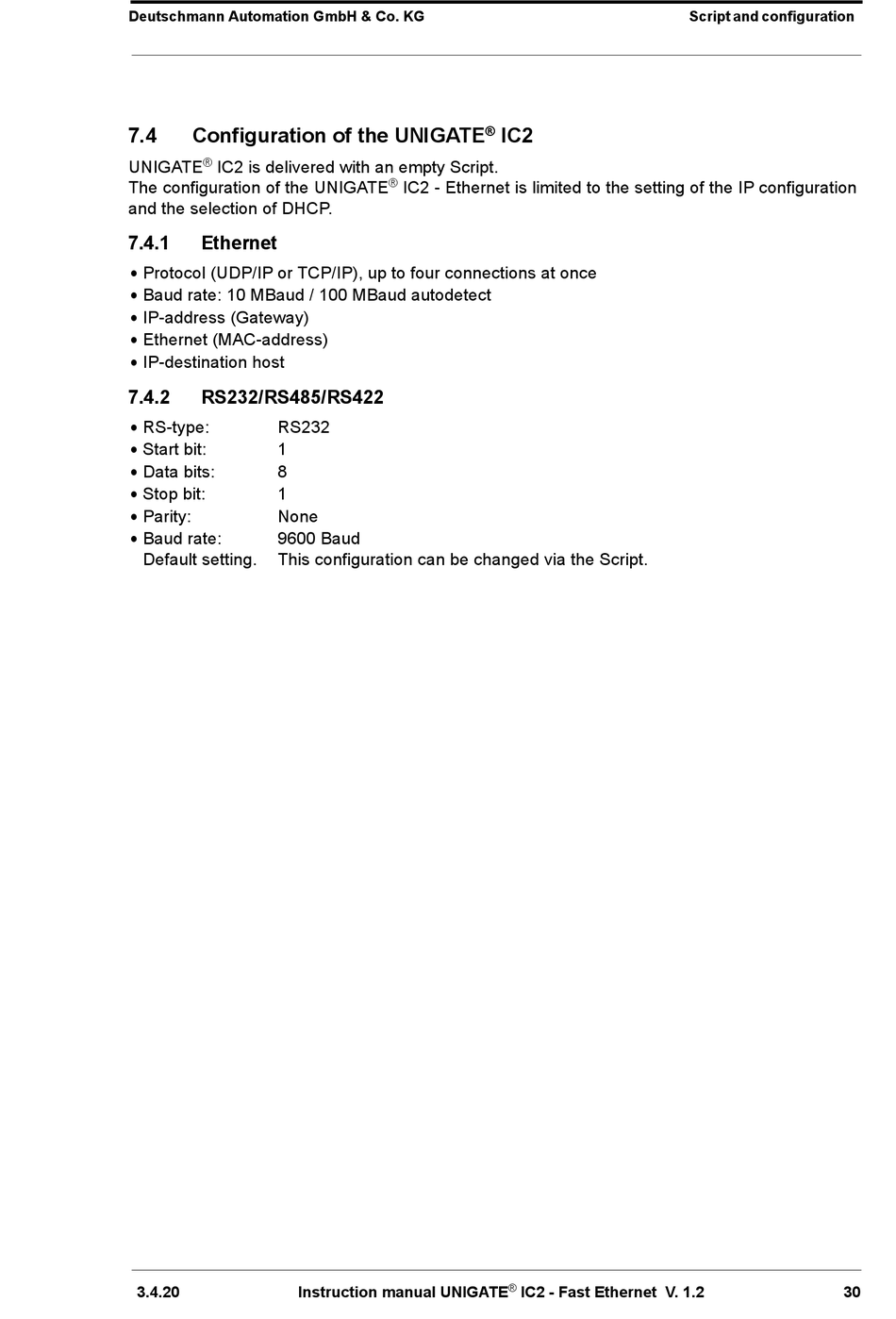

7.4 Configuration of the UNIGATE
®
UNIGATE IC2 is delivered with an empty Script.
The configuration of the UNIGATE
and the selection of DHCP.
7.4.1

Ethernet

• Protocol (UDP/IP or TCP/IP), up to four connections at once
• Baud rate: 10 MBaud / 100 MBaud autodetect
• IP-address (Gateway)
• Ethernet (MAC-address)
•
IP-destination host
7.4.2

RS232/RS485/RS422

• RS-type: RS232
• Start bit: 1
•
Data bits: 8
• Stop bit: 1
• Parity: None
• Baud rate: 9600 Baud
Default setting. This configuration can be changed via the Script.
