Deutschmann Automation GmbH & Co. KG Accessory
®
The required UNIGATE IC2 / ICs are ordered separately. The required voltage (5V or 3.3V,
depending on the version) can be adjusted. An RS232-interface or a USB-connection is avail-
able for the connection to the PC (Debug-interface).
The application can be connected either through the USB, RS232, RS485 or the RS422.
The bus-connections according to standard or market standard are available to test the respec-
tive bus-side. Optionally Deutschmann Add-on packages (bus-master simulation) are available.

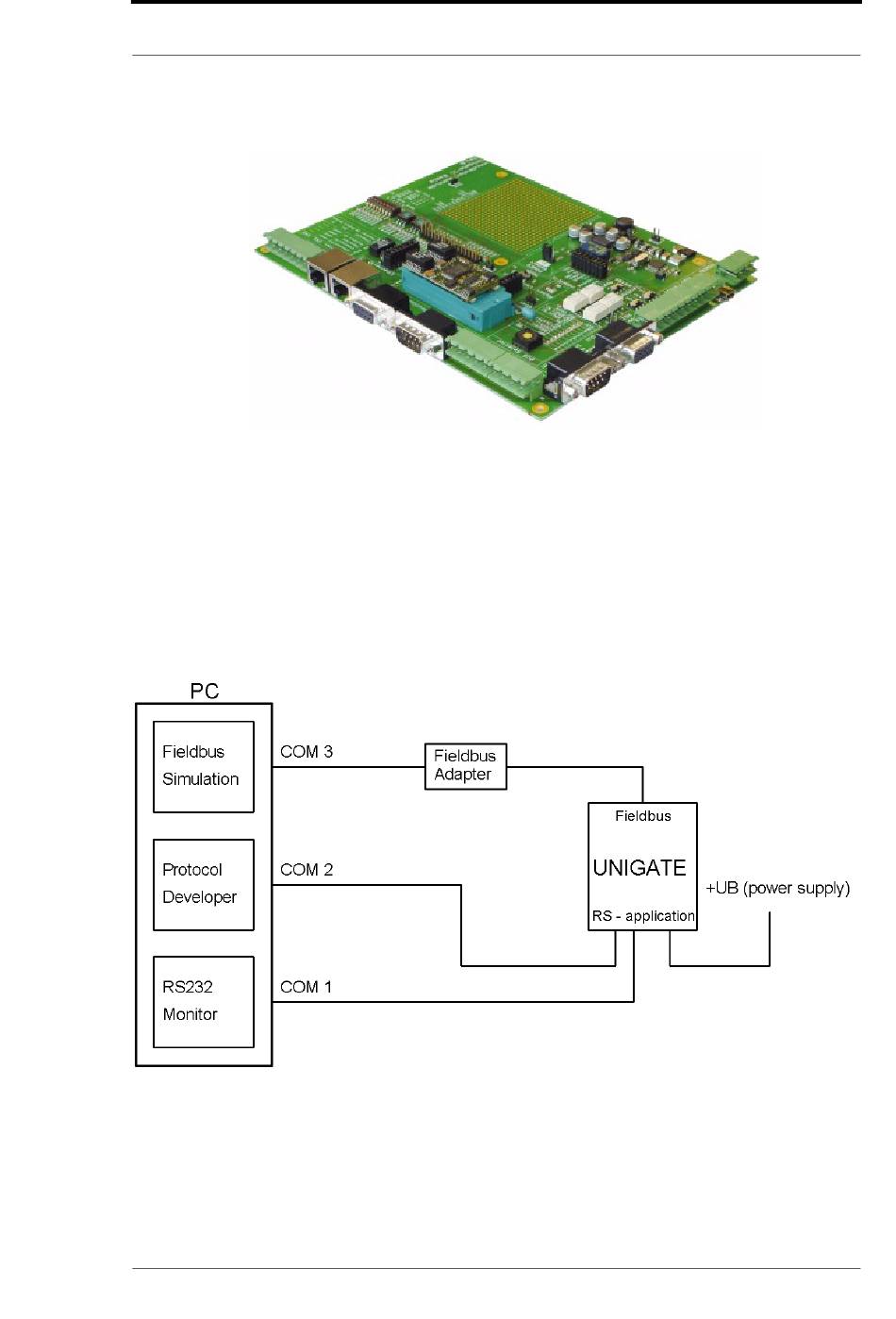

The board contains 32 bit input and 16 bit output, provided with one LED each. Different connec-
tors allow an easy coupling to your processor. A hole matrix field with the most important signals
(voltage, IOs) allows a customized hardware extension (e. g. to connect a D/A converter).
13.5.2

Quick start

For a transparent data exchange you will find example Scripts for the respective Fieldbus under
"File->New" in the Protocol Developer.
®
3.4.20 Instruction manual UNIGATE IC2 - Fast Ethernet V. 1.2 44
