Technical data
Deutschmann Automation GmbH & Co. KG

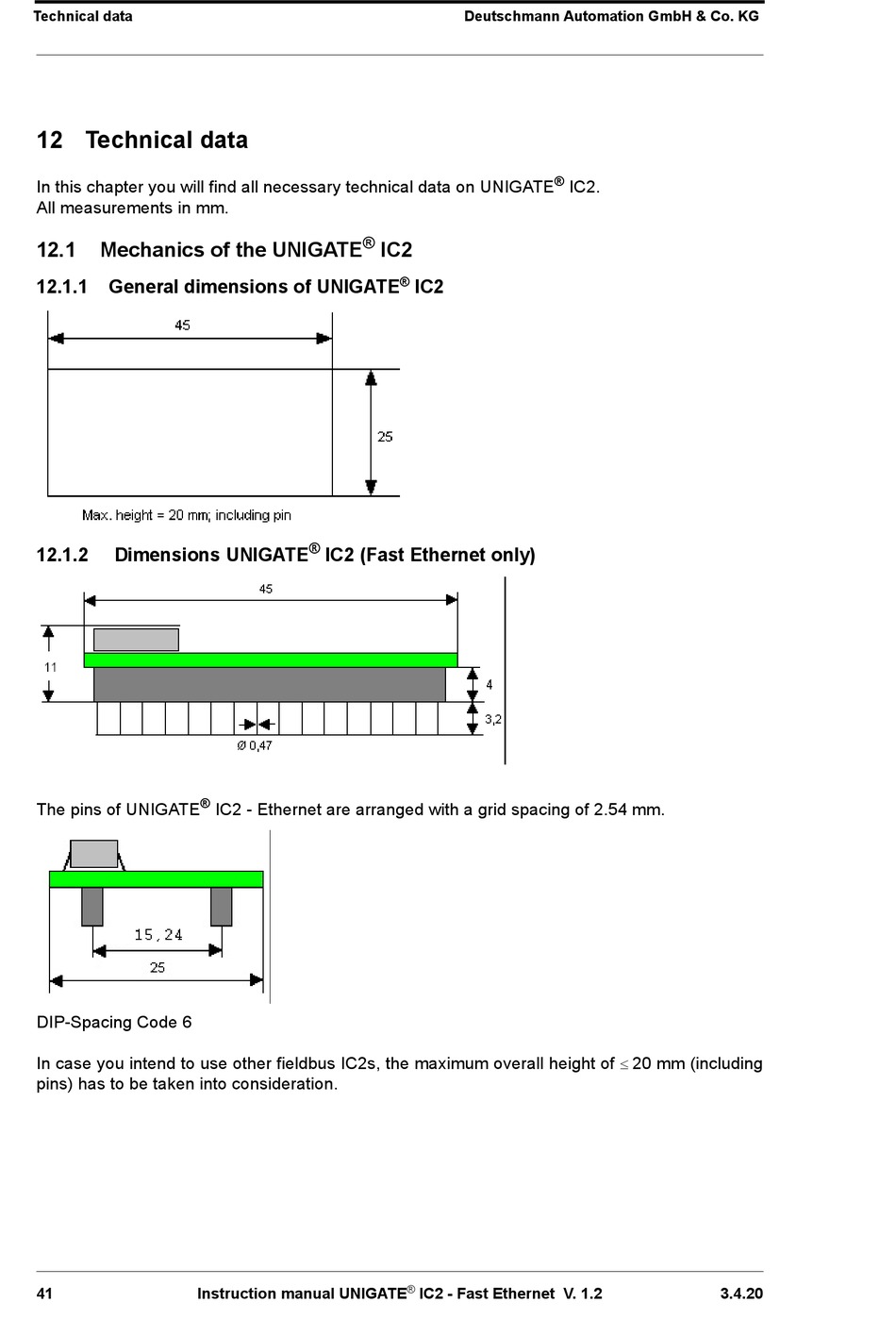

12 Technical data
®
In this chapter you will find all necessary technical data on UNIGATE
IC2.
All measurements in mm.
®
12.1
Mechanics of the UNIGATE
IC2
®
12.1.1
General dimensions of UNIGATE
IC2
®
12.1.2
Dimensions UNIGATE
IC2 (Fast Ethernet only)
®
The pins of UNIGATE
IC2 - Ethernet are arranged with a grid spacing of 2.54 mm.
DIP-Spacing Code 6
In case you intend to use other fieldbus IC2s, the maximum overall height of
20 mm (including
pins) has to be taken into consideration.
®
41
Instruction manual UNIGATE
IC2 - Fast Ethernet V. 1.2
3.4.20
