Hardware design

3.6

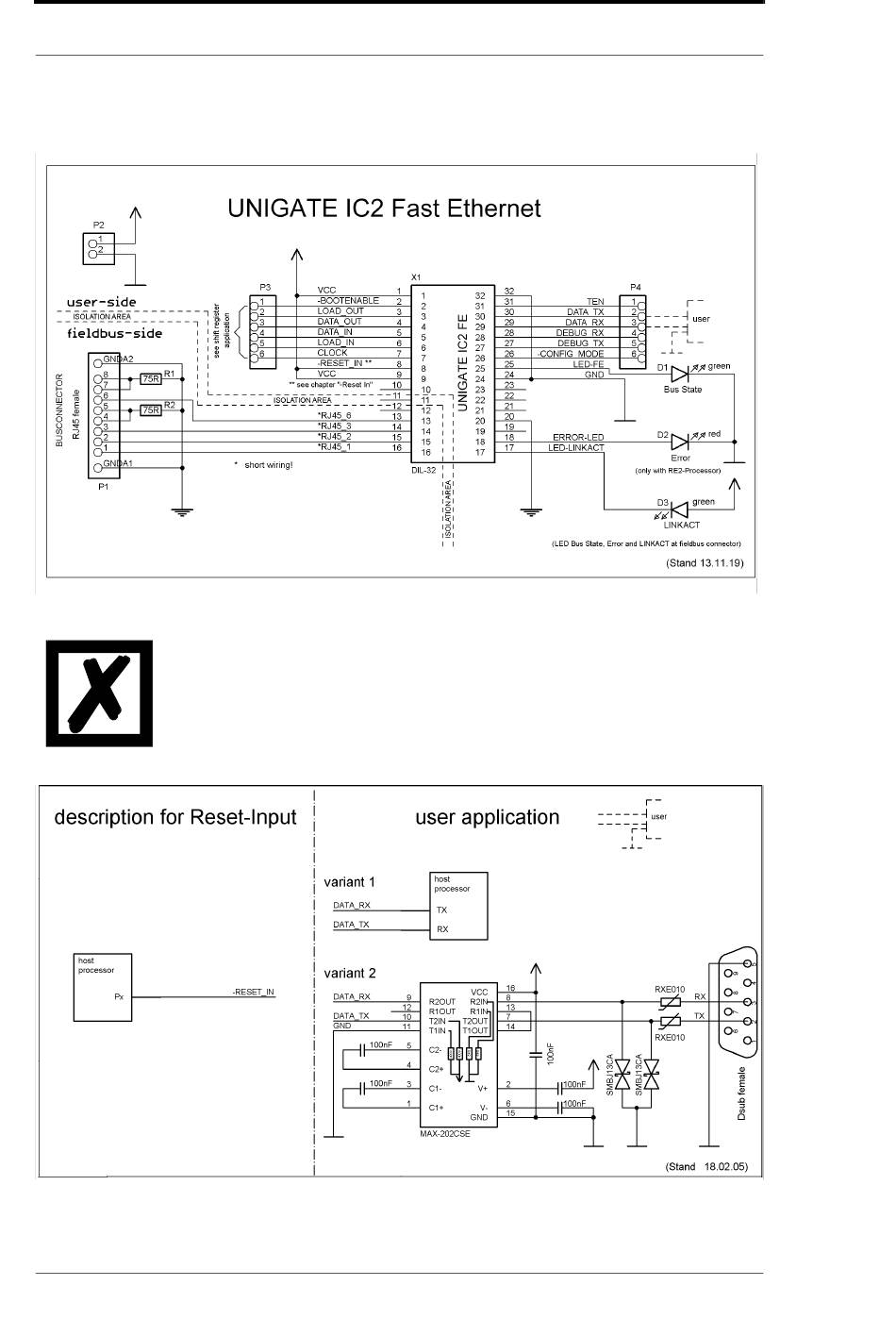

Layout-Beispiele

When connecting the UG-IC2 and the RJ45-connector it is important to

make sure the signal lines RD-/RD+ resp. TD-/TD+ run as short as pos-

sible, parallel and equal in length. Because this is for analog signals, it is

also advisable to not place digital lines in close proximity.

Instruction manual UNIGATE

Deutschmann Automation GmbH & Co. KG

IC2 - Fast Ethernet V. 1.2

3.4.20
