DB-87040 / DB-87060 User's Manual

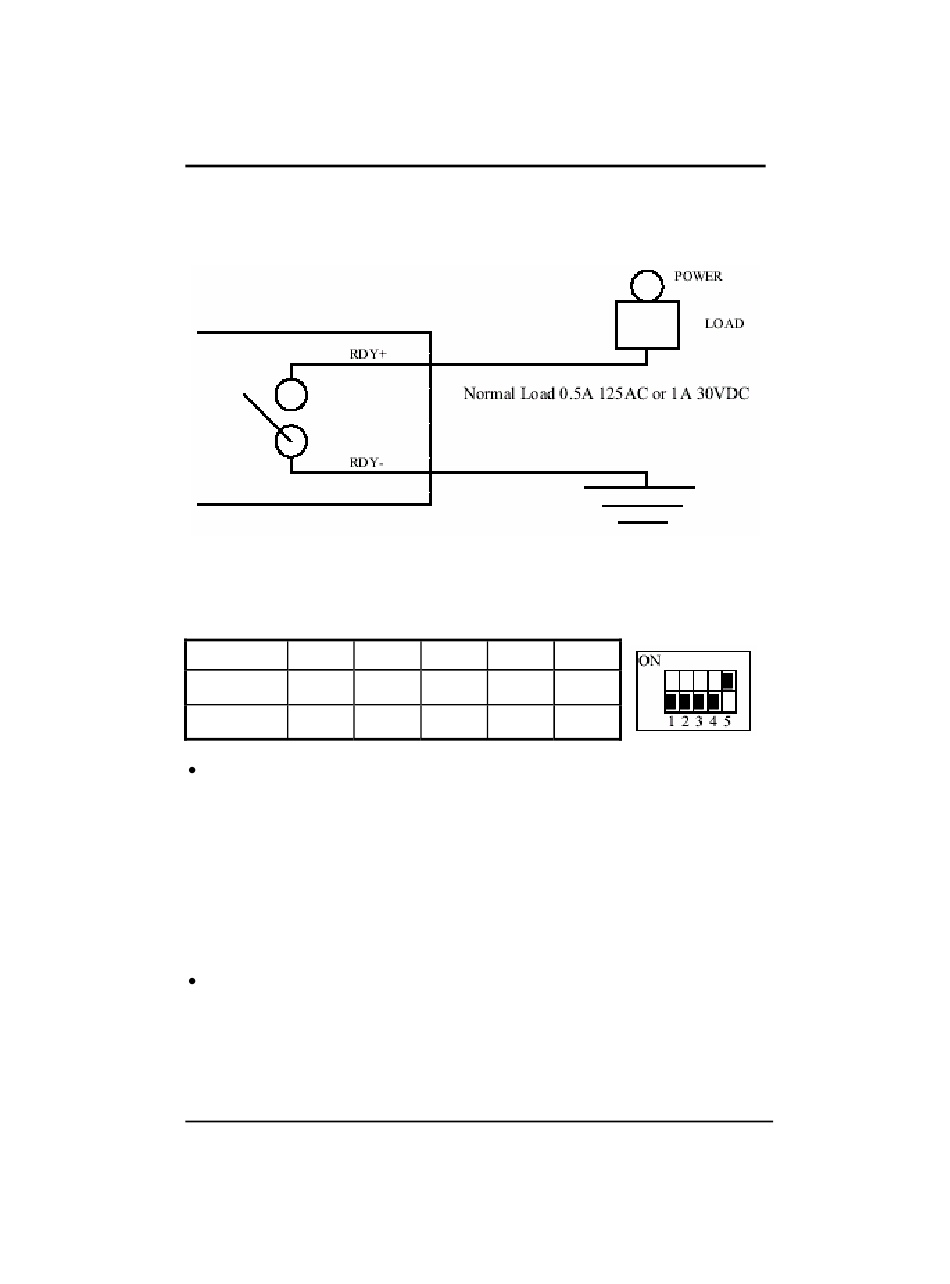

RDY digital output
(C). Switch – SW1, SW2, SW3, SW4, SW5, SW6
1
Pin
Definition HOME OT+
Default OFF OFF
HOME : Parallel connection with TB1. HOME should be set OFF
when it connected with the external HOME Sensor. The Dip
Switch is simulated as the external Home Sensor when the actual
external Home Sensor is not connected. Set the Dip Switch ON
indicates the simulated Home Sensor is enabled and OFF
indicates disable.
OT+ : Parallel connection with TB1. OT+ should be set OFF
when it connected with the external OT+ Sensor. The Dip Switch
is simulated as the external OT+ Sensor when the actual external
OT+ Sensor is not connected. Set the Dip Switch ON indicates
6
2 3 4
OT- MODE
OFF OFF
5
INH
OFF
Hardware Setting
