PRELIMINARY MANUAL

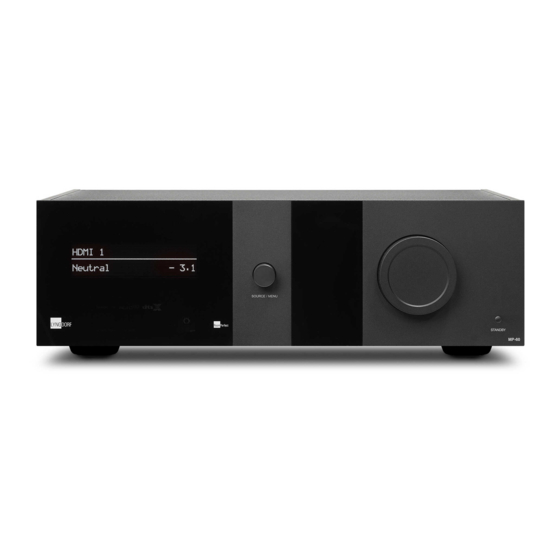

Lyngdorf MP-60
Version: 0.2/fsm
Based on SW 3.5.3
[Skriv tekst]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP-60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lyngdorf Audio MP-60

Summary of Contents for Lyngdorf Audio MP-60

  • Page 1 PRELIMINARY MANUAL Lyngdorf MP-60 Version: 0.2/fsm Based on SW 3.5.3 [Skriv tekst]...

  • Page 2: Table Of Contents

    RoomPerfect™ Preparations ................ 22 Measuring the Focus Position ............... 23 Measuring Random Room Positions ............. 23 System Configuration..................26 General Setup ....................26 Trigger Setup ....................27 Network Setup ....................28 Streaming Setup ....................30 Lyngdorf Audio MP-60 – Owner’s manual...
  • Page 3 Download system log ..................36 Backup ......................36 Restore ......................36 Factory Reset ....................36 Update Software ................... 37 Troubleshooting ....................38 RoomPerfect™ ....................38 Error Messages ..................... 38 Trademarks ....................... 41 Service Information ................... 41 Lyngdorf Audio MP-60 – Owner’s manual...

  • Page 4: Compliance

    Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Lyngdorf Audio MP-60 – Owner’s manual...

  • Page 5: Introduction

    Introduction The MP-60 is an advanced Surround Sound, Preamplifier / Processor with full support of the latest Dolby® Atmos, DTS:X PRO (available spring 202) and Auro-3D® surround sound formats. The processor can decode 16 discrete channels from the source and features 16 balanced XLR outputs for the discrete channels or additional subwoofer outputs.

  • Page 6: Pre-Installation

    It should be placed in an environment free of excessive heat. • In a rack system, the MP-60 should be placed at the bottom of the rack, still with at least one inch / 25mm free space on top and sides.

  • Page 7: Home Automation System Integration

    TCP connection. If you do not know the IP address of the MP-60 on your local network, the MP-60 supports Apple´s Bonjour Discovery service, which must be on the computer with which you wish to set up the MP-60. The software is built-in as part of the Apple OS X operating system (not iOS devices).

  • Page 8: Rear Panel

    Rear Panel On the back of the MP-60, you will find a range of inputs and outputs: • 16 x XLR, Differential balanced audio outputs (configured for 7.1.4 plus 4 auxiliary) • 8 x HDMI inputs and 2 x HDMI outputs, all 4K / 18 Gbps compatible. eARC on HDMI OUT 1 •...

  • Page 9: Remote Control

    Remote Control The MP-60 comes with a dedicated remote control, which can operate both with radio frequencies (RF) and infrared control (IR) Setup Access the installation menu. Standby Turn the MP-60 on and into standby. Audio Access the post-processing menu.

  • Page 10: How To Pair Remote Control In Rf Mode

    2. Hold down Play/Pause and OK until the remote control´s green LED flashes. 3. Release the buttons. 4. Point the remote control at the MP-60 and hold it within 30cm / 1 foot of the front panel; when the green LED stops blinking, the remote is connected.

  • Page 11: Installation Via Installer Menu

    Installation Via Installer Menu Connect a screen to the MP-60 using any of the video output sockets on the back. Access the menu system by pressing the Setup button on the remote control. There are some differences between how the web interface and the Installer Menu. This manual describes how to set up via the installer Menu interface.
  • Page 12 With a general audio offset, you should adjust the lip-sync on the specific Source settings in the Setup menu. The interface for controlling the built-in media streamer is found in the bottom section of this page. For information as to the use of the interface see section for Streaming Setup. Lyngdorf Audio MP-60 – Owner’s manual...

  • Page 13: Setup

    Select the audio input connector. If you want the audio input to match the video input from an HDMI source, select HDMI Audio. If you want to create a Source using the built-in radio player, you should choose Internal Player, which will activate the selection of Preset vTuner stations. Lyngdorf Audio MP-60 – Owner’s manual...
  • Page 14 Delete Source Delete an enabled source through Screen Setup by highlighting it and pressing right on the remote. In the web menu press Delete button. Lyngdorf Audio MP-60 – Owner’s manual...

  • Page 15: Speakers And Room

    Speakers and Room You need to configure the MP-60 according to your speaker setup, setting the sizes of the speakers, so that the Bass Management function can optimize the overall performance. In the setup page the connectors will be highlighted with information as to signal type.
  • Page 16 Right top rear Speakers designated according to AURO 3D specifications: Height left Height right Height left surround Height right surround Height left rear surround Height right rear surround Height center Top ceiling (aka: Voice of God) Lyngdorf Audio MP-60 – Owner’s manual...
  • Page 17 The MP-60 can decode up to 16 channels (including the LFE, Low Frequencies Effects), and the system will inform you, if you try to activate more speakers than the MP-60 can process – or is trying to make a setup, which cannot be handled due to the limitations set by Dolby, DTS or Auro.
  • Page 18 0 dB). Even levels ensures, that the subsequent RoomPerfect™ calibration will run perfectly. (highest and lowest speaker levels are then within the microphones optimal calibration levels) Amplifier Delay Lyngdorf Audio MP-60 – Owner’s manual...
  • Page 19 Delay and gain can be set for these specific speaker channels. Dedicated speakers for this purpose will feature a cue filter to improve the sensation that this sound is coming from the ceiling. Lyngdorf Audio MP-60 – Owner’s manual...

  • Page 20: Verify Speakers

    With one or more active subwoofer(s) connected to the MP-60, this menu will guide you into setting the volume level on each subwoofer’s controls. Follow the instructions on the display to go through two phases: 1.

  • Page 21: Roomperfect

    If the woofer(s) is up against the wall, measure the distance from the listening position to the back edge of the woofer. • If you have a stack of woofers taller than the listening position, measure the distance from the listening position to the back edge of the middle of the stack. Lyngdorf Audio MP-60 – Owner’s manual...

  • Page 22: Roomperfect™ Preparations

    The RoomPerfect™ microphone is a very sensitive and finely calibrated device which must be treated with utmost care. If the microphone has been dropped on the floor, it may be damaged. If this is the case, obtain a new microphone from your Lyngdorf Audio representative before performing the system calibration.

  • Page 23: Measuring The Focus Position

    Keep taking measurements until RoomKnowledge reaches minimum 90%. These are the rules of thumb when measuring the room: • the microphone should be in random and varying positions, heights, and orientations. Point it up/down/sideways, the more random positions the better. Lyngdorf Audio MP-60 – Owner’s manual...
  • Page 24 • do not take symmetrical measurements in the room. Top view of room Room Measurements Above 90% RoomKnowledge When RoomKnowledge has reached 90%, you can decide to add room measurements or do it later. Lyngdorf Audio MP-60 – Owner’s manual...
  • Page 25 Calculation of Focus and Global Filters When room measurements are complete, the system will calculate the focus and global filters automatically. Note: We recommend that you ALWAYS make a backup of the MP-60 settings and calibration data after having performed a RoomPerfect™ calibration (see Manage Software in the Setup section).

  • Page 26: System Configuration

    Allow for RoomPerfect™ to be set to bypass mode for demonstration purpose. Enable front IR sensor Turn the MP-60´s IR sensor Off or On. This function is useful if you are using a home automation system and other remotes are using the same IR codes as the MP-60 remote.

  • Page 27: Trigger Setup

    The MP-60 will turn on if a voltage above 1.5V is detected. Trigger Out Setup Allows you to set up the system so that the MP-60 can control the power state of other devices like amplifiers and curtains through a simple connection.

  • Page 28: Network Setup

    Furthermore, the Mode option in the Network Setup menu must be set to Manual IP. Finally, you must manually set an IP address on the computer you intend to use for setting up the MP-60.
  • Page 29 Click Use the following IP address and enter the following: IP address: 192.168.1.2 Subnet mask: 255.255.255.0 Default gateway: 192.168.1.1 Click OK to close the configuration windows, and you should now be able to access the MP-60 via your Internet browser. Lyngdorf Audio MP-60 – Owner’s manual...

  • Page 30: Streaming Setup

    255.255.255.0 Default gateway: 192.168.1.1 Click OK to close the configuration windows, and you should now be able to access the MP-60 via your Internet browser. Streaming Setup The MP-60 can access music files on your local network or on a FAT32 formatted storage device connected to any of the USB A inputs, and you can stream music to the MP-60 from your mobile devices.
  • Page 31 This function allows you to access radio stations and podcasts around the world. You can search stations and podcasts through references to genre or geographical relation. Lyngdorf Audio MP-60 – Owner’s manual...
  • Page 32 When a station or podcast is playing, you can assign it to one of the 4 ‘select save- position’. The saved stations can as presets be assigned to a SOURCE for direct selection, if you as ‘audio input’ select ‘Internal Player’ (see menu: SETUP/SOURCE). Lyngdorf Audio MP-60 – Owner’s manual...

  • Page 33: Video Setup

    Video Setup The Video Setup menu allows you to register the video system settings for the MP-60’s video inputs and outputs, which in turn dictates which video formats can be shown on the screen when these inputs and outputs are activated.

  • Page 34: Video Input

    The television is the Master of this communication and is informing all sources of what signal types, it can receive. The MP-60 is a HDMI Repeater, and will correct the EDID information sent to the sources, if you have changed any of the settings.

  • Page 35: Zone B Setup

    This output can output a digital, stereo audio signal, which you can use as input for a system in adjacent rooms. The MP-60 can decode one HDMI source only and selecting ‘Follow Main’ will output a stereo downmix of the movie in the main room. The output does not hold any RoomPerfect™ filters.

  • Page 36: Manage Software

    This file can also be used to move the entire setup to another MP-60 processor – and it can be included in communications as to setup issues.

  • Page 37: Update Software

    Update Software Update from Remote Files When connected to the Internet, the MP-60 will automatically identify new software updates from our server. 1. Select the file listed on the remote server list. 2. Press Start Update to upload the new software to the MP-60.

  • Page 38: Troubleshooting

    • Check the measuring signal volume. If none of these measures solve the error, request a replacement microphone from Lyngdorf Audio. Fault – Signal clipping Either the incoming signal has been classified as too loud, resulting in clipping or distortion, or a loud noise in the immediate environment has corrupted the measurement results.
  • Page 39 • The MP-60 needs to be set to Network mode to be able to turn on via a control system. It will not turn on when in Deep Sleep. This is set up in System Configuration / General Setup/ Power Management...
  • Page 40 Lyngdorf Audio MP-60 – Owner’s manual...

  • Page 41: Trademarks

    HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Service Information In order to obtain warranty service, you must contact your original dealer or alternatively the Lyngdorf Audio distributor of the region or country where you are located.
  • Page 42 Lyngdorf Audio MP-60 – Owner’s manual...
