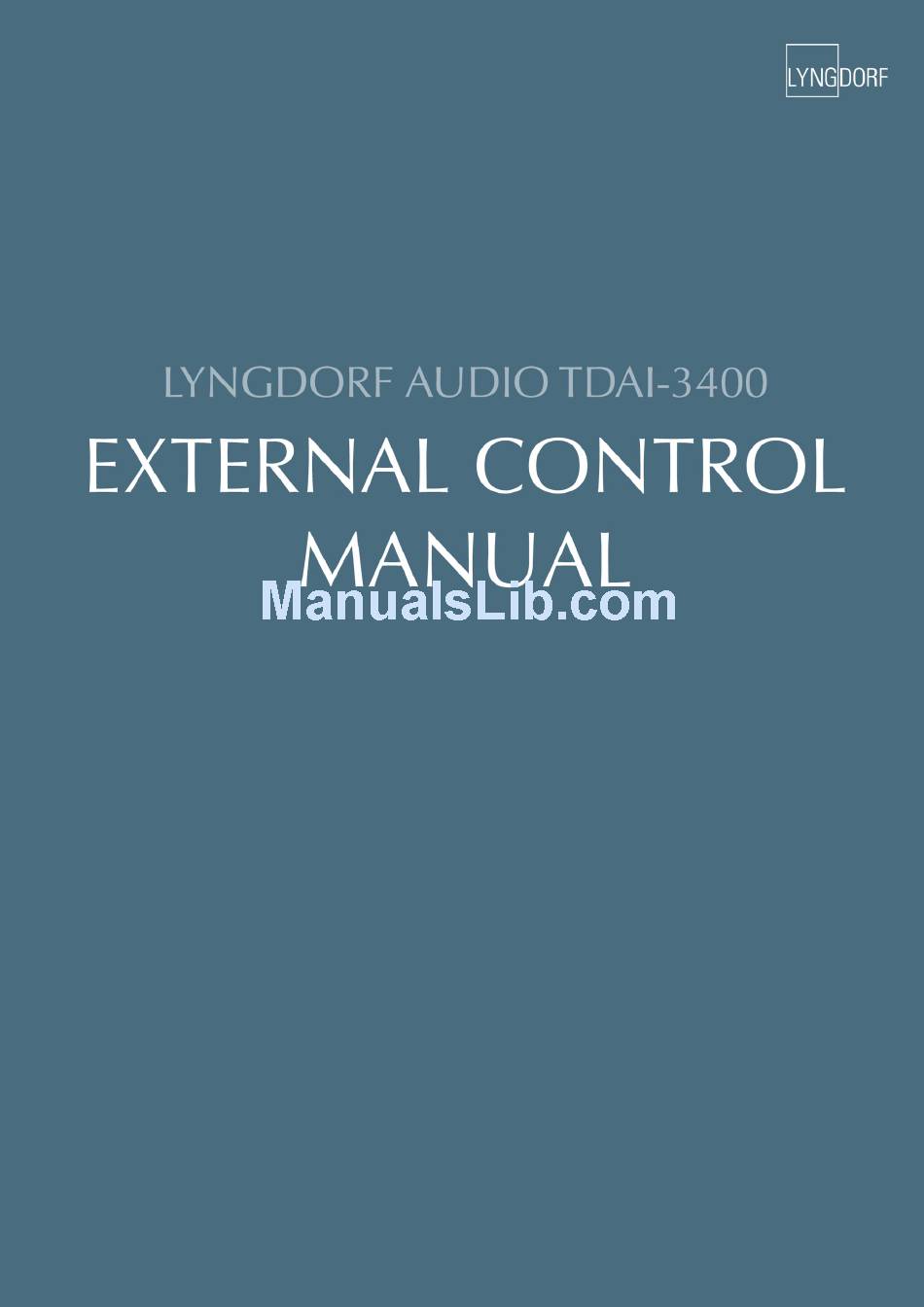

- Page 1 Lyngdorf Audio TDAI-3400 – External control manual...
-
Page 2: Home Automation System Integration
Control Via Serial Port The serial port on the TDAI-3400 is wired as a DCE, so for communication with a PC or similar use a standard straight through cable The port settings should always be 8 data bits, no parity, one stop bit and no hardware handshake. The baud rate is 115200 bits per second. -
Page 3: Control Protocol
Feedback level 2: Each command is also echoed back with the ‘#’ in front of the command instead of ‘!’ character. For example, command “!VOL?<CR>” would return “#VOL?<CR>!VOL(XXX)<CR>”. Lyngdorf Audio TDAI-3400 – External control manual... - Page 4 The following commands and requests are available on the TDAI-3400: Commands Return format Values Description & Requests !AUDIOSTATUS Audiostring is a string describing Requests format information for the !AUDIOSTATUS? ("Audiostring") the current audio input. current audio input. Balance describes the balance...
- Page 5 RoomPerfect position. Name: A string with the name of Requests the name of RoomPerfect !RPNAME(n)? !RPNAME(n,"Name") the position. position n. If the requested position does not exist, Name will be an empty string. Lyngdorf Audio TDAI-3400 – External control manual...
- Page 6 Sets the treble gain trim setting Requests the current treble frequency !TREBLEFREQ? !TREBLEFREQ(n) n = 1500 to 16000 (Hz) trim setting !TREBLEFREQ(n) n = 1500 to 16000 (Hz) Sets the treble frequency trim setting Lyngdorf Audio TDAI-3400 – External control manual...
- Page 7 -999 to 120 (steps of 0.1dB) Sets the current volume to a new value. Changes the volume by the requested !VOLCH(n) -999 to 999 (steps of 0.1dB) amount. !VOLDN Volume down (by 0.5dB). !VOLUP Volume up (by 0.5dB). Lyngdorf Audio TDAI-3400 – External control manual...
- Page 8 0xE310, 0x6699 Voice 0xE310, 0x6798 Audio 0xE310, 0x6897 Headphone Mute 0xE310, 0x6996 Back / Exit 0xE310, 0x6A95 Trim 0xE310, 0x6B94 Power On: 0xE310, 0x807F Power Off: 0xE310, 0x817E Input Dig 1 Coaxial 0xE310, 0x916E Lyngdorf Audio TDAI-3400 – External control manual...
- Page 9 0xE310, 0xB04F Input vTuner 0xE310, 0xB847 Input Spotify Connect 0xE310, 0xB946 Input AirPlay 0xE310, 0xBA45 Input Roon Ready 0xE310, 0xBB44 Input uPnP 0xE310, 0xBC43 Input USB File 0xE310, 0xBD42 Input Bluetooth 0xE310, 0xBE41 Lyngdorf Audio TDAI-3400 – External control manual...
- Page 10 Lyngdorf Audio TDAI-3400 – External control manual...
