Summary of Contents for Lyngdorf Audio Millennium MkIV

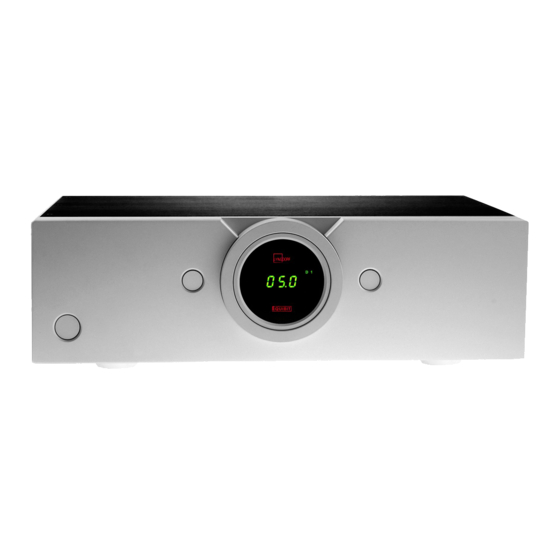

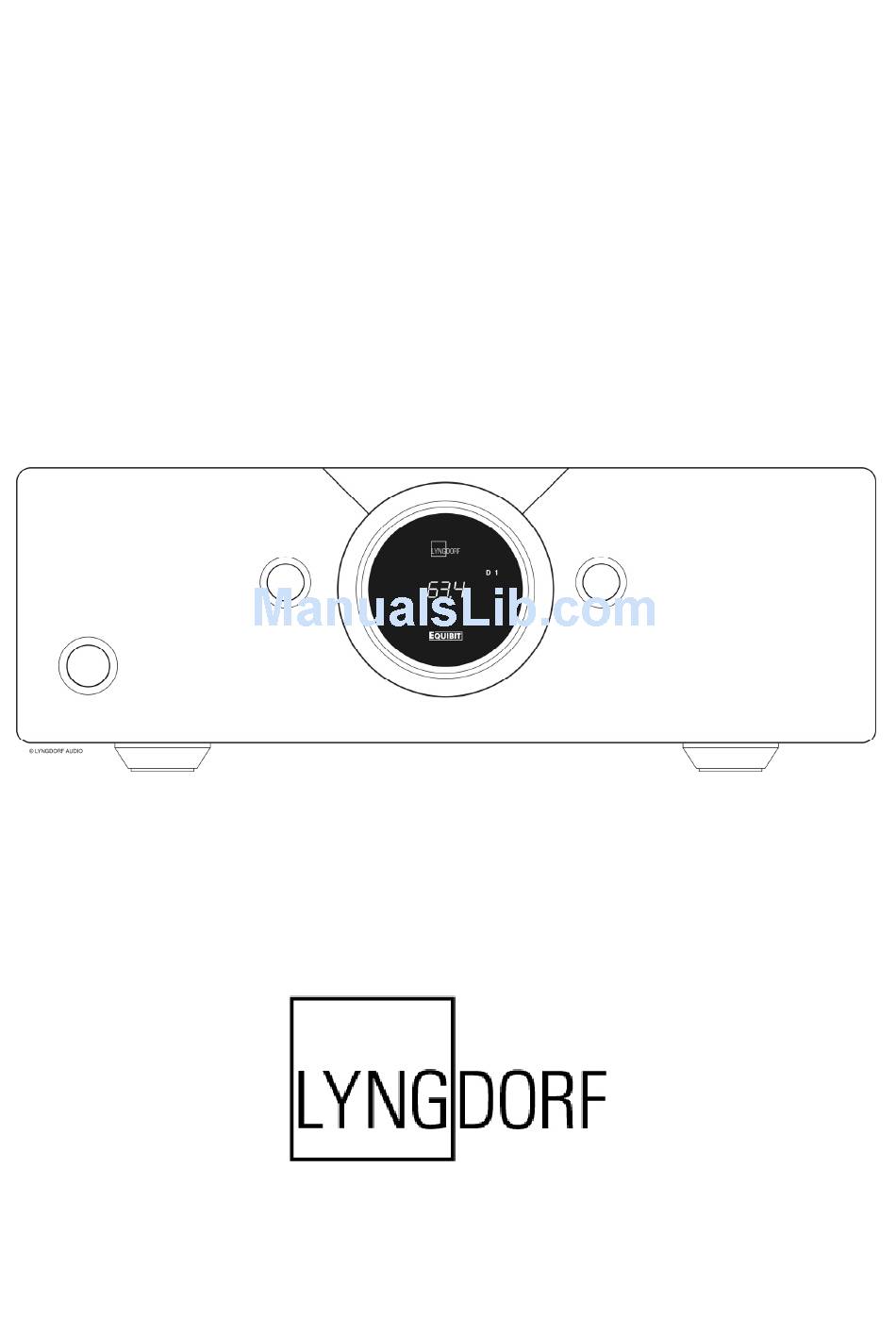

- Page 1 Millennium MkIV True Digital Amplifier Owners Manual - 1 -...
-
Page 2: Table Of Contents
Table of Contents Warnings...........................3 Explanation of graphical symbols ..................3 Important safety instructions....................4 Unpacking and placement of the Millennium ................5 Operating voltage .........................6 Product Registration .........................6 Introduction ..........................7 Features............................7 Front panel..........................9 Controls ..........................9 The wheel ..........................9 Polarity............................10 Mute............................11 Rear panel ..........................12 Remote Control........................14 Software..........................15 Connectors ..........................16... -
Page 3: Warnings
Warnings CAUTION RISK OF ELECTRICAL SHOCK. DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. Explanation of graphical symbols Exclamation symbol The exclamation point within an equilateral triangle is intended to alert the user... -
Page 4: Important Safety Instructions
Important safety instructions 1:Read these instructions carefully before installing or operating this apparatus. 2:Keep these instructions. 3:Heed all warnings. 4:Follow all instructions. 5:Do not use this apparatus near water. 6:Clean only with a dry cloth. 7:Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 5: Unpacking And Placement Of The Millennium
When you have carefully removed the unit and accessory kit from the carton, visually check for shipping damage. Contact both the shipper and Lyngdorf Audio immediately if the unit bears any sign of damage from mishandling. All Lyngdorf Audio equipment is carefully inspected before leaving our factory. -
Page 6: Operating Voltage
Please record the serial number of your amplifier here for future reference. The serial number is printed on the label on the Millennium rear panel. You will need this serial number, should you ever require service for your Millennium power amplifier. Millennium MkIV serial number: _____________________ - 6 -... -
Page 7: Introduction
Introduction Lyngdorf Millennium is the world's first true-digital power amplifier where digital audio data is converted directly into sound without analog amplification or conventional low-level D/A conversion involved at any step. The core technology is based on patented EQUlBlT™ processing and output modules. The Lyngdorf Millennium is a modular design, a platform for state-of-the-art music reproduction. - Page 8 Quick set-up A. Connect your speaker cables to the terminals on the back panel. The speaker impedance should be 4-16 Ohms. If the speakers can be bi-wired, use both sets of terminals. Make sure that the red (+) terminal gets connected with the corresponding positive (+) terminal on your speaker.
-
Page 9: Front Panel
Front panel Fig 1: Millennium front panel. Controls The buttons/controls on the front panel of the Millennium can all be used either with direct presses on the front or by operating the similar keys on the included remote control. All keys on the front except from the Mains switch (1) can be found on the remote control as well. -
Page 10: Polarity
Adjusting the volume The volume can be adjusted by turning the big wheel or pressing volume up/down on the remote control. The volume level is displayed in decibels and is adjusted in uniform steps of 0.1dB. A setting over 88.0dB is not recommended as this corresponds to max output with full scale digital input. -
Page 11: Mute
Mute When "Mute" is activated from the remote control the display shows "---" and the amp will be muted. Press the "Mute" button again to deactivate the mute status. If the volume is changed when Millennium is muted, the display will show the volume for 3 seconds. Advanced Set-up Check the mains voltage Attempting to operate the Millennium at an incorrect voltage can damage the unit! Power... -
Page 12: Rear Panel
Rear panel Fig 2: Millennium rear panel. Do not cover or obstruct the ventilation slots on the rear panel. 1) Speaker terminals 2) AD Converter Input 3) D4 Input AES EBU 4) IEC Mains power connector 5) Digital Outputs D AES EBU 6) Digital Output D 7) RS 232 Input and Output 8) Speaker terminals... -
Page 13: Digital Output
Digital Output The selected analog or digital input source is relayed to the digital output. Use the output for recording CD’s etc. Analog Inputs One of the two 5-pole XLRs is dedicated for the optional Millennium ADC, which will be clock synchronised and powered by the Millennium. -
Page 14: Remote Control
Remote Control The remote control is used to access the Millennium and replicate some of the buttons directly accessible on the front panel. The four buttons used for selecting which device to control are described below. To control the Millennium the AMP key should be pressed. -
Page 15: Software
Front panel operations The operations of the remote control receiver can be bypassed on the front panel for the Millennium. Bypassing the remote control is done with a long press on the Analog left selection key “A”. When the remote is turned off the Lyngdorf Logo blinks twice after a 2 sec. -
Page 16: Connectors
Connectors Mains Connector Mains voltage to the Millennium is applied via an IEC320 type connector. The supplied cable with safety ground should be used to connect the Millennium to a mains outlet. WARNING: Connect the power input only to the AC source printed on the label. -
Page 17: Technical Specifications
Technical specifications Audio Parameter Value Note Balanced input connectors 3 pin XLR, gold-plated. Case=Gnd, Pin1=Gnd, Pin2=Hot(+), Pin3=Cold(-) Balanced input impedance 10kOhm AC-coupled. Unbalanced input connectors RCA (phono) jack, gold-plated. Case=Gnd, Tip=Hot(+) Unbalanced input impedance 10kOhm AC-coupled DAC Out impedance 75 Ohm Gain According to volume control setting. -
Page 18: Protection
Protection Parameter Value Note Grounding Mains earth, chassis and audio ground are connected internally. Output short circuit current ±60A Output DC voltage ±5V @ <0.1Hz Over temperature All heat sinks and mains- Auto resetting thermal fuse in transformer. mains transformer. Mains Parameter Value... -
Page 19: Trouble Shooting
Trouble Shooting Protection Mode A sophisticated monitoring circuit controls the operation of the amplifier. When an error is detected, the amplifier shuts down into protection mode immediately and indicates the status by flashing the Lyngdorf logo. Protection mode can be triggered by: 1. -
Page 20: Support
Technical assistance If you have any problems with or questions regarding your Lyngdorf Audio product, please contact your nearest Lyngdorf Audio representative or: Lyngdorf Audio Ulvevej 28...
