Summary of Contents for Lyngdorf Audio TDAI-1120

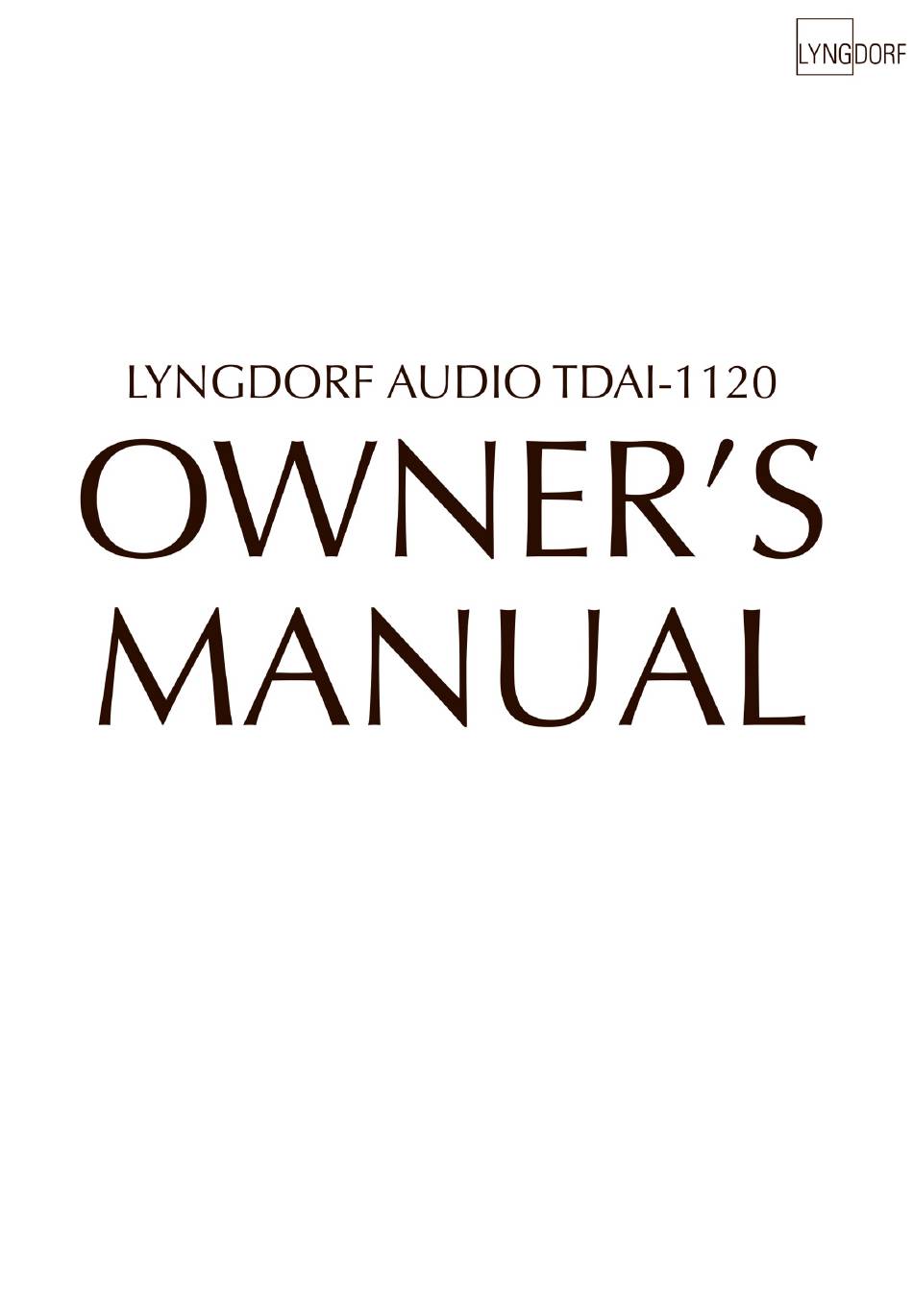

  • Page 1 FORSIDE Lyngdorf Audio TDAI-1120 – Owner’s manual...

  • Page 2: Table Of Contents

    SPEAKER PLACEMENT WITH ROOMPERFECT™ ......................7 CONNECTING A SUBWOOFER ............................ 7 SUBWOOFER PLACEMENT ............................8 TURNING ON THE TDAI-1120 FOR THE FIRST TIME ..................... 9 HOW TO USE THE TDAI-1120 ........................... 10 REMOTE CONTROL APPLICATION ..........................11 DISCOVER THE TDAI-1120 SETUP PAGE ........................12 FINALIZING THE SETUP ............................

  • Page 3: Welcome

    Perfect™. With this purchase, you have joined the ranks of an elite group of people who believe that perfect sound is more than a luxury. It’s a requirement. The TDAI-1120 will deliver an audio experience that will far exceed your expectations. We thank you for placing your confidence in Lyngdorf Audio.

  • Page 4: What Is In The Box

    RoomPerfect™ Microphone Microphone stand What is NOT in the box In order to install the TDAI-1120 you will need: A pair of loudspeakers Speaker cable from TDAI-1120 to each of the speakers (min. 1.5mm gauge) Lyngdorf Audio TDAI-1120 – Owner’s manual...

  • Page 5: How To Get Started

    If you have a local network, the connection by wire is recommended, as it provides more stable and faster network connection than Wi-Fi. The TDAI-1120 holds a wide range of connectors on the back for external audio sources in addition to the streaming options available through Bluetooth or your network.

  • Page 6: Front Panel Controls

    10. MAINS POWER: Always use a mains cable that fits your mains power outlets. The TDAI-1120 will automatically adjust to the mains power available. Front panel controls 1. Display Indicators for the selected input, Bluetooth connection and Wi-Fi connection. Indicator for RoomPerfect™...

  • Page 7: Tips For Setting Up Speakers

    BYPASS input of the subwoofer. In a traditional single subwoofer setup, connect the subwoofer to the left analog output on the TDAI-1120. For a stereo subwoofer setup, or if you have a subwoofer which has stereo input, use both left and right analog outputs.

  • Page 8: Subwoofer Placement

    Subwoofer placement With a single subwoofer, we recommend placing the subwoofer against the wall between the main speakers. With two subwoofers, you should position one in each front corner, in line with the main speakers. Lyngdorf Audio TDAI-1120 – Owner’s manual...

  • Page 9: Turning On The Tdai-1120 For The First Time

    Network connection by cable (recommended) If the TDAI-1120 is connected to your network by cable, you can now access the TDAI-1120 by the Lyngdorf Remote Application for IOS and Android devices, and you can stream to the TDAI-1120 from your music applications.

  • Page 10: How To Use The Tdai-1120

    How to use the TDAI-1120 Turn on the TDAI-1120 by pressing the Standby button Turn the Source button to select the music source – see selection on the Display. Press the same button to Mute the sound temporarily – un-Mute by pressing the same button.

  • Page 11: Remote Control Application

    For Android and IOS based phones you will be able to download the Lyngdorf Remote application, which will allow you to handle the operation of your TDAI-1120 – see below examples. Select input, listening position and voicing directly, and see the signal information in the volume wheel, which you can operate like you operate the volume on the amplifier itself.

  • Page 12: Discover The Tdai-1120 Setup Page

    Lyngdorf Remote Application. Discover the TDAI-1120 setup page When the TDAI-1120 is connected to your local network you can connect to your TDAI-1120 in different ways: Use the Lyngdorf remote application to discover the device and enter the homepage. In the setup menu, you will be able to find the network device address and a direct link to the setup page on your internet browser.

  • Page 13: Finalizing The Setup

    TDAI-1120 can offer. Open the web-page of the TDAI-1120 as described earlier, and we will introduce you to the available menus: The HOME screen refers to the daily operation as performed with the remote control. The page displays selected input and formats and you can control the volume setting The SETUP section will be described in the following pages.

  • Page 14: Setup Menu Walkthrough

    4.1.4 Default voicing Selects a default voicing for the input which is active when in this menu. If you always want extra bass on your gaming console audio, for example, set that voicing here. Lyngdorf Audio TDAI-1120 – Owner’s manual...

  • Page 15: 4.2 Roomperfect™ Setup

    Do not test this setting with a CD player or similar unregulated signal! This feature might be selected if you are using the TDAI-1120 in a home theater setup where it is used to power and calibrate the front speakers and/or subwoofer. Connect your home theater processor to the selected input.
  • Page 16 Enables and disables voicings to enable quicker selection of your preferred equalization. 4.5 Display 4.5.1 Display brightness Display brightness is used to control the brightness of the display. 4.5.2 Display timeout If enabled, the main display will switch off after 10 seconds of inactivity. Lyngdorf Audio TDAI-1120 – Owner’s manual...
  • Page 17 Enables and disables CEC audio system. When enabled the TDAI-1120 tells the TV to disable its built-in speaker and to use the ones connected to the TDAI-1120. Furthermore, this enables you to control the TDAI-1120 volume with the TV´s remote...
  • Page 18 If your TV doesn´t support ARC, you can connect an analog or digital audio output from the TV to an audio input on TDAI-1120. Select the used input in this menu so the TDAI-1120 will know from which input the audio from the TV is coming.
  • Page 19 If the distances are not identical, you need to enter it in order to ensure that the sound from each loudspeaker reaches the listening position simultaneously. To correctly measure the distance, please see Guided Speaker Setup. Lyngdorf Audio TDAI-1120 – Owner’s manual...
  • Page 20 Low pass removes the frequencies above the crossover frequency. Full range allows the signal to pass unfiltered. Headphone disables RoomPerfect™, voicings are still available. Muting the TDAI-1120 will only mute the speakers, not this output. Tape Out disables RoomPerfect™, voicings and volume control.
  • Page 21 Low pass removes the frequencies above the crossover frequency. Full range allows the signal to pass unfiltered. Headphone disables RoomPerfect™, voicings are still available. Muting the TDAI-1120 will only mute the speakers, not this output. Tape Out disables RoomPerfect™, voicings and volume control.
  • Page 22 Amp. Power Mode will start the TDAI-1120 on the input last used. If you want the TDAI-1120 to start on a specific input when triggered, choose it here. Note: If the TDAI-1120 has been switched to another input, the trigger command from the source connected will not turn off the amplifier.

  • Page 23: Measuring Distances

    Hold down the standby button on the front and turn on the main switch on the back. When the display says UPDATING, release the standby button and the TDAI-1120 will update the software. When the update is finished, the amplifier goes into standby.

  • Page 24: Roomperfect

    Press enter and a test signal will start from the left speaker. The TDAI-1120 will give an estimated optimal volume for calibrating the system or will accept the current volume. Adjust the volume if required and retry the measurement.

  • Page 25: Measuring Random Room Positions

    Room Knowledge is above 95%. The higher the Room Knowledge, the more accurate the room correction filters will be. Calculation of focus and global filters When room measurements are complete, the TDAI-1120 will calculate the focus and global filters automatically. Lyngdorf Audio TDAI-1120 – Owner’s manual...

  • Page 26: Installing The Usb Streaming Audio Driver

    (includes ASIO driver), which will ensure correct operation and optimal performance. The driver can be found on Lyngdorf.com. Mac and Linux users do not need to install any drivers to stream audio to the TDAI-1120. Using the USB streaming audio input To stream music to the TDAI-1120, connect it to your computer via a USB cable.

  • Page 27: Roomperfect™ Troubleshooting

    Cleaning and maintenance The TDAI-1120 does not require any regular maintenance except to keep its exterior clean. Simply wipe it with a clean, soft cloth. A small amount of non-abrasive cleaner may be used on the cloth to remove any dirt or fingerprints.

  • Page 28: Serial Control Manual

    To get a copy of the Serial Control Manual, which describes how the serial control interface of the device works, download it from www.lyngdorf.com, or contact your local Lyngdorf Audio representative. Writing software for controlling requires special knowledge. Lyngdorf Audio will not support in writing any serial control software.
  • Page 29 Lyngdorf Audio TDAI-1120 – Owner’s manual...
