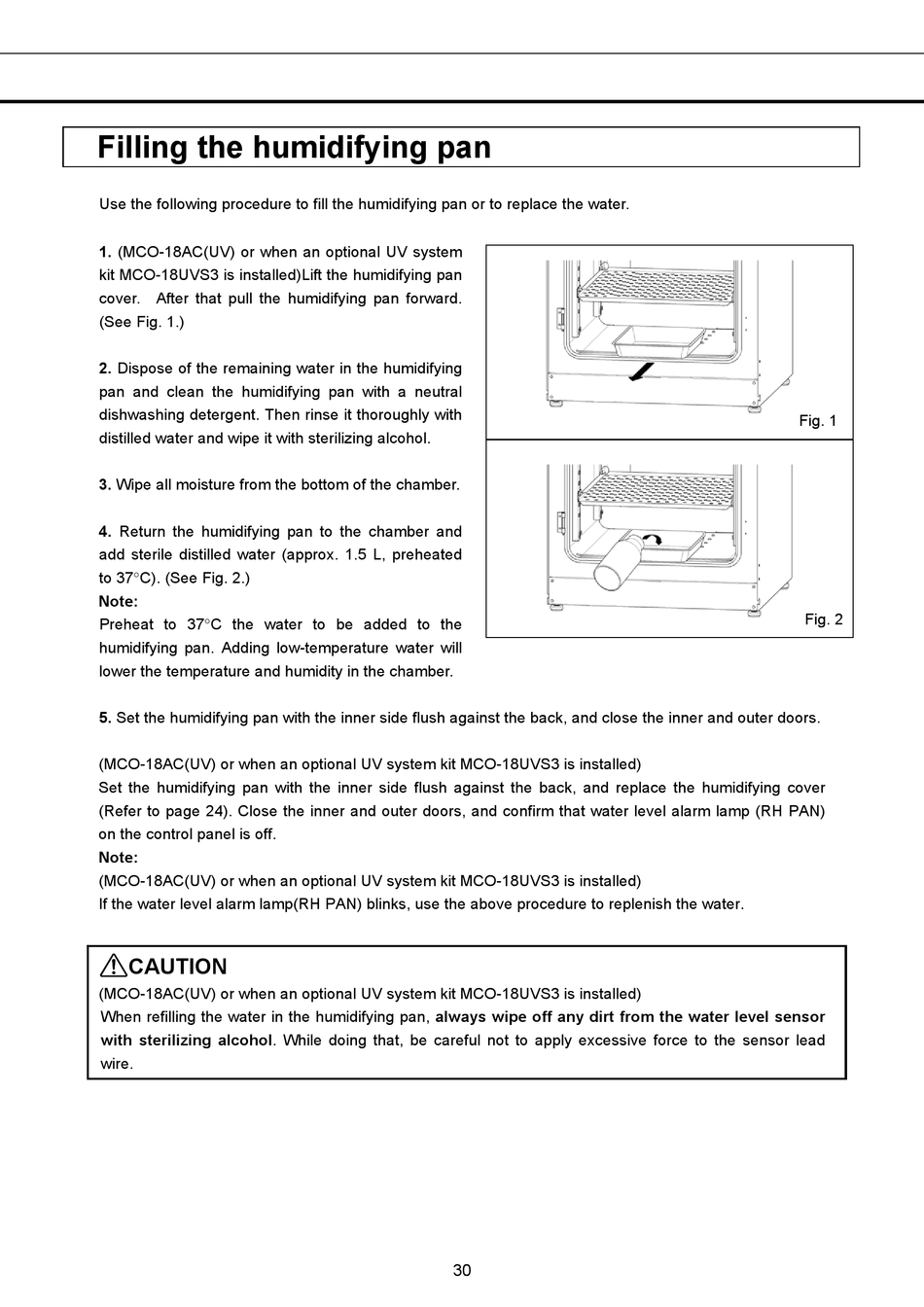

Filling the humidifying pan

Use the following procedure to fill the humidifying pan or to replace the water.
1. (MCO-18AC(UV) or when an optional UV system
kit MCO-18UVS3 is installed)Lift the humidifying pan
cover. After that pull the humidifying pan forward.
(See Fig. 1.)
2. Dispose of the remaining water in the humidifying
pan and clean the humidifying pan with a neutral
dishwashing detergent. Then rinse it thoroughly with
distilled water and wipe it with sterilizing alcohol.
3. Wipe all moisture from the bottom of the chamber.
4. Return the humidifying pan to the chamber and
add sterile distilled water (approx. 1.5 L, preheated
to 37C). (See Fig. 2.)
Note:
Preheat to 37C the water to be added to the
humidifying pan. Adding low-temperature water will
lower the temperature and humidity in the chamber.
5. Set the humidifying pan with the inner side flush against the back, and close the inner and outer doors.
(MCO-18AC(UV) or when an optional UV system kit MCO-18UVS3 is installed)
Set the humidifying pan with the inner side flush against the back, and replace the humidifying cover
(Refer to page 24). Close the inner and outer doors, and confirm that water level alarm lamp (RH PAN)
on the control panel is off.
Note:
(MCO-18AC(UV) or when an optional UV system kit MCO-18UVS3 is installed)
If the water level alarm lamp(RH PAN) blinks, use the above procedure to replenish the water.
CAUTION
(MCO-18AC(UV) or when an optional UV system kit MCO-18UVS3 is installed)
When refilling the water in the humidifying pan, always wipe off any dirt from the water level sensor
with sterilizing alcohol. While doing that, be careful not to apply excessive force to the sensor lead
wire.
30
Fig. 1
Fig. 2
