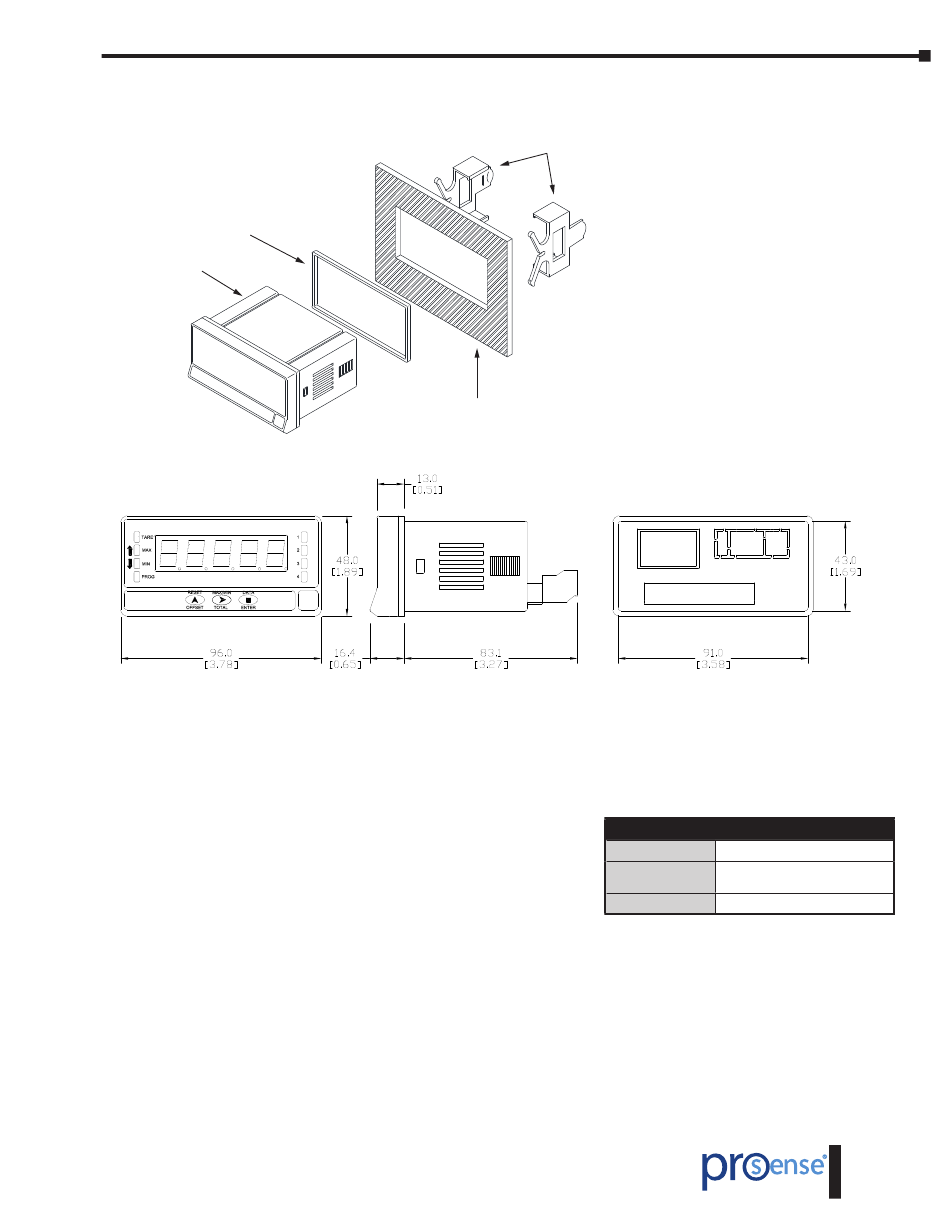

Dimensions and Mounting

Sealing gasket
DPM3 Meter
Dimensions mm [in]

Installation

To install the meter, prepare a 92mm x 45mm panel cut-out and slide the unit inwards making
sure to place the sealing gasket between the front side panel and the front bezel.
While holding the unit in place, put the fixing clips on both sides of the case and slide them
through the guide tracks until they reach the panel at
the rear side.
Press slightly to fasten the clips to the latching slots
on the case and get the unit fully assembled and close
fitted to achieve a good seal.
To remove the meter from the panel, pull the rear fixing
clips latching tabs outwards until they are disengaged,
then slide the fixing clips back over the case.
User Manual - DPM3-P Series Digital Panel Meters
(2) Fixing clips
Panel mounting surface
DPM3-P User Manual, 1st Edition
Installation
Dimensions
96 x 48 x 83.1mm (1/8 DIN)
92 x 45mm
Panel Cutout
(Max. panel thickness 10mm)
Case Material
Polycarbonate UL 94 V-0
