User Manual - DPM2-E Series Electrical Panel Meters
Features
• 96 x 48mm 1/8 DIN
• Simple menu driven pushbutton configuration
• 4 digit (-9999 to 9999) red LED display
• Selectable decimal point
• AC/DC voltage input 600V, 200V, 20V
• AC/DC current input 1A, 5A, shunt 60mV, shunt 100mV
• AC or DC powered
• Optional (2) Form C SPDT relays
• Display scaling or teaching modes
• Configuration for direct or reverse acting
• Minimum and maximum value memory
• Total or selective configuration lock out
• 3 year warranty

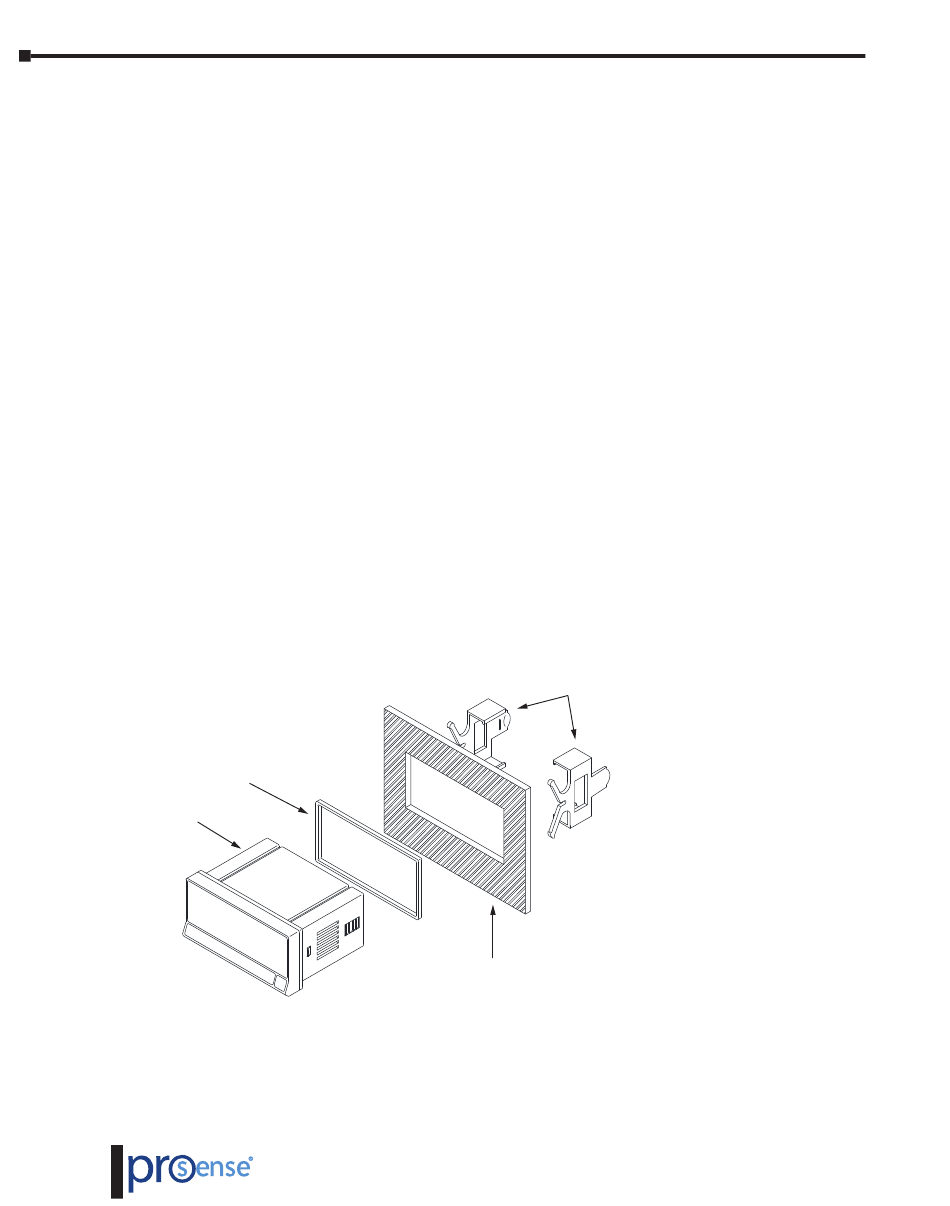

Dimensions and Mounting
Sealing gasket
DPM2 Meter
6
N.O. or N.C. operation
Activation on increasing or decreasing input signal
Hysteresis or time delay operation
DPM2-E Electrical User Manual, 1st Edition
(2) Fixing clips
Panel mounting surface
