Counter Mode Programming

The input setup is available on the 'CnInp' module which allows configuration of the counter
mode and totalizer operation.
Counter Modes
uP: Up count
do: Down count
In-A: Allows count on A input regardless of input B
InA-B: Pulses applied at the A input are added or subtracted to the count display if the B
input is at low level and being used as inhibited input
uP-do IndEP: Pulses applied at the A input are added to the count display while pulses at the
B input are subtracted
uP-do dIrEC: When B input is at low level, the pulses applied at the A input increment the
count. When B input is at high level, the pulses at the A input decrement the count
uP-do PHASE: The rising edges at the A input increment the count if the B input is at low
level. The falling edges at the A input decrement the count if the B input is at low
16

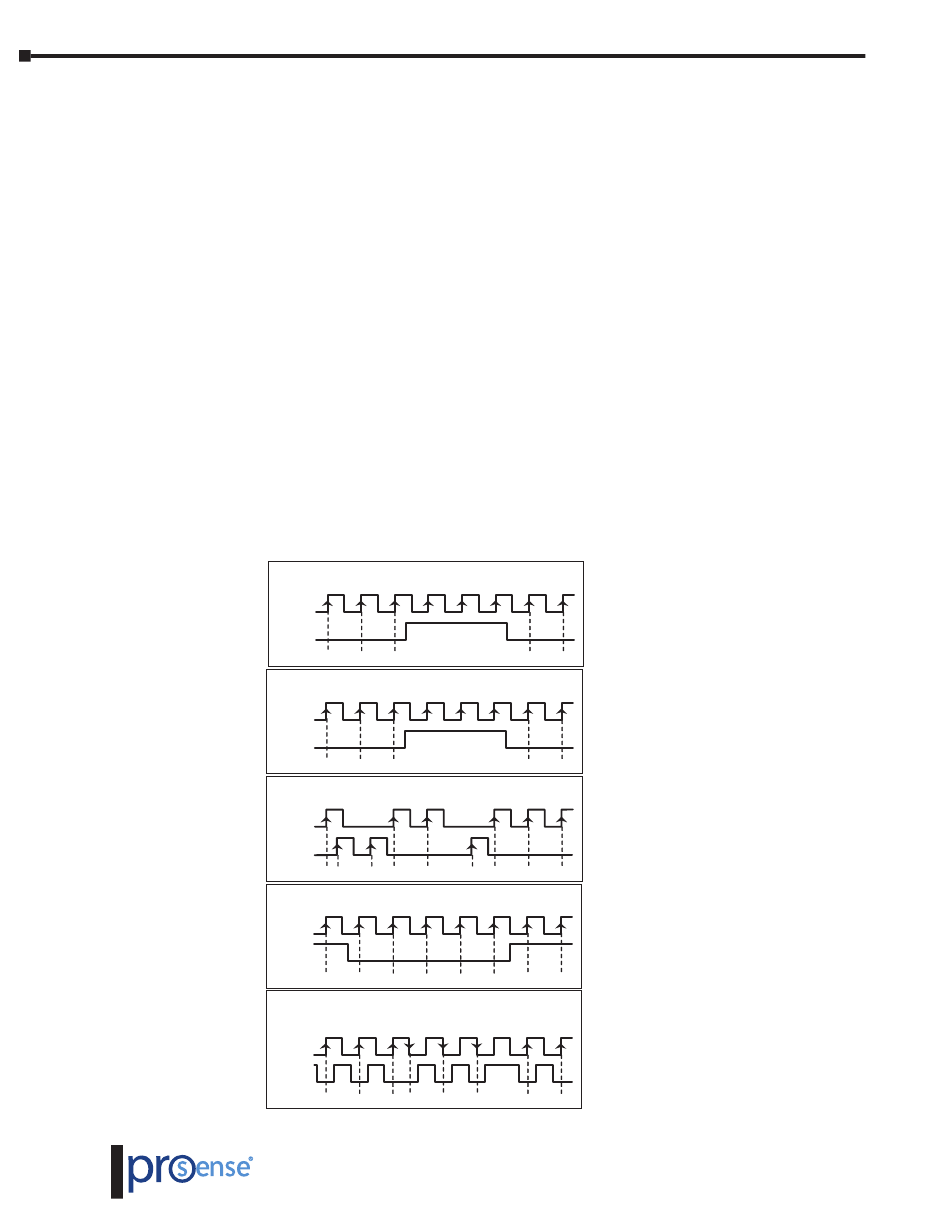

MODE uP InA-B U
NIDIRECTIONAL COUNTER
A counts up if B is '0'. B inhibits count.
input A
input B
process 1 2 3
MODE do I A-B U
N NIDIRECTIONAL COUNTER
A counts down if B is '0'. B inhibits count.
input A
input B
process 8 7 6
MODE P-do I EP B
U ND IDIRECTIONAL COUNTER
A counts up. B counts down
input A
input B
process 1 0 -1 0 1
MODE P-do I EC B
U D R IDIRECTIONAL COUNTER
A counts up if B is '0' and counts down if B is '1'
input A
input B
process -1 0 1 2
MODE P-do PHASE B
U IDIRECTIONAL COUNTER
Rising edge of A counts up if B is '0'. Falling edge of A
counts down if B is '0'.
input A
input B
process 1 2 3 2
DPM3-P User Manual, 1st Edition
4 5
5 4
0 1 2 3
3 4 3 2
1 0 1 2
