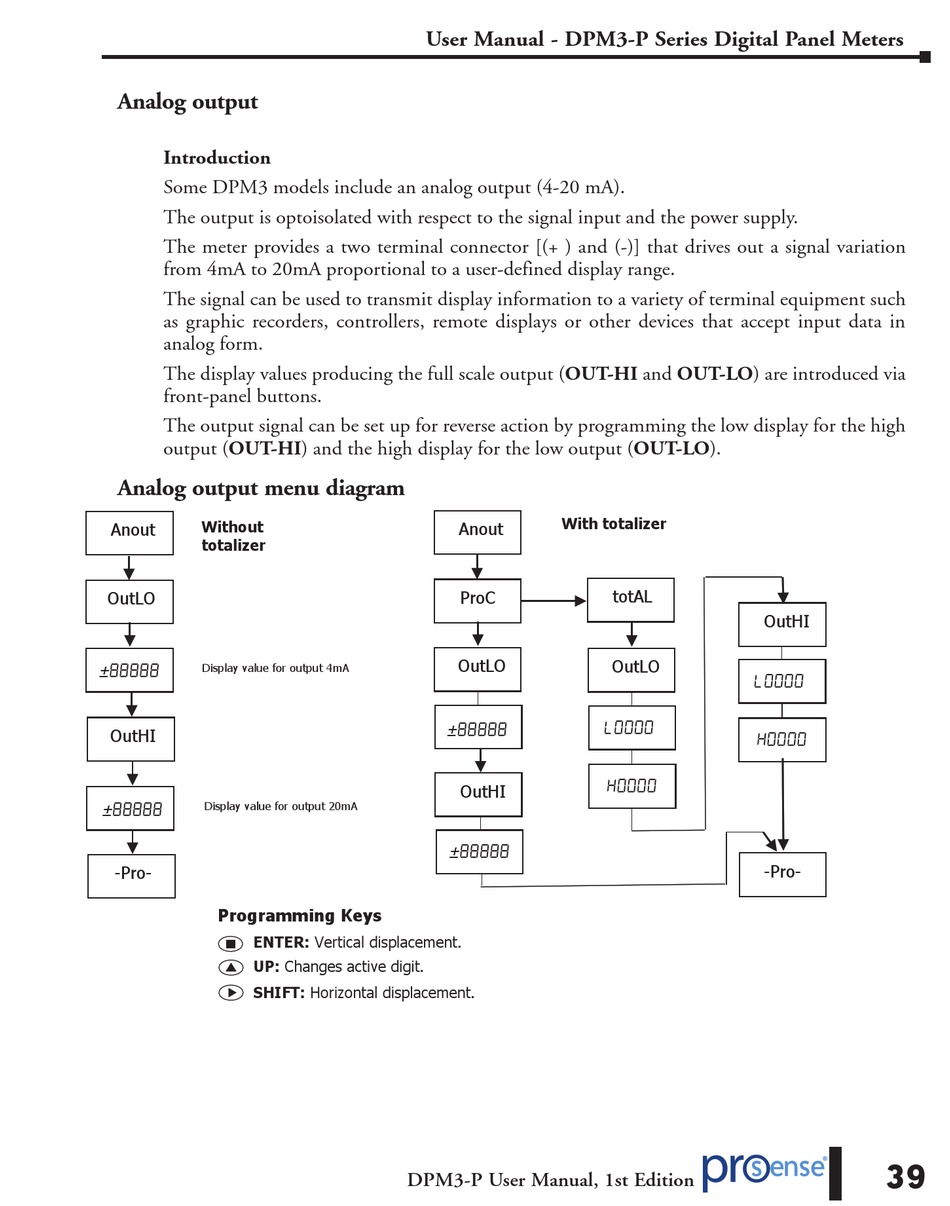

Analog output

Introduction
Some DPM3 models include an analog output (4-20 mA).
The output is optoisolated with respect to the signal input and the power supply.
The meter provides a two terminal connector [(+ ) and (-)] that drives out a signal variation
from 4mA to 20mA proportional to a user-defined display range.
The signal can be used to transmit display information to a variety of terminal equipment such
as graphic recorders, controllers, remote displays or other devices that accept input data in
analog form.
The display values producing the full scale output (OUT-HI and OUT-LO) are introduced via
front-panel buttons.
The output signal can be set up for reverse action by programming the low display for the high
output (OUT-HI) and the high display for the low output (OUT-LO).

Analog output menu diagram

Without
Anout
totalizer
OutLO
±
Display value for output 4mA
OutHI
±
Display value for output 20mA
-Pro-
Programming Keys
ENTER: Vertical displacement.
UP: Changes active digit.
SHIFT: Horizontal displacement.
User Manual - DPM3-P Series Digital Panel Meters
With totalizer
Anout
ProC
OutLO
±
OutHI
±
DPM3-P User Manual, 1st Edition
totAL
OutHI
OutLO




-Pro-
