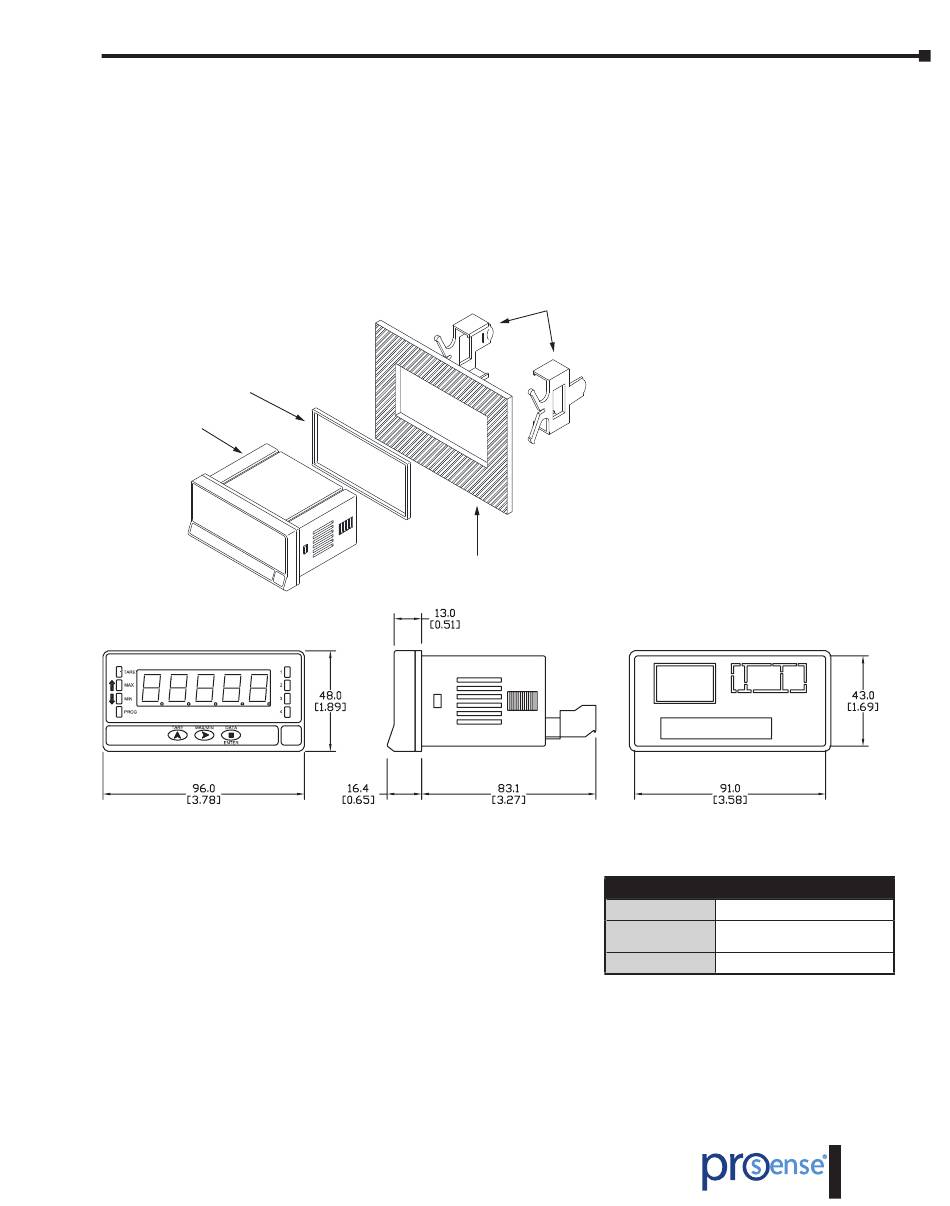

Dimensions and Mounting

Sealing gasket
DPM3 Meter

Installation

To install the instrument, prepare a 92mm x 45mm
panel cut-out and slide the unit inwards making sure
to place the sealing gasket between the front side panel
and the front bezel.
While holding the unit in place, put the fixing clips on
both sides of the case and slide them through the guide
tracks until they reach the panel at the rear side.
Press slightly to fasten the clips to the latching slots on the case and get the unit fully assembled
and close fitted to achieve a good seal.
To remove the instrument from the panel, pull the rear fixing clips latching tabs outwards until
they are disengaged, then slide the fixing clips back over the case.
Tare
Hold
Panel mounting surface
DPM3 User Manual, 1st Edition
User Manual - DPM3 Series Panel Meters
(2) Fixing clips
Dimensions
Panel Cutout
Case Material
Installation
96 x 48 x 83.1mm (1/8 DIN)
92 x 45mm
(Max. panel thickness 10mm)
Polycarbonate UL 94 V-0
7
