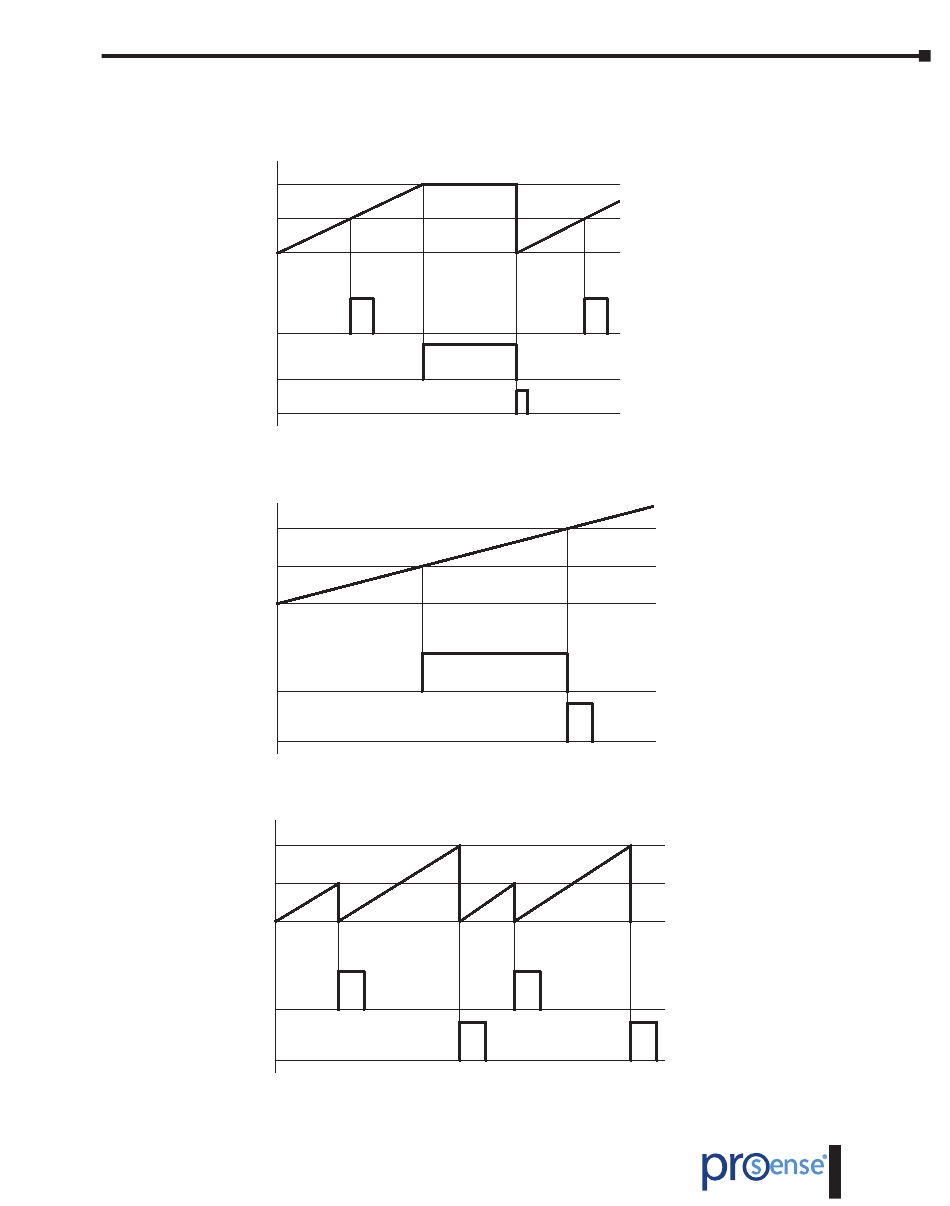

Mode 3 - Stop: The process counter or total (the one referred to the set point) if it is active
is stopped when it reaches the setpoint. Counters are restarted when the counter to which the
setpoint is referred is reset.
SET2
SET1
0 or Offset
OUT1
Pulse 1s
Modo 1
OUT2
Latch
Modo 3
RESET
Mode 4 - Clear: The output is activated in latch or pulse mode when the setpoint is reached.
The previous output is disabled in the order Set1, Set2, Set3, Set4.
SET1
SET4
0 or Offset
OUT4
Latch
Mode 1
OUT1
Pulse 1s
Mode 4
Mode 5 - Cascade: When the counter reaches the preset, the output is activated and the
display is reset, then the operation is repeated with the following set points.
SET2
SET1
0 or Offset
OUT1
Pulse 1s
Mode 5
OUT2
Pulse 1s
Mode 5
