User Manual - DPM1-P Series Panel Meters

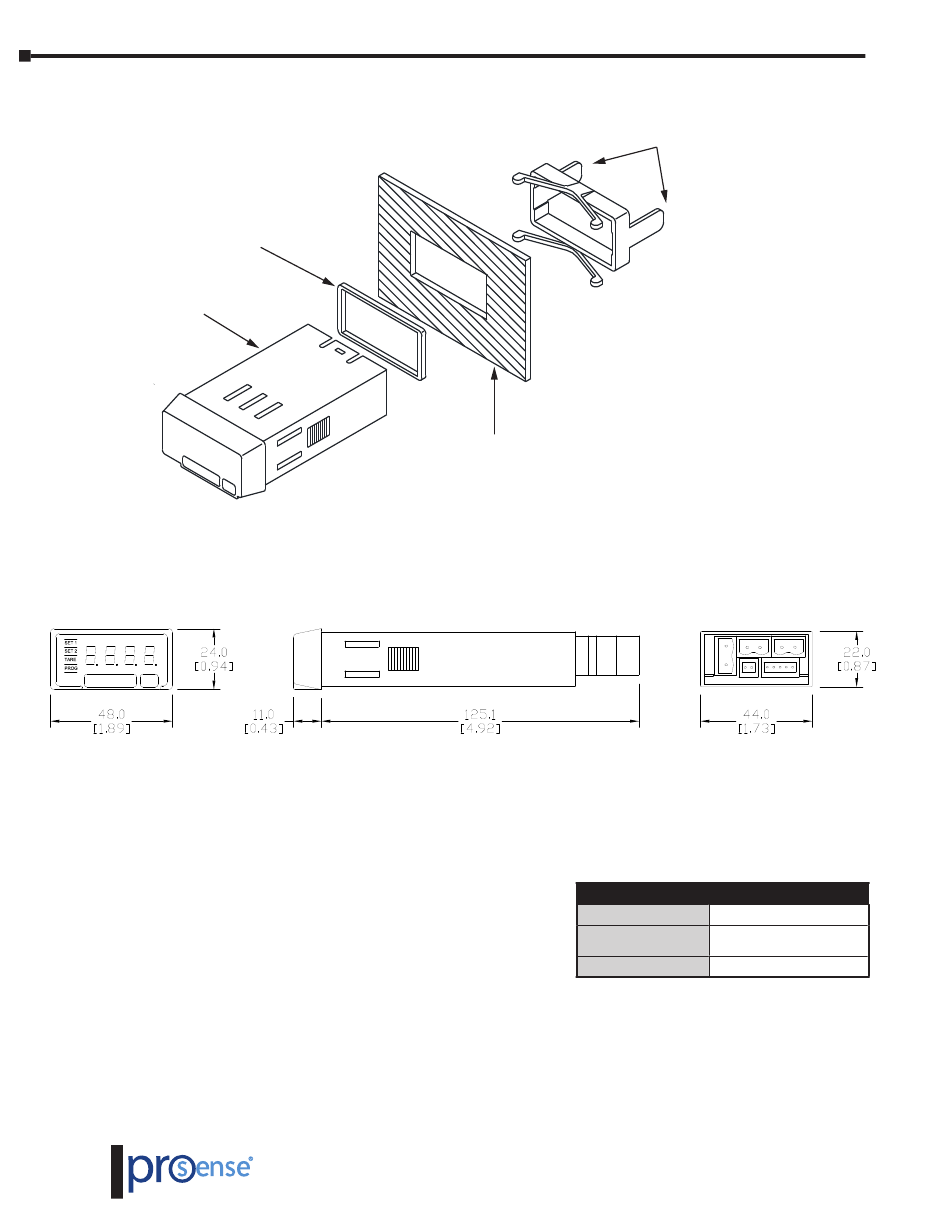

Dimensions and Mounting
Sealing gasket
DPM1 Meter
Dimensions mm [in]
Installation
To install the meter, prepare a 45mm x 22mm panel cut-out and slide the unit inwards making
sure to place the sealing gasket between the front side
panel and the front bezel.
While holding the unit in place, put the fixing clip
around the case and slide it until it reaches the panel
at the rear side.
Press slightly to fasten the clips to the latching slots
on the case and get the unit fully assembled and close
fitted to achieve a good seal.
To remove the meter from the panel, pull the rear fixing clips latching tabs outwards until they
are disengaged, then slide the fixing clips back over the case.
6
DPM1-P User Manual, 1st Edition
Panel mounting surface
Dimensions
Panel Cutout
Case Material
Fixing clip
Installation
48 x 24 x 125.1mm (1/32 DIN)
45 x 22mm
(Max. panel thickness 7mm)
Polycarbonate UL 94 V-0
