Run Mode Programming

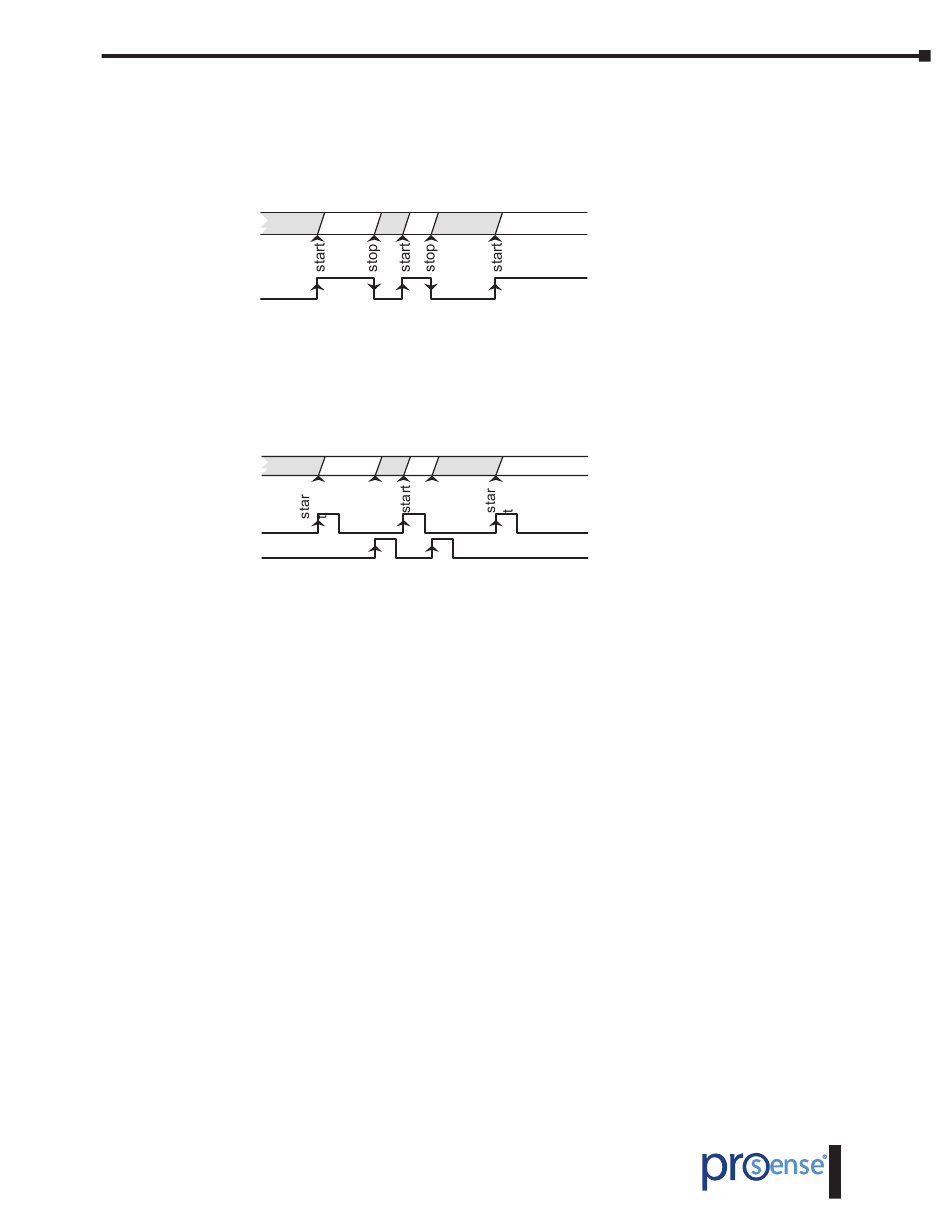

Start and Stop modes Mode In-A
MODE In-A
display
input A
MODE In-AB START on rising edge if input A.
display
input A
input B
Up or Down Direction
uP: The meter acts as a stopwatch. It counts up the time elapsed between the START and
STOP signals. When accumulated value exceeds 99999, the display reads OVER.
do: The meter acts as a timer. It counts down from a user programmed offset to zero (a
setpoint may be used to perform any function at this point).
A reset operation sets the timer to the offset value; the START signal initiates the timing
count. When value reaches 0, the display remains at zero.
Time Range
There are four selectable time ranges:
Hr 99999 h (hours)
H.MM 999 h 59 m (hours and minutes)
M.SS 999 m 59 s (minutes and seconds)
0.01-S 999.99 s (seconds with hundredths)
The decimal point appears in the position according to the programmed time range.
(In a power failure, the meter saves the time value and the internal count value).
In a scale change or power failure, the indicator saves the value registered on the display and
also the fraction of time that was accumulated internally with the following resolutions:
Hr 1 second
H.MM 1 second
M.SS 0.1 second
0.01-S 0.01 second
User Manual - DPM3-P Series Digital Panel Meters
START on rising edge of input A.
STOP on falling edge of input A.
t1 t2
STOP on rising edge of input B.
stop
stop
t1 t2
DPM3-P User Manual, 1st Edition
t3
t3
21
