Direct access to the relay setpoints value programming

It is possible to directly access the relay setpoint values without the need to go through the

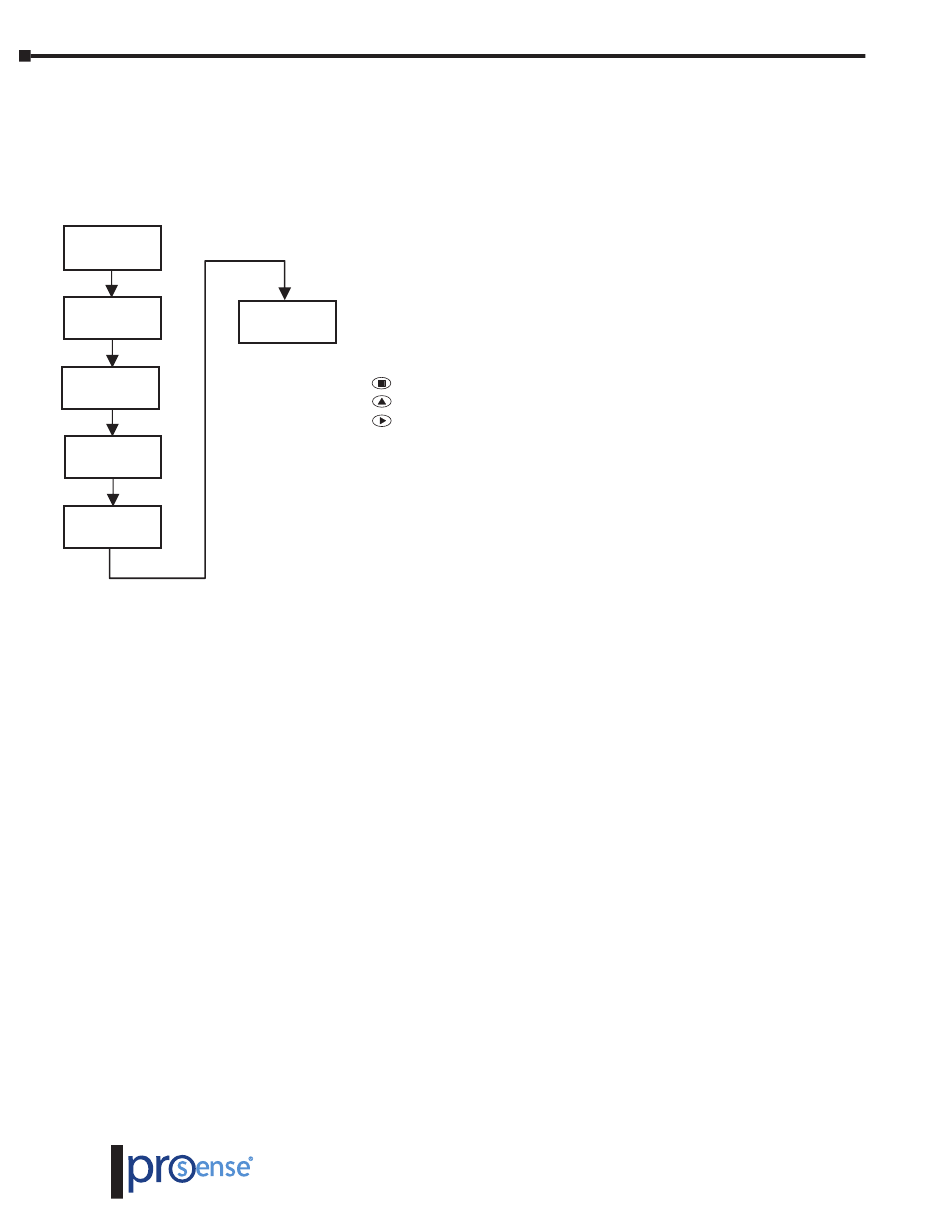

programming menu just by pressing the UP key in Pro mode, as shown in diagram below.
Setpoints configured at "off " do not appear on the list".
-Pro -
SEt 1
±188.88
SEt 2
±188.88
38
Remember that the decimal point
position is determined by what has
been programmed during the meter
StorE
input and display configuration.
Programming Keys
ENTER: Vertical displacement.
UP: Changes active digit.
SHIFT: Horizontal displacement.
