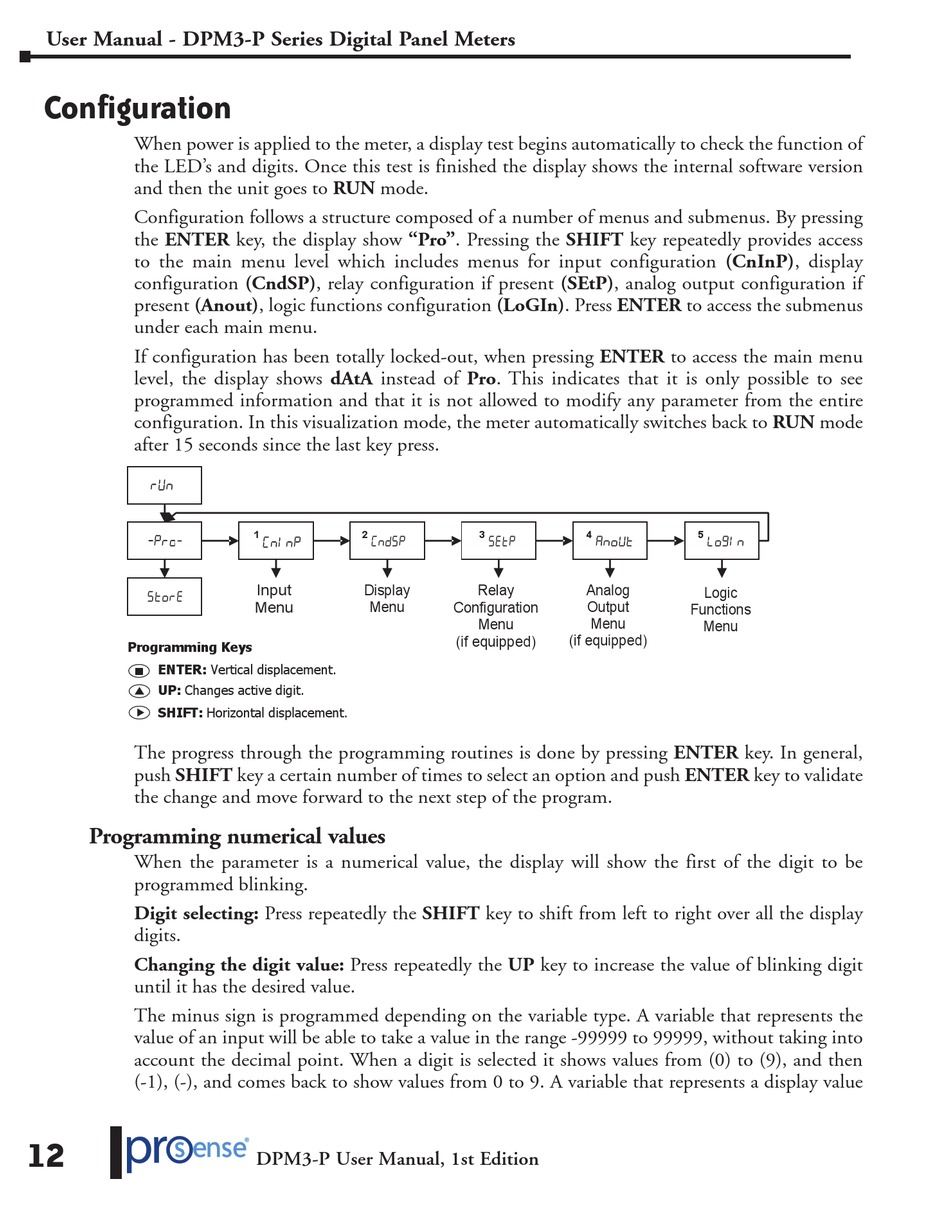

Configuration

When power is applied to the meter, a display test begins automatically to check the function of
the LED's and digits. Once this test is finished the display shows the internal software version
and then the unit goes to RUN mode.
Configuration follows a structure composed of a number of menus and submenus. By pressing
the ENTER key, the display show "Pro". Pressing the SHIFT key repeatedly provides access
to the main menu level which includes menus for input configuration (CnInP), display
configuration (CndSP), relay configuration if present (SEtP), analog output configuration if
present (Anout), logic functions configuration (LoGIn). Press ENTER to access the submenus
under each main menu.
If configuration has been totally locked-out, when pressing ENTER to access the main menu
level, the display shows dAtA instead of Pro. This indicates that it is only possible to see
programmed information and that it is not allowed to modify any parameter from the entire
configuration. In this visualization mode, the meter automatically switches back to RUN mode
after 15 seconds since the last key press.

-



Programming Keys
ENTER: Vertical displacement.
UP: Changes active digit.
SHIFT: Horizontal displacement.
The progress through the programming routines is done by pressing ENTER key. In general,
push SHIFT key a certain number of times to select an option and push ENTER key to validate
the change and move forward to the next step of the program.

Programming numerical values

When the parameter is a numerical value, the display will show the first of the digit to be
programmed blinking.
Digit selecting: Press repeatedly the SHIFT key to shift from left to right over all the display
digits.
Changing the digit value: Press repeatedly the UP key to increase the value of blinking digit
until it has the desired value.
The minus sign is programmed depending on the variable type. A variable that represents the
value of an input will be able to take a value in the range -99999 to 99999, without taking into
account the decimal point. When a digit is selected it shows values from (0) to (9), and then
(-1), (-), and comes back to show values from 0 to 9. A variable that represents a display value
12
1 2


Input Display
Menu
Menu
DPM3-P User Manual, 1st Edition
3 4
 
Relay Analog
Configuration Output
Menu
Menu
(if equipped)
(if equipped)
5

Logic
Functions
Menu
