IWCi
REMOTE CONTROL UNIT

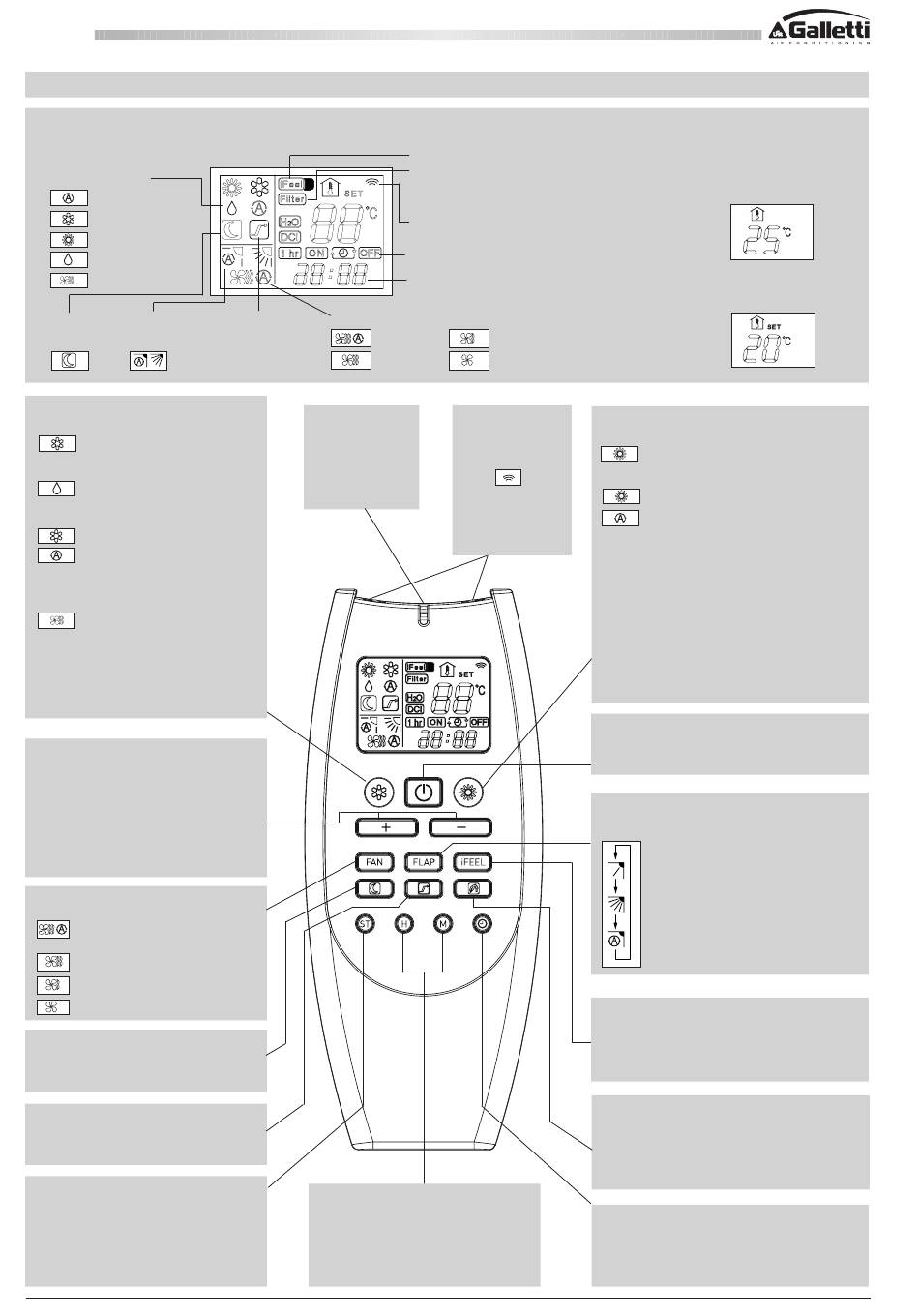

DISPLAY
Information is displayed when the remote controller is
switched on. If switched off, only the operating mode, the
room temperature and the clock are shown
Operation mode
Automatic
Cooling
Heating
Dehumidification
Fan
Economy Oscillation
mode Flap
MODE SELECTOR BUTTON
Press this button to modify the unit mode.
(cooling)
The unit makes the room cooler.
(dry)
The unit reduces the humidity in the room.
(automatic)
The unit makes the room cooler adjusting
the setpoint according to the perceived
temperature.
(fan)
The unit works only as a circulation fan.
Press the button until no icon is
displayed, then adjust the type of
ventilation with the FAN button.
TEMPERATURE SETTING BUTTONS
- (cooler)
Press this button to decrease the set
temperature.
+ (warmer)
Press this button to increase the set
temperature.
"FAN " BUTTON (fan speed)
Fan speed is automatically
selected by the microcomputer.
High speed.
Medium speed.
Low speed.
ECONOMY MODE BUTTON
Press this button in order to select the
NIGHT/ECO mode.
"HIGH POWER" BUTTON
Press this button in order to select the
HIGH POWER mode.
CLOK AND TIMER SETTING BUTTON
Press this button in order to:
• set the clock
• set the ON/OFF timer
For details refer to paragraphs "SETTING
THE HOUR" and "SETTING THE TIMER".
42 42
È severamente vietata la riproduzione anche parziale di questo manuale / All copying, even partial, of this manual is strictly forbidden
C
Fan speed
HIGH POWER
mode Automatic
High speed
SENSOR
A t e m p e r a t u r e
sensor inside the
remote control unit
detects the room
temperature.
HOURS AND MINUTES SETTING
BUTTONS
With these buttons is possible to set the
clock and the timer. For details refer to
paragraphs " SETTING THE HOUR" and
"SETTING THE TIMER".
I FEEL mode is active
(remote controller sensor active)
Disables the temperature error that can not be reached
Displayed when transmitting data
Timer modes
Clock
Medium speed
Low speed
TRANSMITTER
When you press
the buttons of the
remote control unit,
the mark
a p p e a r s o n t h e
display to transmit
the setting changes
to the receiver in the
unit.
C
Room
temperature
Set point
temperature
MODE SELECTOR BUTTON
Press this button to modify the unit mode.
(heating)
The unit makes the room warmer.
(automatic)
The unit makes the room warmer adjusting the
setpoint according to the perceived temperature.
ON/OFF BUTTON
This button turns the unit ON and OFF.
FLAP BUTTON
Press this button in order to select the desired
function.
Fixed: six position
Continous oscillations
Automatically oscillations
IFEEL SENSOR SELECTOR
Press this button to modify the active setting
for room temperature detection (from remote
controller to unit and viceversa).
CLEAN BUTTON
Press this button to disable the error "Set
temperature can not be reached" (see
DIAGNOSTICS' TABLE) and to set modbus
address (see section "MODBUS CONNECTION".
TIMER SELECTION BUTTON
Press this button to select the type of timer to
activate. For details refer to paragraph "SETTING
THE TIMER".
WC66000119 - Rev 01
