Galletti IWC Series Installation, Use And Maintenance Manual page 35

IWCi
Codice Kit - Valve Kit Code Unità - Unit
IWYVK2V04410 IWCi03-04
IWYVK2V04420* IWCi03-04
IWYVK2V04430 IWCi03-04
IWYVK2V05210 IWCi03-04-05
IWYVK2V05220* IWCi03-04-05
IWYVK2V05230 IWCi03-04-05
IWYVK2V10210 IWCi06-08-10
IWYVK2V10220* IWCi06-08-10
IWYVK2V10230 IWCi06-08-10
IWYVK3V04410 IWCi03-04
IWYVK3V04420* IWCi03-04
IWYVK3V04430 IWCi03-04
IWYVK3V05210 IWCi03-04-05
IWYVK3V05220* IWCi03-04-05
IWYVK3V05230 IWCi03-04-05
IWYVK3V10210 IWCi06-08-10
IWYVK3V10220* IWCi06-08-10
IWYVK3V10230 IWCi06-08-10
IWY4K3V05210 IWCi03-04-05
IWY4K3V05220* IWCi03-04-05
IWY4K3V05230 IWCi03-04-05
IWY4K3V10210 IWCi06-08-10
IWY4K3V10220 IWCi06-08-10
IWY4K3V10230 IWCi06-08-10
* Le valvole modulanti possono essere gestite nelle versioni per comando a filo. Sono richiesti comando MyComfort Large o EVO ed alimentazione aggiuntiva a 24 V
* The modulating valves can be managed in models configured for a wired controller. A MyComfort Large or EVO controller is required, along with an additional 24 V
power supply.
I modelli dotati di telecomando ad infrarossi, possono montare esclusivamente un kit valvole motorizzato con attuatore a 230 Volt
All models provided with infrared remote control can mount the 230 volt valve kit motors only.
WC66000119 - Rev 01 È severamente vietata la riproduzione anche parziale di questo manuale / All copying, even partial, of this manual is strictly forbidden

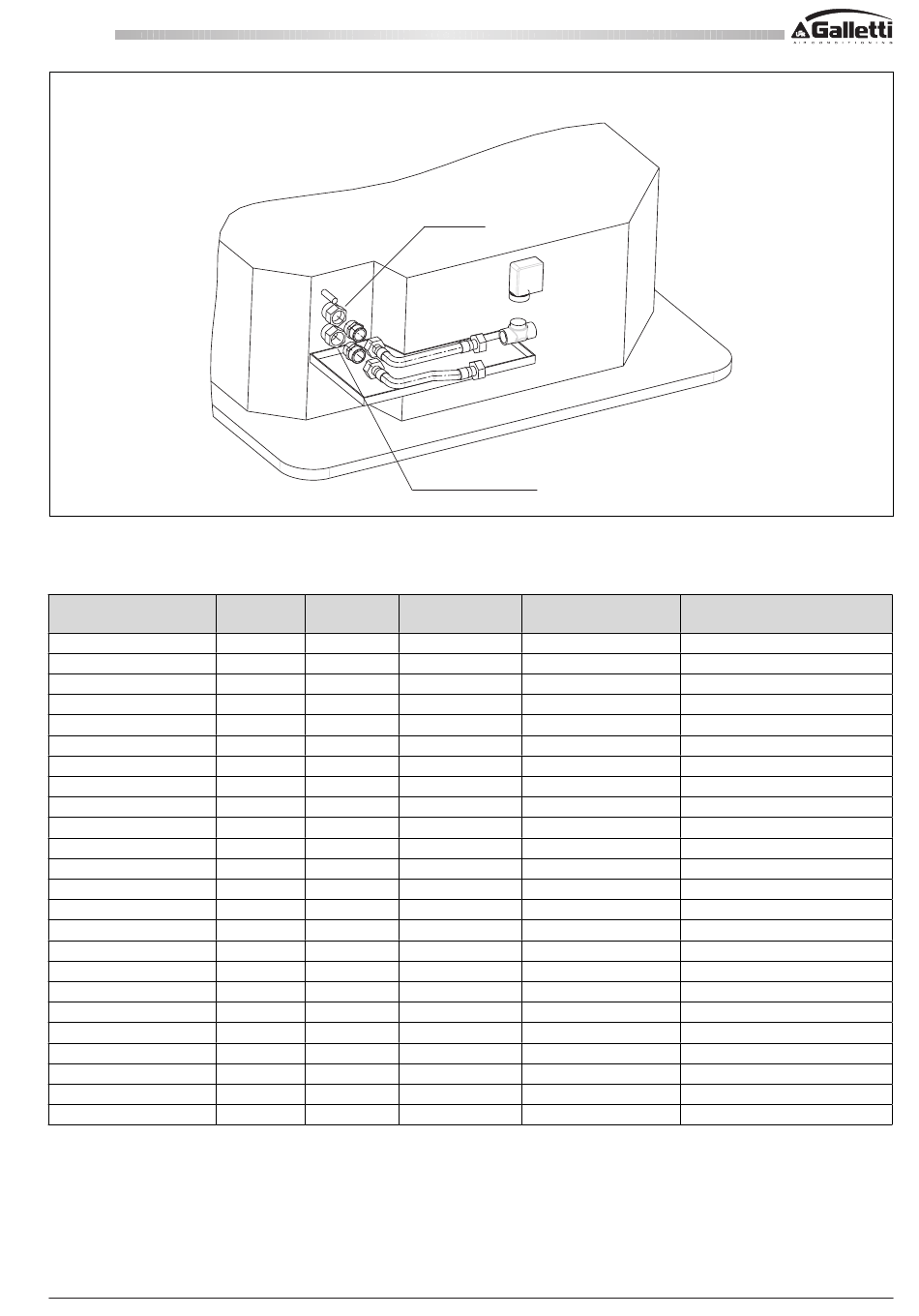

IWCi 06-08-10 2 TUBI, IWCi 06-08-10 2 PIPES
Valvola a 2 vie - 2-Way valve
Uscita acqua
Water outlet
Ingresso acqua
Water inlet
Versione -
Valvola - Valve Type
Version
4 tubi-pipes 2 vie-way
4 tubi-pipes 2 vie-way
4 tubi-pipes 2 vie-way
2 tubi-pipes 2 vie-way
2 tubi-pipes 2 vie-way
2 tubi-pipes 2 vie-way
2 tubi-pipes 2 vie-way
2 tubi-pipes 2 vie-way
2 tubi-pipes 2 vie-way
4 tubi-pipes 3 vie-way
4 tubi-pipes 3 vie-way
4 tubi-pipes 3 vie-way
2 tubi-pipes 3 vie-way
2 tubi-pipes 3 vie-way
2 tubi-pipes 3 vie-way
2 tubi-pipes 3 vie-way
2 tubi-pipes 3 vie-way
2 tubi-pipes 3 vie-way
2 tubi-pipes KIT 4x2
2 tubi-pipes KIT 4x2
2 tubi-pipes KIT 4x2
2 tubi-pipes KIT 4x2
2 tubi-pipes KIT 4x2
2 tubi-pipes KIT 4x2
Attuatore - Actuator Attacchi Idraulici - Water connections
230 V - ON/OFF 1/2" Gas-F
Modulante-Modulating 0-10V 1/2" Gas-F
24V - ON/OFF 1/2" Gas-F
230 V - ON/OFF 1/2" Gas-F
Modulante-Modulating 0-10V 1/2" Gas-F
24V - ON/OFF 1/2" Gas-F
230 V - ON/OFF 3/4" Gas-F
Modulante-Modulating 0-10V 3/4" Gas-F
24V - ON/OFF 3/4" Gas-F
230 V - ON/OFF 1/2" Gas-F
Modulante-Modulating 0-10V 1/2" Gas-F
24V - ON/OFF 1/2" Gas-F
230 V - ON/OFF 1/2" Gas-F
Modulante-Modulating 0-10V 1/2" Gas-F
24V - ON/OFF 1/2" Gas-F
230 V - ON/OFF 3/4" Gas-F
Modulante-Modulating 0-10V 3/4" Gas-F
24V - ON/OFF 3/4" Gas-F
230 V - ON/OFF 1/2" Gas-F
Modulante-Modulating 0-10V 1/2" Gas-F
24V - ON/OFF 1/2" Gas-F
230 V - ON/OFF 3/4" Gas-F
Modulante-Modulating 0-10V 3/4" Gas-F
24V - ON/OFF 3/4" Gas-F
