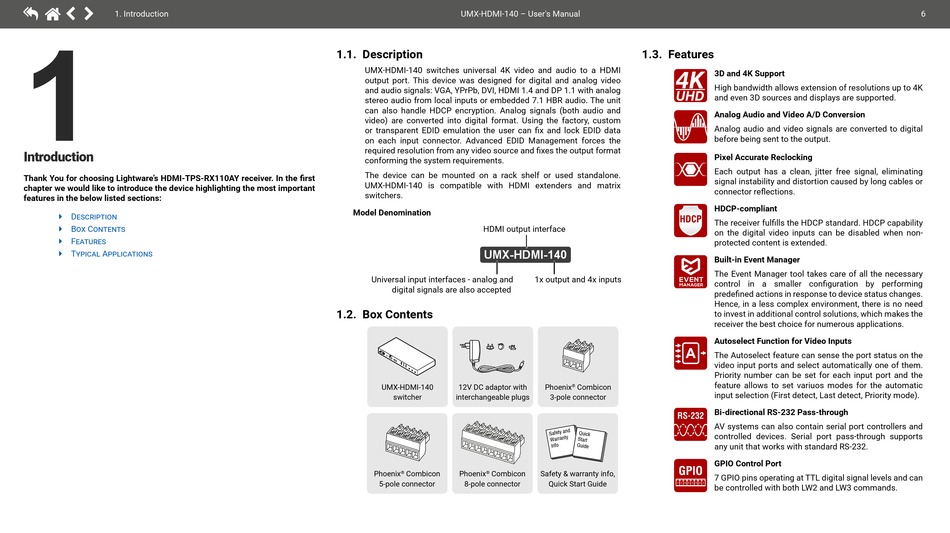

1. Introduction

1
I ntroduction
Thank You for choosing Lightware's HDMI-TPS-RX110AY receiver. In the first
chapter we would like to introduce the device highlighting the most important
features in the below listed sections:

Description

Î

Box Contents

Î

Features

Î
Typical Applications
Î
UMX-HDMI-140 – User's Manual
1.1. Description
UMX-HDMI-140 switches universal 4K video and audio to a HDMI
output port. This device was designed for digital and analog video
and audio signals: VGA, YPrPb, DVI, HDMI 1.4 and DP 1.1 with analog
stereo audio from local inputs or embedded 7.1 HBR audio. The unit
can also handle HDCP encryption. Analog signals (both audio and
video) are converted into digital format. Using the factory, custom
or transparent EDID emulation the user can fix and lock EDID data
on each input connector. Advanced EDID Management forces the
required resolution from any video source and fixes the output format
conforming the system requirements.
The device can be mounted on a rack shelf or used standalone.
UMX-HDMI-140 is compatible with HDMI extenders and matrix
switchers.
Model Denomination
HDMI output interface
UMX-HDMI-140
Universal input interfaces - analog and
digital signals are also accepted
1.2. Box Contents
UMX-HDMI-140 12V DC adaptor with
switcher interchangeable plugs
Phoenix Combicon Phoenix Combicon
® ®
5-pole connector 8-pole connector
1.3. Features
1x output and 4x inputs
Phoenix Combicon
®
3-pole connector
RS-232
Safety & warranty info,
Quick Start Guide
3D and 4K Support
High bandwidth allows extension of resolutions up to 4K
and even 3D sources and displays are supported.
Analog Audio and Video A/D Conversion
Analog audio and video signals are converted to digital
before being sent to the output.
Pixel Accurate Reclocking
Each output has a clean, jitter free signal, eliminating
signal instability and distortion caused by long cables or
connector reflections.
HDCP-compliant
The receiver fulfills the HDCP standard. HDCP capability
on the digital video inputs can be disabled when non-
protected content is extended.
Built-in Event Manager
The Event Manager tool takes care of all the necessary
control in a smaller configuration by performing
predefined actions in response to device status changes.
Hence, in a less complex environment, there is no need
to invest in additional control solutions, which makes the
receiver the best choice for numerous applications.
Autoselect Function for Video Inputs
The Autoselect feature can sense the port status on the
video input ports and select automatically one of them.
Priority number can be set for each input port and the
feature allows to set variuos modes for the automatic
input selection (First detect, Last detect, Priority mode).
Bi-directional RS-232 Pass-through
AV systems can also contain serial port controllers and
controlled devices. Serial port pass-through supports
any unit that works with standard RS-232.
GPIO Control Port
7 GPIO pins operating at TTL digital signal levels and can
be controlled with both LW2 and LW3 commands.
6
