AccuPlot and AccuJet Maintenance

AJ-520 Pen Maintenance

Figure 5-1 illustrates the AJ-520 longlife pen assembly.
WARNING: F
AILURE TO DISABLE SERVO POWER BEFORE PUTTING YOUR HANDS IN
OR NEAR THE PLOTTING AREA CAN RESULT IN INJURY
ink supply tube
pen

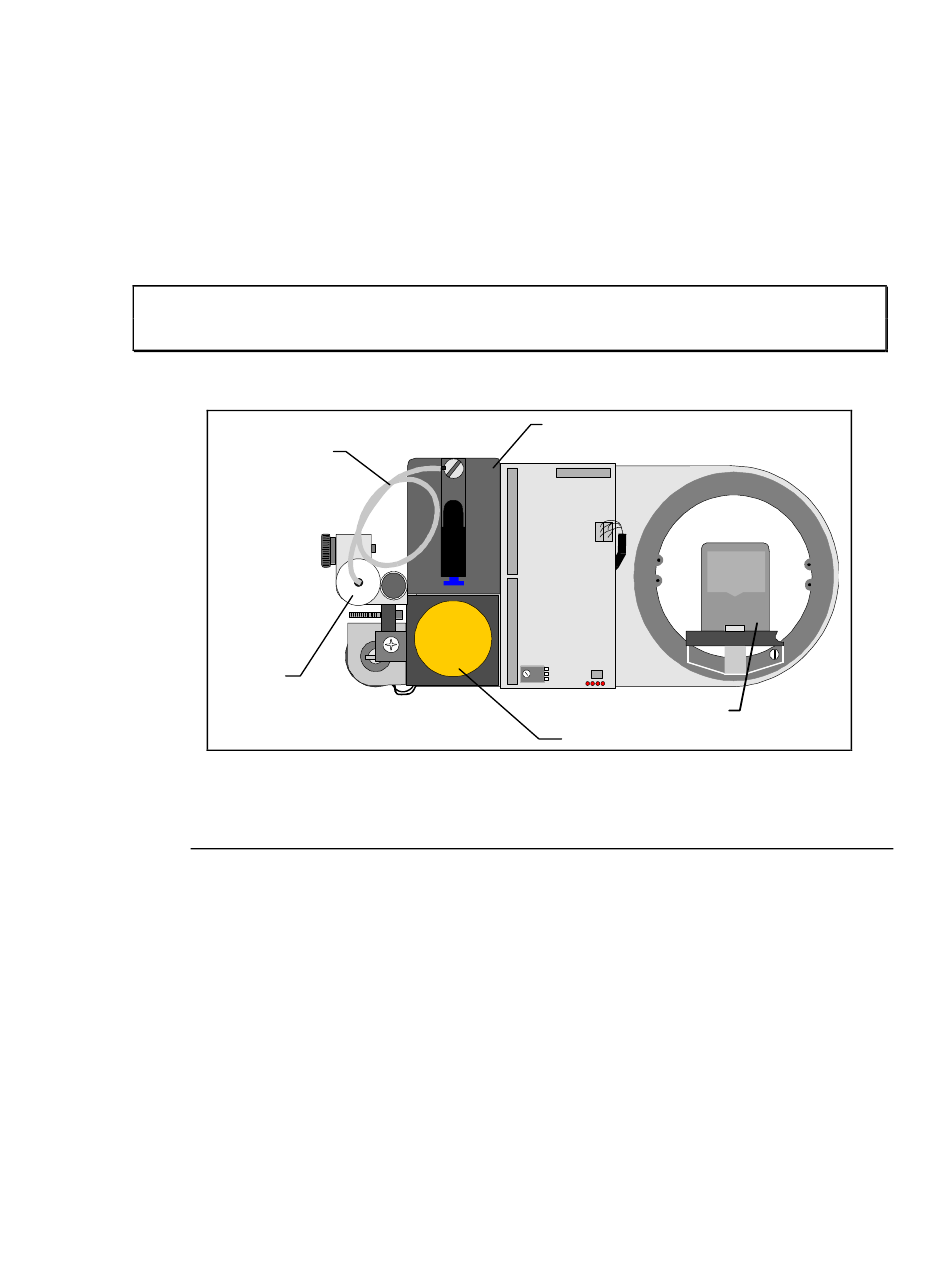

Figure 5-1 AJ-520 Longlife Pen Assembly

T
O REPLACE THE
1. Turn Servo Power off.
2. Open a sliding cover so that you can reach the carriage.
3. Loosen the pen cartridge clamping screw and lift the old pen out of
the pen holder. Discard the old pen.
4. Insert the new pen into the pen holder and tighten the pen cartridge
clamping screw.
5. Close the sliding cover to begin plotting.
Plotter Pen Maintenance
AJ-520 L
ONGLIFE PEN
.
ink reservoir
inkjet cartridge
fill cap
5-15
