AccuPlot and AccuJet Maintenance
5. Insert the supply roll bar into the new supply roll.
6. Install the plastic end-plate on the far end of the supply roll bar:
•
•
7. Reinstall the supply roll:
•
•
•
8. Feed the edge of the paper up and across the surface of the table to
the opposite side of the plotter and over the drive roller. Lower the
grippers to secure the paper in the machine.

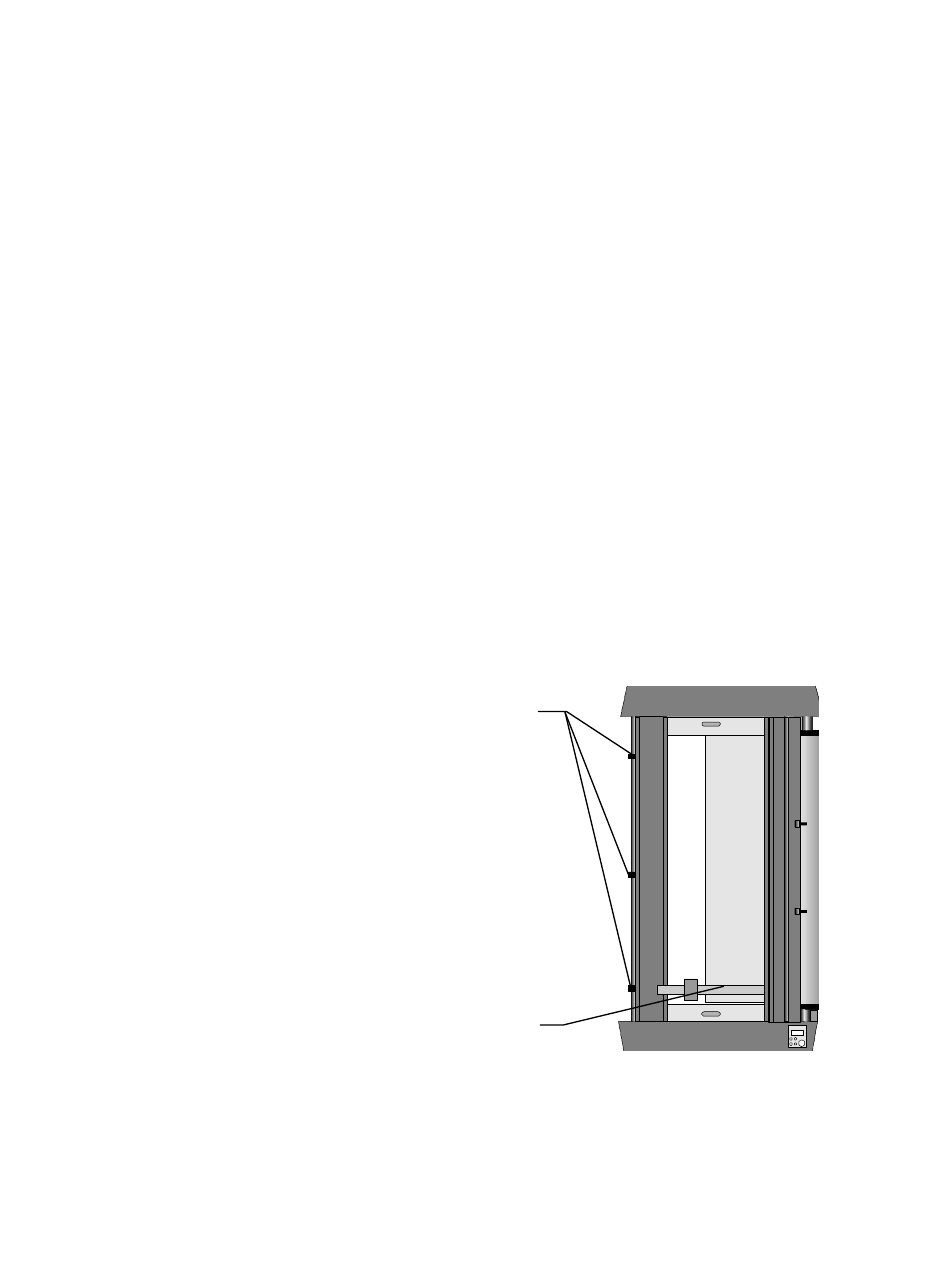

Align the edge of the paper
with the beam to make sure
the paper is feeding straight.
Loading Plotter Paper
Make sure that the knurled hub on each end-plate is wedged
firmly inside the cardboard roll (this prevents the roll from
spinning on the roll bar).
Tighten the end-plate holding clamp screw with the 1/4 inch
hex wrench.
Lift the supply roll bar up, and insert the right end of the supply
roll bar into the spring-loaded hub.
Shift the bar toward the right until your helper can insert the left
end into the near (drive hub) end.
Rotate the supply roll bar until it engages with the drive hub.
Lift the paper grips and
pass the paper under
them.
5-5
