AccuPlot and AccuJet Maintenance
9. Install the dancer bar:
•
•
•
•
10. Adjust the tension on the dancer bar:
•
5-6
Rotate the supply roll to create a pocket of paper between the
supply roll and the plotter table.
Lay the dancer bar in the pocket across the width of the paper.
Rotate the supply roll to lower the dancer bar (in the pocket)
until it lines up with the holders at both ends of the bar.
Connect one side of the dancer bar by inserting the pin at the
end of the bar into the hole in the end of the holder. Repeat to
connect the other side of the dancer bar.
Lower the dancer bar until the paper loses tension, then bring
the paper back until the slack disappears.

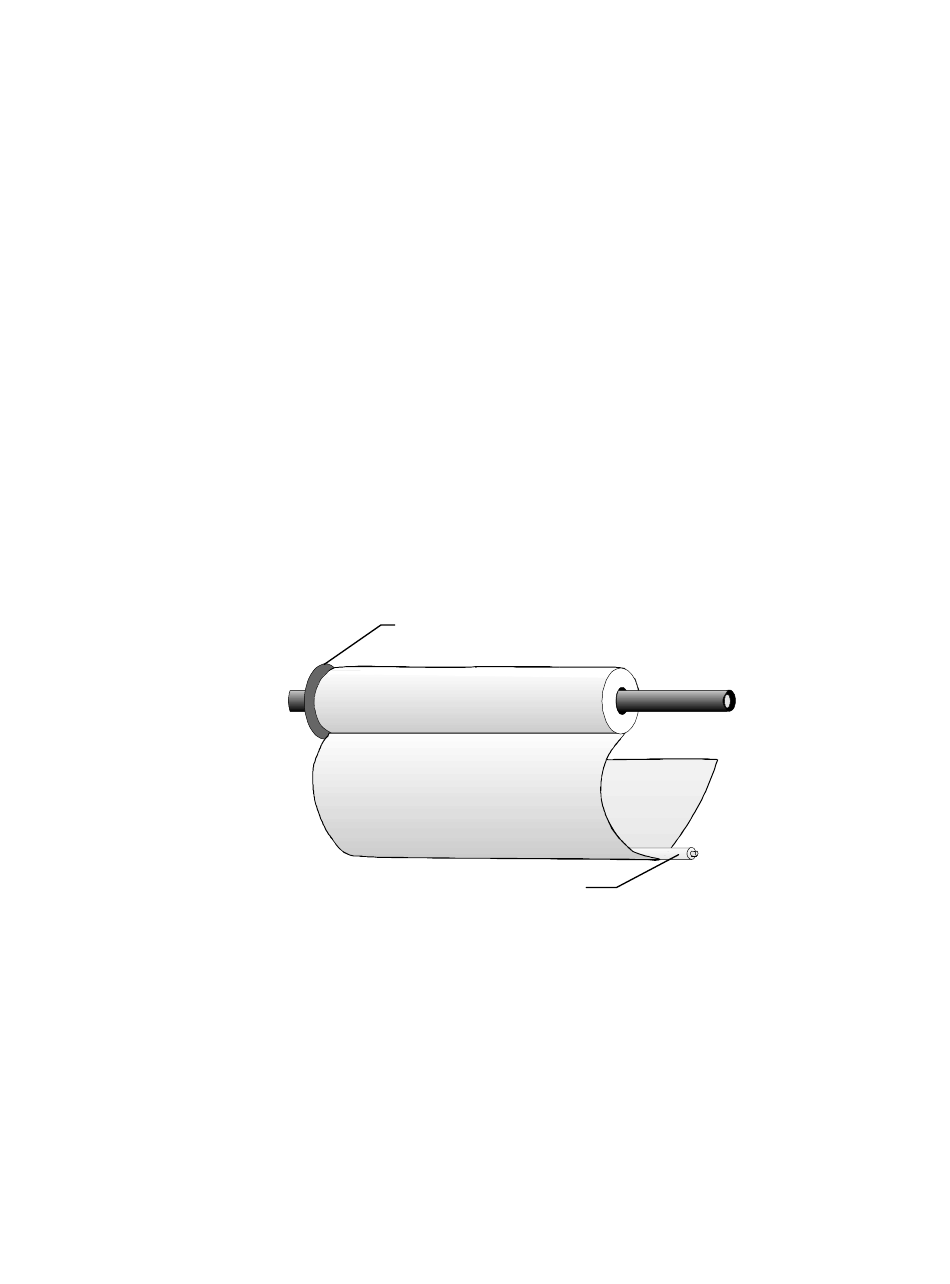

Stationary End Plate
Dancer Bar
Loading Plotter Paper
