AccuPlot and AccuJet Maintenance
T L A N
O OAD
11. Facing the left side of the plotter, grasp the take-up roll and shift it to
your left. This depresses the spring-loaded hub at the far end of the
plotter and frees the near end of the paper roll bar.
12. Remove the take-up roll and paper roll bar from the plotter. Remove
the paper roll bar from the take-up roll.

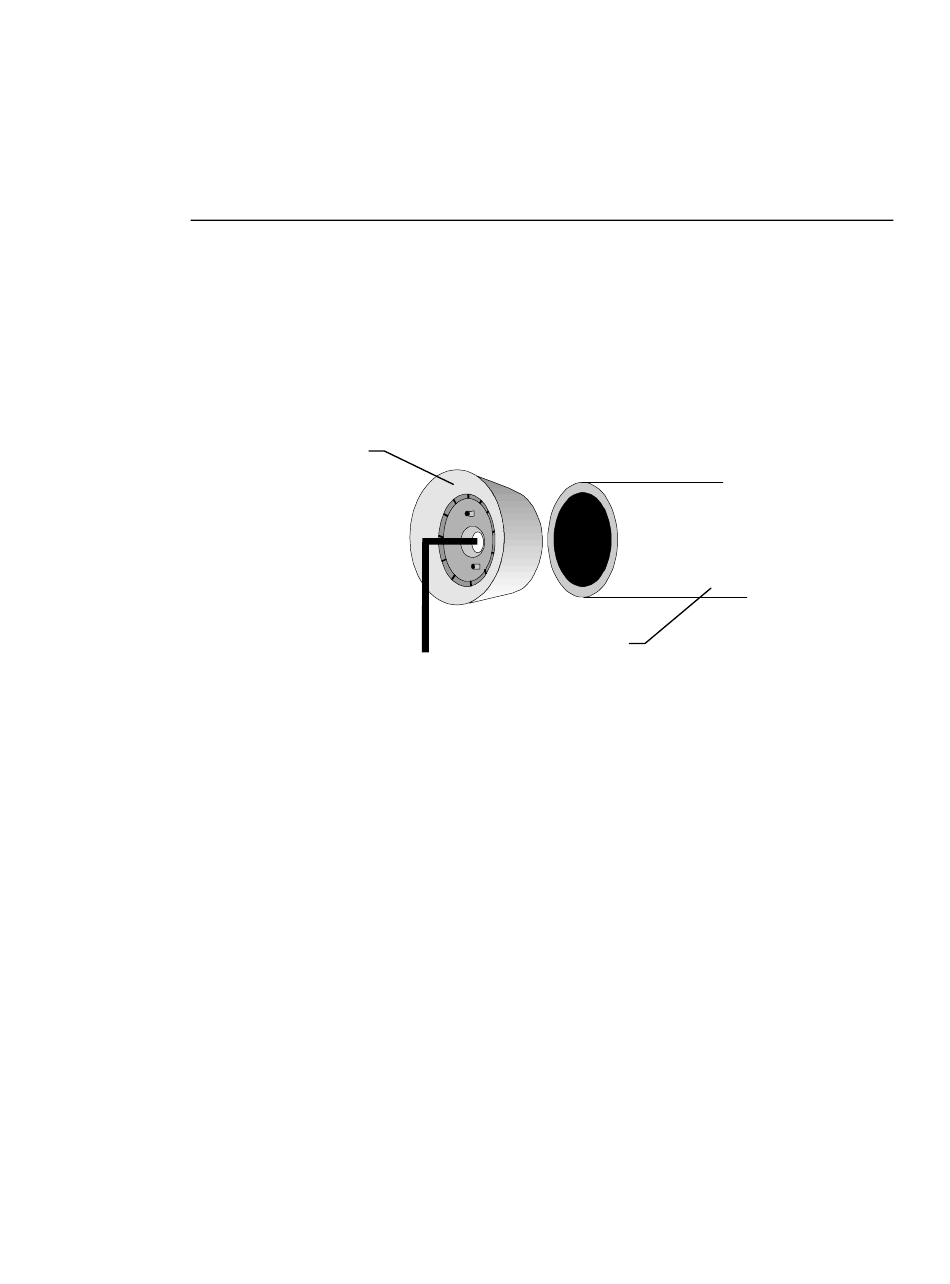

13. Use the hex wrench to loosen the drive plug in the near end of the
roll. Remove the plug and set it aside.
Drive Plug
14. Put the take-up drive plug into the end of the empty cardboard tube
and insert the roll bar.
15. Install the new take-up roll assembly on the left side of the plotter by
pressing the far end (the end without the drive plug assembly) against
the spring-loaded hub at the far end of the plotter.
16. Raise the near end of the paper roll bar until it slips in to the near end
hub.
17. Rotate the paper roll bar until the drive plug assembly (with two pins)
engages with the drive hub (with four pins).
Loading Plotter Paper
AP-100/AP-300 T
EW
Empty Supply Roll
- R
AKE UP OLL
5-11
