AccuPlot and AccuJet Maintenance

Loading Paper on the AP-100/AP-300

Loading paper requires that you load the new supply roll, load the new take-
up roll, and feed the paper through the paper path.
WARNING: F
AILURE TO DISABLE SERVO POWER BEFORE PUTTING YOUR HANDS IN
OR NEAR THE PLOTTING AREA COULD RESULT IN INJURY
T
O LOAD A NEW
1. Verify that the servos are disabled.
2. Remove the empty paper supply roll:
•
•

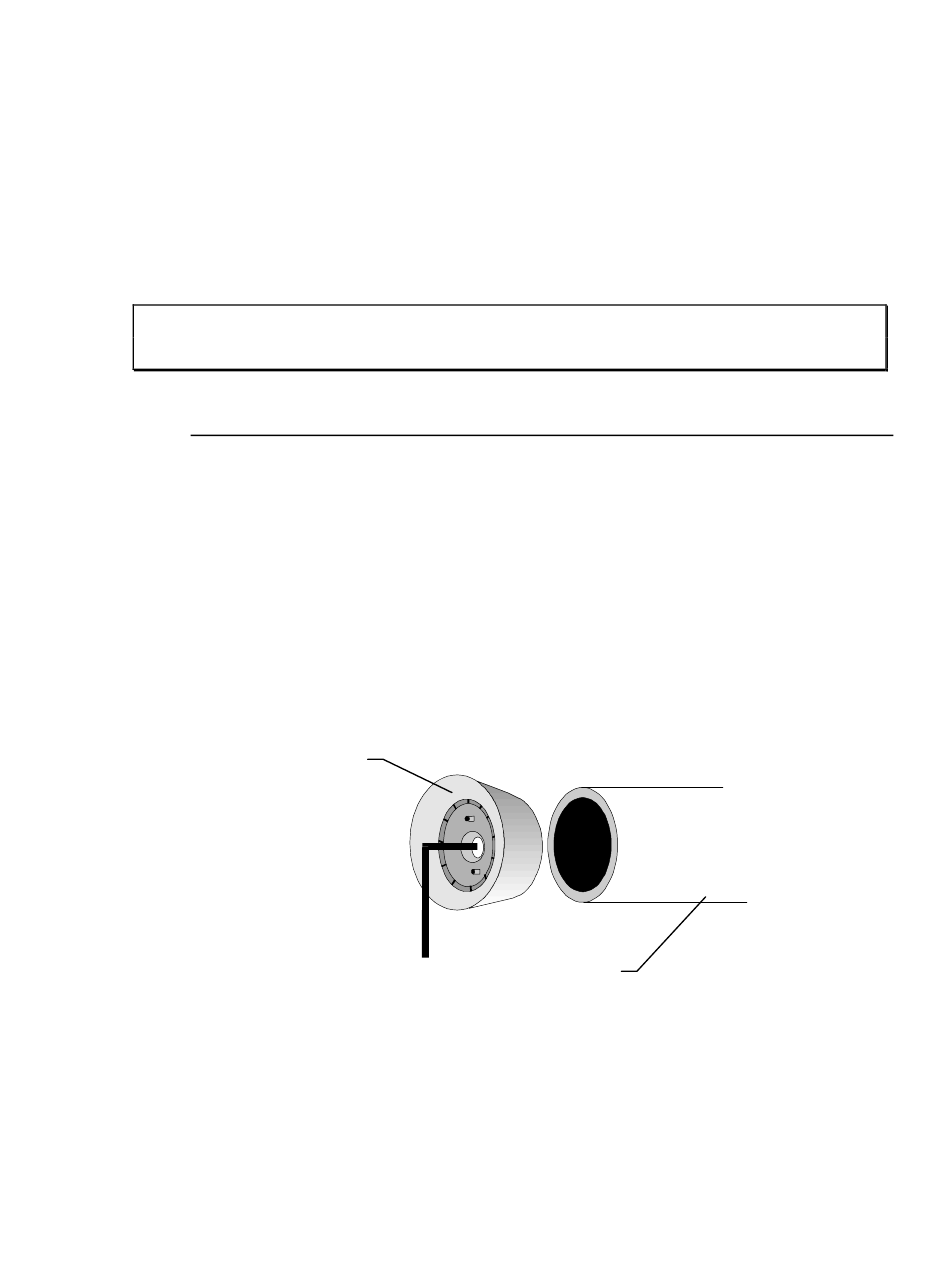

3. Use the hex wrench to loosen the drive plug in the near end of the
roll. Remove the plug and set it aside.
Drive Plug
The empty roll can be used as your new take-up roll.
4. Position the new paper supply roll so that it can be mounted on the
right side of the plotter and unrolled counterclockwise. (The paper
should pass over the roll.) Remove any shipping inserts from the ends
of the new roll.
Loading Plotter Paper
A P 100/300
CCU LOT
Facing the right side of the plotter, grasp the empty supply roll
and shift it to your right. This depresses the spring-loaded hub at
the far end of the plotter and frees the closer end of the paper
roll bar from the drive hub.
Lift the bar away from the plotter and lay it on the floor. Remove
the empty supply paper roll.
Empty Supply Roll
SUPPLY ROLL
.
5-9
