Offline Operation
Display Diagnostics
The Display Diagnostic test lights each pixel in the control panel display
window.
In this test, each pixel is represented by a small rectangular box. During the
test, all the pixels in the window illuminate for approximately five seconds.
T D
O RUN THE
1. From page three of the Offline menu, press F2-Diagnostics to display page
one of the Diagnostics menu.

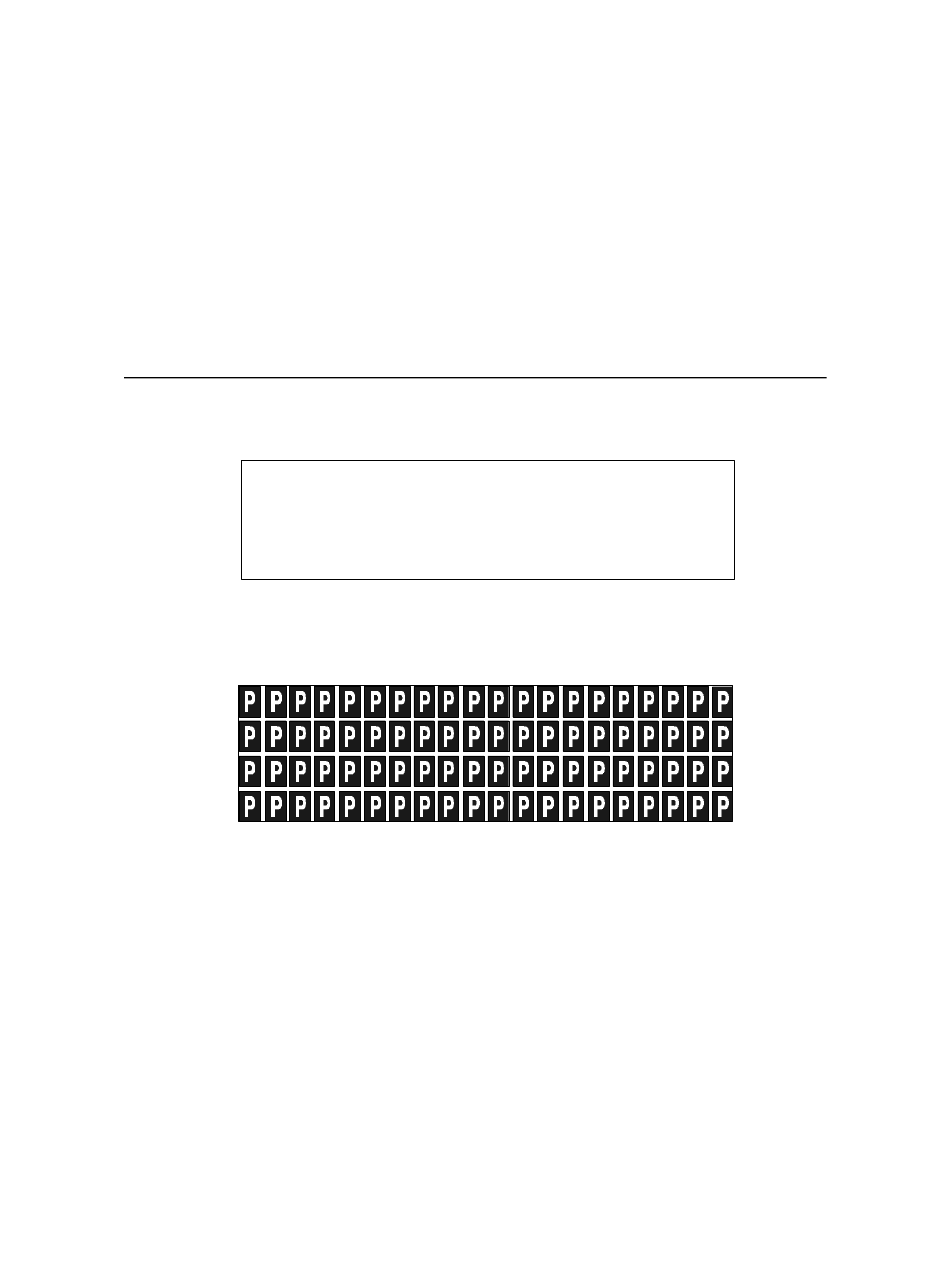

2. Press F2-Display Diag. The control panel test screen (similar to the
illustration below) displays for approximately 5 seconds. All the boxes
should be lit.
The screen automatically returns to the Diagnostics menu at the end of
the test.
4-32
D
ISPLAY IAG TEST
DIAGNOSTICS. . .
DIAG PLOTS
DISPLAY DIAG
SERVICE
EXIT
Diagnostic Tests
