Chapter 3: Configuring the 2085-IT8-SC/IT-16-SC Using CCW

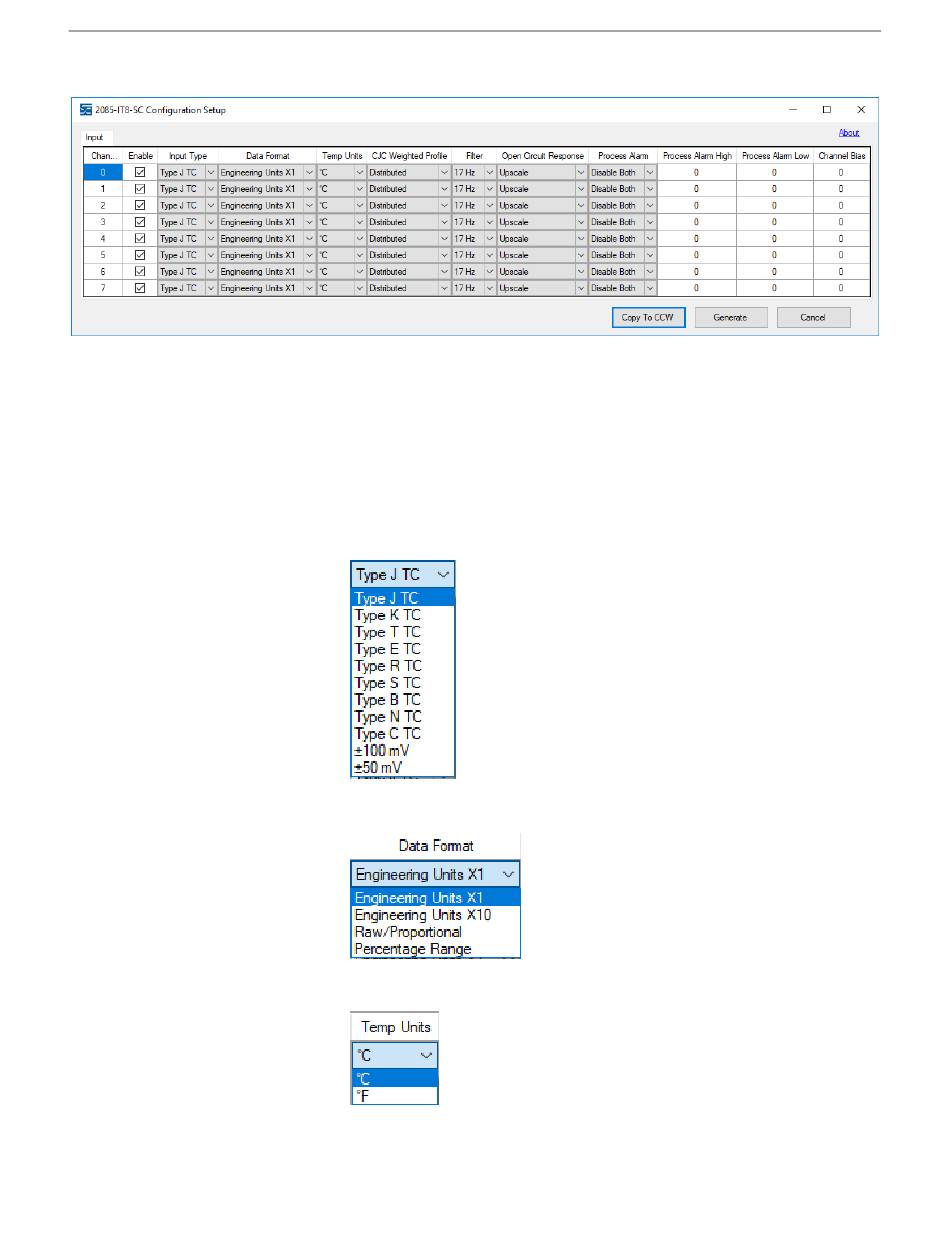

The 2085-IT8-SC Configuration Setup dialog appears:
5. View and specify the following options as needed. See Channel
Configuration Bit locations listed later in this section for details on the
settings for every configuration bit:
Chan. Lists number of input channel from 0 to 7 (or 0 to 15 for
IT16).
Enable. Specifies whether to enable use of this channel. Enabled by
default (checkbox enabled).
Input Type. Specifies which input type to use.
Select type from drop-down list. Type J TC input is default:
Data Format. Specifies which data format to use for reporting input
values. Default is Engineering Units X1:
Temp Units. Specifies the temperature units the module reports in
Centigrade or Fahrenheit. Default is Centigrade:
