3-6
Chapter 3: Configuring the 2085-IT8-SC/IT-16-SC Using CCW
Section 3.3
CCW
Configuration
Tab
User's Manual Pub. 0300322-01 Rev. A

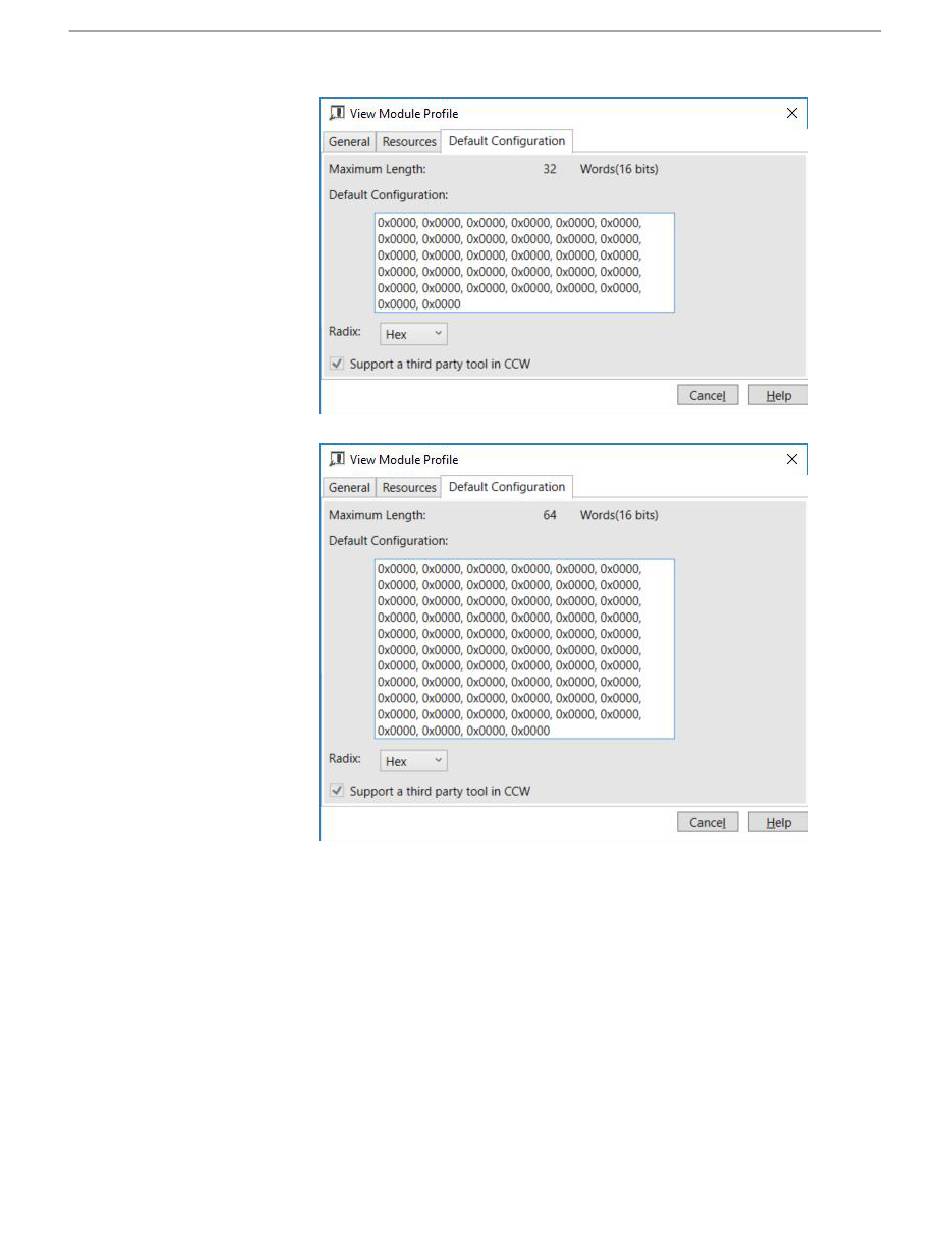

2085-IT8-SC:
2085-IT16-SC:
6.
The enabled checkbox shown on the bottom of the tab indicates that the
module AOP provides the service for launching the MCC utility to help
you configure your module. More information is described in Setting
Configuration Parameters Using MCC, later in this section.
Before you start, if needed, install the latest version of Rockwell Automation's
Connected Components Workbench (CCW) Standard Edition.
