Four-wire digital Interface

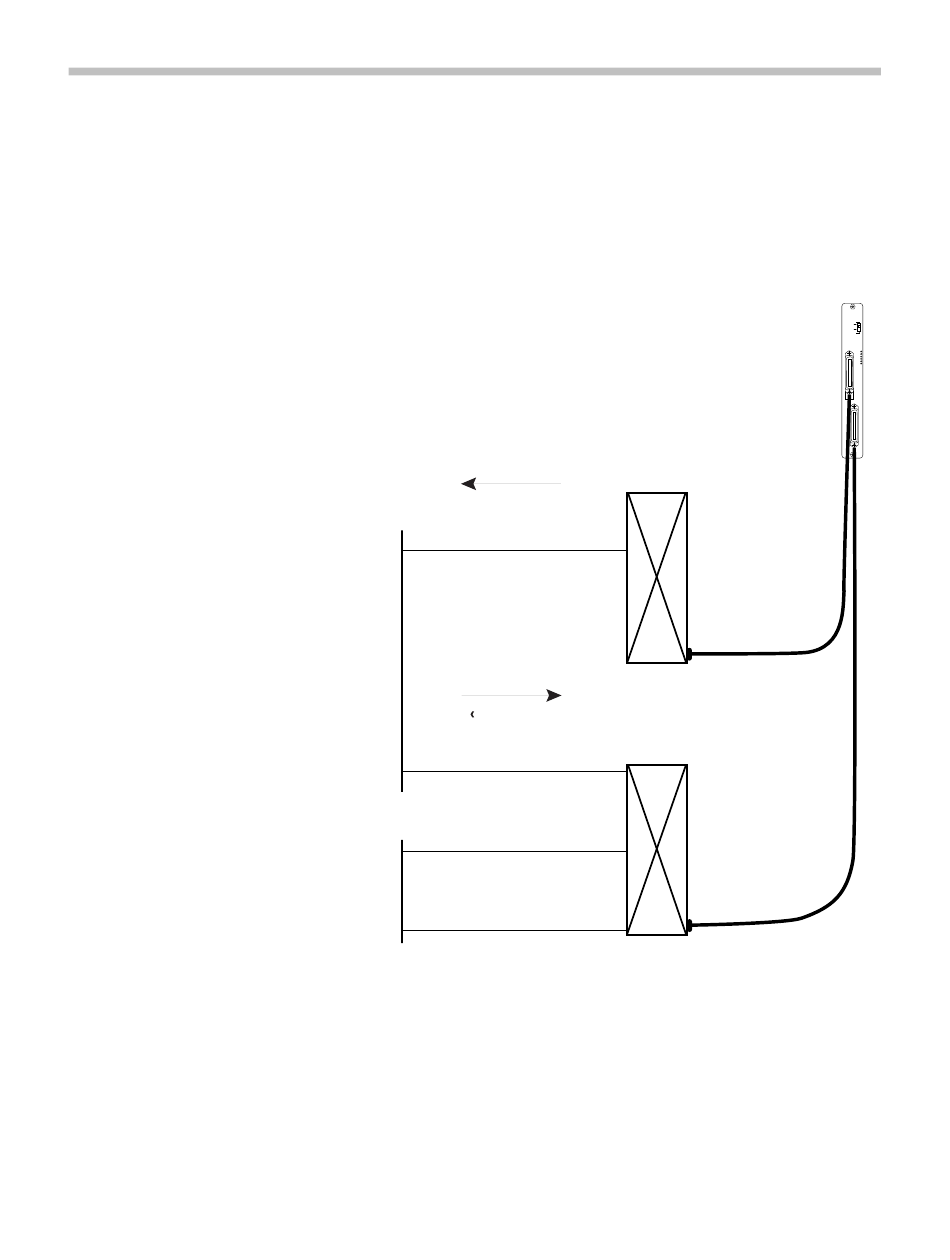

The wiring diagram below shows the connections required for a four-
wire digital interface (available in a future release). Each MCU of this
type requires two demarcation blocks which will be wired as
indicated.
Telephone Ports
Pair 17-25 Unused
To
PBX
Transmit (TX)
Telephone Ports
Pair 17 - Unused
Power Pairs 18-19
To
Base Stations
Data Pairs 20-23
Base Stn.1-4
Pair 24 & 25 Unused
Four-wire Digital Connection
Receive (RX)
To PBX
Pair 1-16
From PBX
Pair 1-16
Base Stn. 1-4
B
