Polycom SpectraLink 6000 System Facility Preparation page 21

To
PBX
To
Base Stations
PN: 1725-36096-001_J.doc
Multiple power pairs
Some sites may prefer to wire Base Stations to a separate demarc
block in order to split out power pairs.
Dedicated line for diagnostic modem
The SpectraLink 6100 MCU can be accessed remotely using an
internal modem. To use the modem for remote access, a dedicated
dial-in line must be provided. On digital interface systems, this line
must be terminated as a digital extension to the MCU.

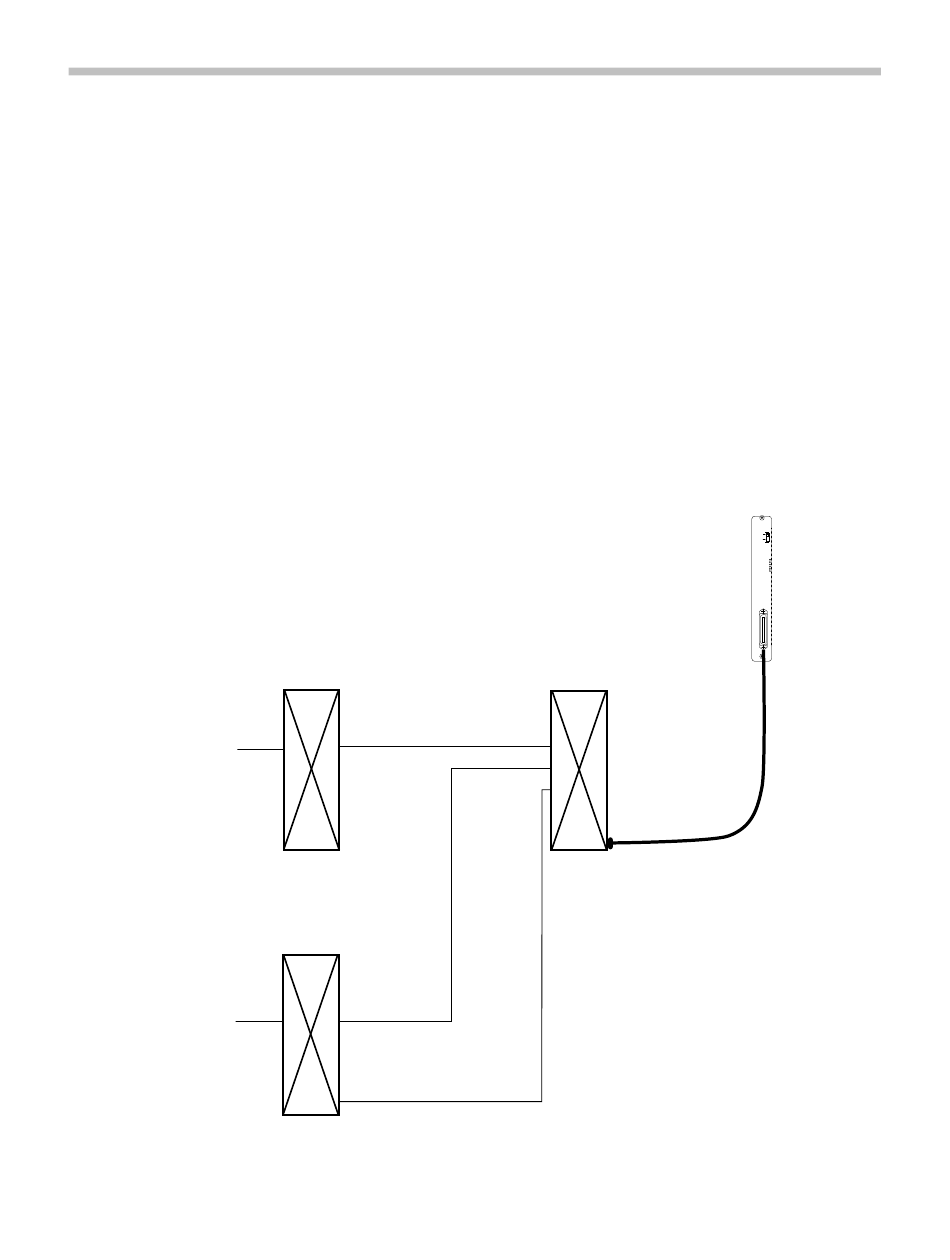

Two-wire analog or digital interface
The wiring diagram below shows the connections required for a two-
wire analog or digital interface.
Telephone Ports
Pair 1-16
Pair 17 Unused
Power Pairs
Base Stn. 1-4
Data Pairs
Base Stn. 1-4
Two-wire Analog or Digital Connection
Pair
18-19
Data Pair
20-23
Pair 24 & 25
Unused
Run Cable for System
A
21
