Polycom VVX EM50 Documentation

Hide thumbs

Advertisement

Table of Contents

Polycom Documentation
Copyright © 2019, Polycom, Inc. All rights reserved. No part of this document may be reproduced, translated into
another language or format, or transmitted in any form or by any means, electronic or mechanical, for any purpose,
without the express written permission of Polycom, Inc
6001 America Center Drive
San Jose, CA 95002
USA
Printed from Polycom, Inc. (http://documents.polycom.com)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VVX EM50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Polycom VVX EM50

Summary of Contents for Polycom VVX EM50

  • Page 1 Polycom Documentation Copyright © 2019, Polycom, Inc. All rights reserved. No part of this document may be reproduced, translated into another language or format, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Polycom, Inc...

  • Page 2: Table Of Contents

    1. Polycom VVX EM50 Expansion Modules....... . 3 VVX EM50 Expansion Module Hardware Features......4 Connect a VVX EM50 Expansion Module.

  • Page 3: Polycom Vvx Em50 Expansion Modules

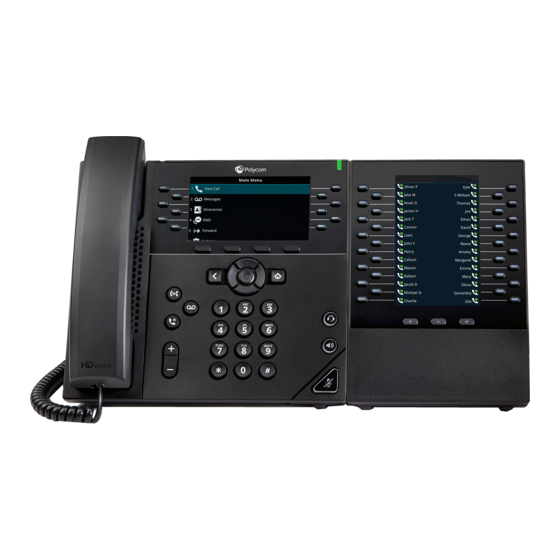

    Polycom VVX EM50 Expansion Modules The Polycom VVX EM50 expansion module is a console supported on VVX 450 business IP phones and enables you to add additional lines to your phone. Expansion modules enable you to handle large call volumes on a daily basis and expand the functions of your phone.

  • Page 4: Vvx Em50 Expansion Module Hardware Features

    Support for up to two expansion modules connected to a VVX 450 business IP phone to support an additional 180 line keys per phone. The following figure illustrates the features, components, and keys available on the VVX EM50 expansion module. The table lists each numbered feature shown below.
  • Page 5 • Flashing Red—Indicates a held call. • Flashing Green and Red—Indicates the phone of a monitored busy lamp field contact is on an active call or is receiving an incoming call. Printed from Polycom, Inc. (http://documents.polycom.com) Page 5...

  • Page 6: Connect A Vvx Em50 Expansion Module

    Procedure 1 Power off the VVX 450 business IP phone. 2 Insert the USB plug on the VVX EM50 expansion module into the side USB port on the VVX 450. 3 Lay the connected phone and expansion module face-down on the table.

  • Page 7: Connect An Additional Vvx Em50 Expansion Module

    Polycom VVX EM50 Expansion Modules Connect an Additional VVX EM50 Expansion Module You can connect up to two VVX EM50 expansion modules to a VVX 450 business IP phone. Note When you connect expansion modules to a VVX 450 phone, you can connect additional USB devices to the rear port of the phone and the side port on the second connected expansion module.

  • Page 8: Related Topics

    3 Remove the screw from the left side of the connected expansion module, as shown. 4 Insert the USB plug on the second VVX EM50 expansion module into the side USB port on the first connected expansion module. 5 Using the screw you removed from the first expansion module, use a screwdriver and the screw to secure the second expansion module to the first, as shown.

  • Page 9: Assigning Contacts And Favorites To Vvx Em50 Expansion Modules

    1 Press and hold an available line key on your expansion module. 2 From the Add Contact screen, enter the contact's information, including a unique favorite index, and select Save. Related Topics Assigning Contacts and Favorites to VVX EM50 Expansion Modules Printed from Polycom, Inc. (http://documents.polycom.com) Page 9...

  • Page 10: Identify Line Key Assignments

    Assigning Contacts and Favorites to VVX EM50 Expansion Modules Navigate Expansion Module Paging The Polycom expansion modules with color displays support three pages of line information on the LCD screen for each module connected to a supported VVX phone. Each page of the expansion module contains line registrations, monitored contacts, contacts' presence, or favorites assigned to line keys.
  • Page 11 As shown in the next figure, the pages display on the two expansion modules in the following order: ◦ Pages 1, 3, and 4 display on the first expansion module. ◦ Pages 2, 5, and 6 display on the second expansion module. Printed from Polycom, Inc. (http://documents.polycom.com) Page 11...

  • Page 12: Alternate Paging

    When you change the backlight intensity settings on your VVX phone, the backlight on your connected expansion module automatically changes to match the new settings. Related Topics Polycom VVX EM50 Expansion Modules Backlight Intensity and Timeout Printed from Polycom, Inc. (http://documents.polycom.com)
